6" GIDDINGS & LEWIS CNC TABLE TYPE HORIZONTAL BORING MILL
                Model 70-H6T, New 1970/1978 Stock# K13441



EQUIPPED WITH:

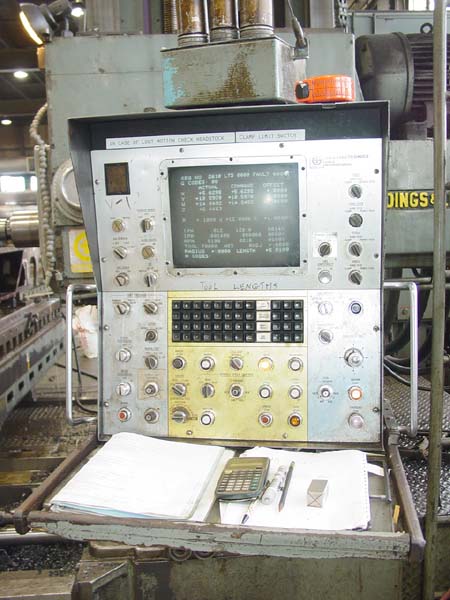

Machine was Retrofit by Giddings & Lewis in 1978 Giddings & Lewis 800P
CNC Control, Hard Ways, Ball Screws, 40 HP 50 Taper Spindle, (4) Outboard
Saddle Supports, Power Drawbolt, Coolant System.



CATALOGUE SPECIFICATIONS:



Spindle Diameter................................... 6"
Table Size......................................... 72" x 168"
Table Load Capacity................................ 80,000 lbs
Table Cross Travel (X-Axis)........................ 156"
Vertical Travel Above Std Machine Table (Y-Axis)... 120"
Spindle (Quill) Travel(Z-Axis)..................... 48"
Saddle Longitudinal Travel (W-Axis)................ 120"
Spindle Taper...................................... #50
Spindle Horsepower................................. 40 HP
Spindle Speeds .................................... 10 to 1020 RPM
Electrics.......................................... 460/3/60
Approximate Machine Dimensions..................... 281" x 226"
Approximate Machine Height......................... 218"



CONDITION:  This Machine Appears to be in Excellent Condition!
