INGERSOLL DOUBLE HOUSING VERTICAL PLANER MILLER
                    Model 55M, New 1976, Stock# K13446


EQUIPPED WITH:

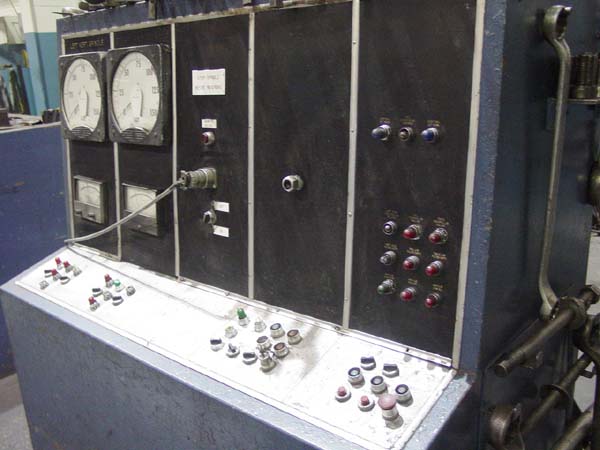

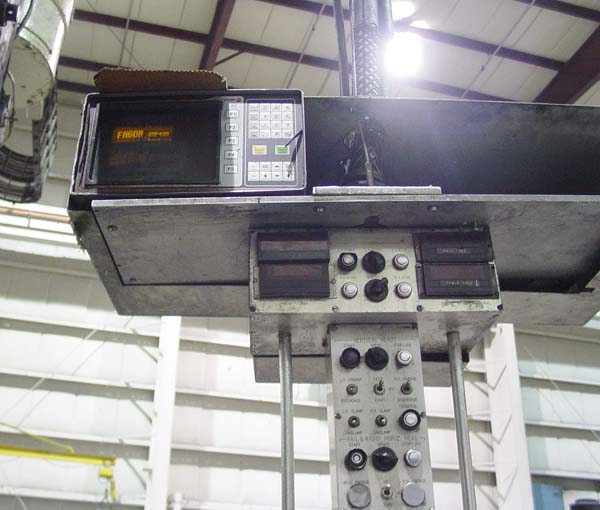

Fagor Digital Readout System, Full Pendent Control, (2) 150 HP

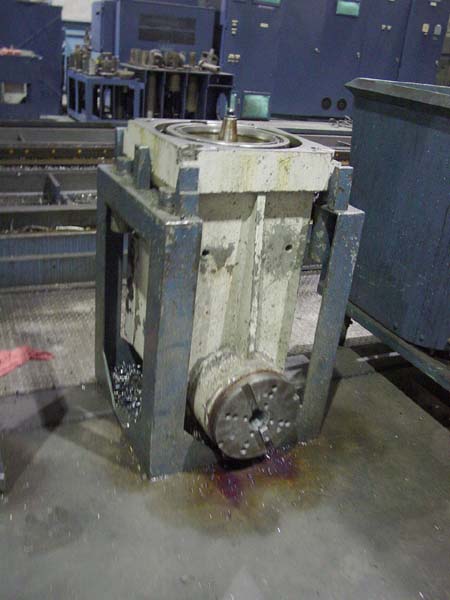

Milling Heads, Hard Ways, (1) Right Angle Head, (1) Extended Right
Angle Heads, Extended Spindle Attachment, (2) Vertical Skiving
Attachments, Split Table Design, Huge Amount of Tooling.



CATALOGUE SPECIFICATIONS:
Table Working Surface Overall......................... 744" x 178"
Table Surface Front Table............................. 420" x 178"
Table Surface Rear Table.............................. 324" x 178"
Table Load Capacity................................... 250,000 lbs
Longitudinal Travel (X-Axis).......................... 744"
Cross Travel (Y-Axis)................................. 216"
Vertical Travel Cross Rail (Z-Axis)................... 120"
Vertical Travel Quill (W-Axis)........................ 18"
Maximum Height Under Cross Rail...................... 137"
Distance Between Columns.............................. 198"
Spindle Horsepower(Each Head)......................... 150 HP
Spindle Speeds Range.................................. 4-600 RPM
Spindle Taper......................................... #60 Taper
Electrics............................................. 460/3/60
Machine Weight........................................ 1,127,000 lbs



CONDITION: Appears to be in Excellent Condition !
