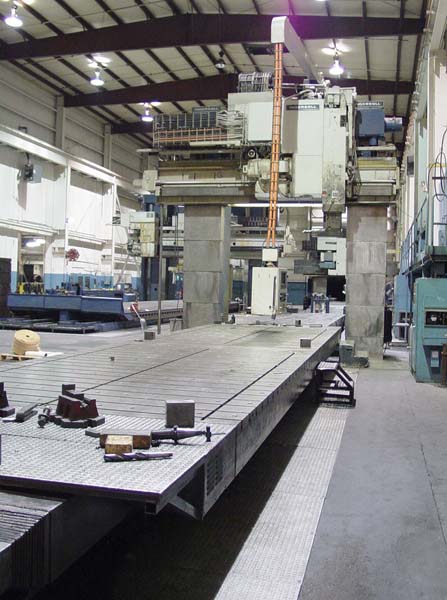

INGERSOLL CNC 5-SIDED VERTICAL BRIDGE MILL
                 Model 3.15M, New 1992, Retrofit 1997
                             Stock# K13448


EQUIPPED WITH:
Fanuc 15M CNC Control, Full Pendent Control, Hard Ways, (1) Extended
Right Angle Head, (1) Standard Reach Right Angle Head Attachment, Power
Indexing on the Heads every 90 Degrees, Split Table Design.



CATALOGUE SPECIFICATIONS:
Table Working Surface Overall......................... 360" x 114"
Table Surface Front Table............................. 180" x 114"
Table Surface Rear Table.............................. 180" x 114"
Table Load Capacity................................... 140,000 lbs
Longitudinal Travel (X-Axis).......................... 360"
Cross Travel (Y-Axis)................................. 157"
Vertical Travel Cross Rail (Z-Axis)................... 106"
Vertical Travel Quill (W-Axis)........................ 31.5"
Maximum Height Under Cross Rail....................... 120"
Distance Between Columns.............................. 124"
Spindle Horsepower(Each Head)......................... 125 HP
Spindle Speeds Range.................................. 6-800 RPM
Spindle Taper......................................... #50 Taper
Electrics............................................. 460/3/60
Approximate Machine Weight............................ 200,000 lbs



CONDITION: Appears to be in Excellent Condition !
