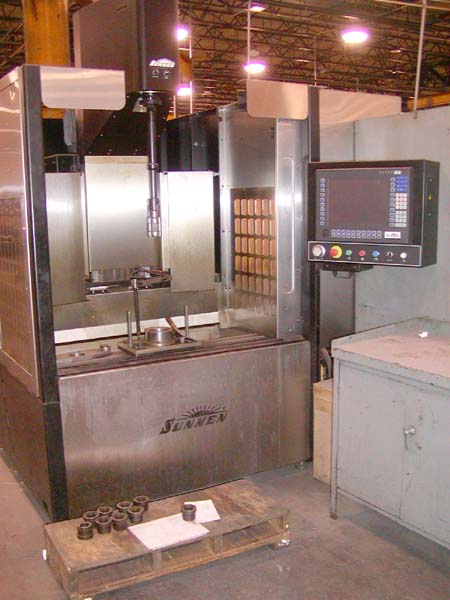

SUNNEN CNC VERTICAL HONE
Model
SV-210-E, New 2008
Stock# K13452
EQUIPPED
WITH:

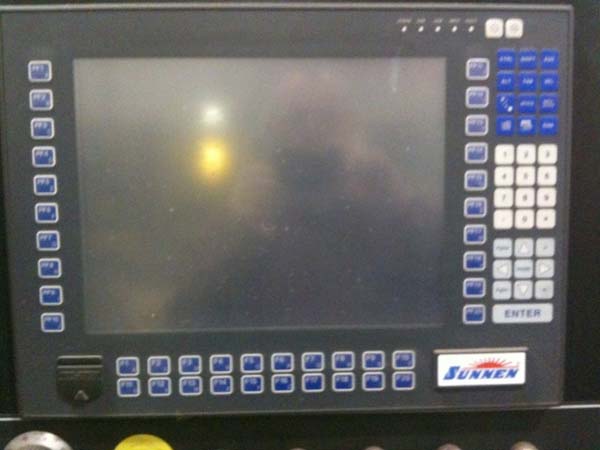

Sunnen CNC Control with Windows Based Control,
Multiple Part Program Storage, Adaptive Stroke Control, Sunnen
SVF-MP-50 Coolant System, Paper Bed Filter, Magnetic Separator,

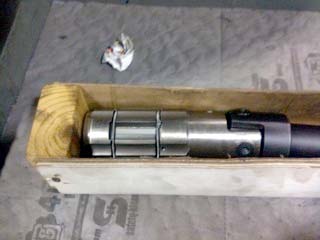

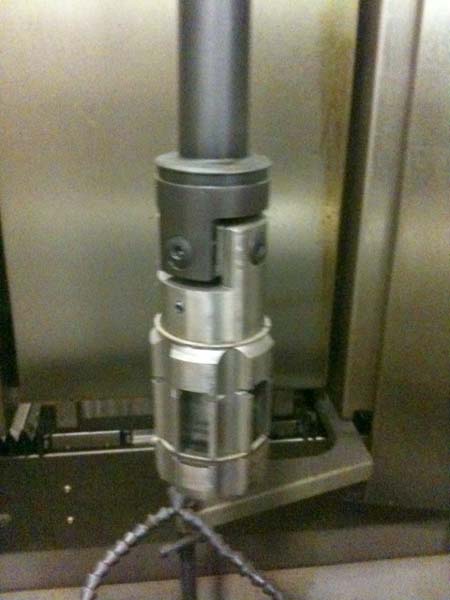

Tooling for 2.375" and 3" Bores, Fully Enclosed.
CATALOGUE SPECIFICATIONS:
Bore Diameter Capacity Min....................... .75"
Bore Diameter Capacity Max....................... 12"
Bore Length Capacity Max.......................... 27"
Spindle Horsepower..................................... 7.5 HP
Spindle Speed Range................................... 90-600 RPM
Carriage Speed Range................................. 40-160 Strokes
PM
Electrics..................................................... 460/3/60
Approximate Machine Dimensions................. 80"x 80"
Approximate Machine Height........................ 97"
Approximate Machine Weight......................... 5,000 LBS
CONDITION: Only 500 Hours of Operation.
Machine appears to be in Like New Condition !
