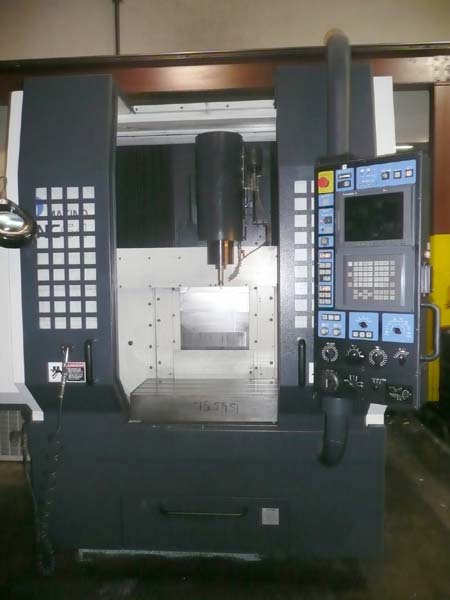

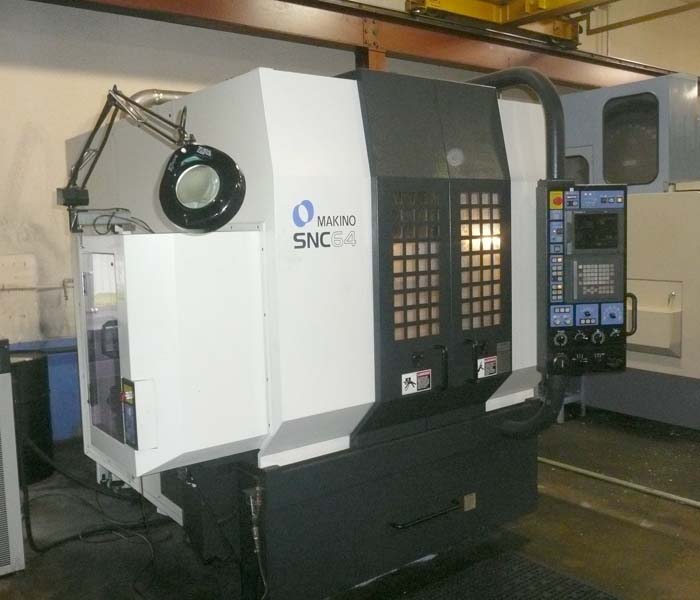

MAKINO SNC-64 CNC VERTICAL MACHINING CENTER

NEW 2000



EQUIPPED WITH:

Super GI from Makino

11 HSK 32E Tool Holders
Spindle Chiller
Graphite Extraction Unit



GENERAL SPECIFICATIONS:     METRIC                       ENGLISH



Table Size (metric type):........................................................... 750 x 400 mm                                   29.5" x 15.7"

X-Axis Travel, Programmable:................................................. 600 mm                                            23.6"

Y-Axis Travel, Programmable:................................................. 400 mm                                            15.7"

Z-Axis Travel, Programmable:................................................. 400 mm                                            15.7"

Type of Axis Drives.................................................................. AC Digital Servo Motors

Bed Construction Meehanite Cast Iron

Axis Design (Y & Z).................................................................. Linear Guide (#35 Guide Truck)

                (X)          ...................................................................... #30

Origin Position:

                X, Y and Z Axes......................................................... (+) End of Stroke

Origin Detection   ...................................................................... Grid Detecting System

Linear Positioning Accuracy - (with proper foundation and environmental control):

                X, Y and Z-Axes Standard....................................... ? 0.003 mm                                      ? 0.000120"

                With Moir? Scales..................................................... ? 0.002 mm                                      ? 0.000080"

Repeatability:

                X, Y and Z-Axes Standard....................................... ? 0.002 mm                                      ? 0.000080"

                With Moir? Scales..................................................... ? 0.002 mm                                      ? 0.000080

SPINDLE:



Spindle has optional 30,000 rpm Spindle

Spindle Taper       HSK 32E



TABLE:



Type of Table       ...................................................................... Rectangular Type

Work Area on Table................................................................. 750 x 400 mm                                   29.5" x 15.8"

Table Load Capacity................................................................. 250kg                                               550 lbs.

Maximum Workpiece Size:

                Length of Workpiece................................................ 600 mm                                            23.6"

                Depth of Workpiece.................................................. 400 mm                                            15.7"

                Height of Workpiece................................................. 400 mm                                            15.7"

Table Top Configuration

                Size of T-Slot/Number............................................... 14H8 x 4

Height of Table Top from Floor.............................................. 900 mm                                            35.43 "



AUTOMATIC TOOL CHANGER:



Capacity:               Standard...................................................... 15 Tools



Tool Selection Method............................................................ Random Selection (fixed address method)

Tool Change Time:

               Tool-to-Tool............................................................... 15 seconds



SIZE OF MACHINE:



Machine Height:  ...................................................................... 2515 mm                                          99.0"



Size of Required Floor Space (W x D):

               SNC64GS..................................................................... 2350 x 3585 mm                              92.5" x 141.1"

Machine Weight:

               SNC64GS..................................................................... 4,500 kg                                           9,900 lbs.
