12" Troyke 4th Axis CNC rotary Table for sale

12" TROYKE CNC Rotary Table

Stock Number K14301

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

 Troyke 4th Axis CNC Rotary Table for sale

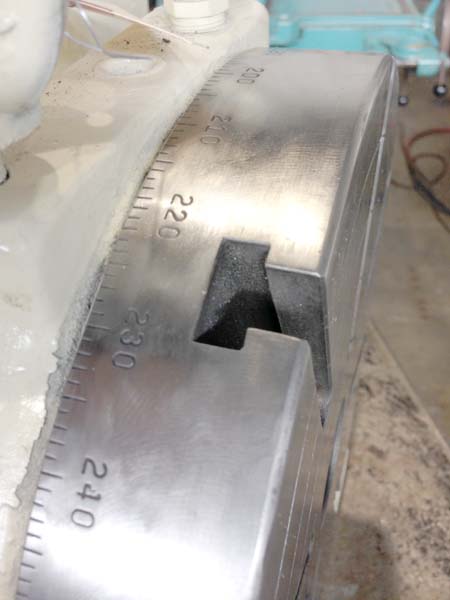

ACTUAL PHOTOS

          12" TROYKE HORIZ / VERT CNC ROTARY TABLE
                 Model: NC-12-B, New 1996, S/N 4291-1
                               Stock# K14301

TABLE DESCRIPTION:

This Horizontal or Vertical Mount CNC Rotary Table was Designed for
Full Contour Milling or Indexing of Parts. The Table is Driven by a
Kollmorgen Goldline Electric Servo Motor 1-604-0210 with Resolver Feed
Back. This Table is also equipped with an Internal Solenoid Actuated
Pneumatic Table Clamp. For Work Holding It has a 12" Round T-Slotted
Work Mounting Surface. Table was taken off a Cincinnati Arrow 1000 with
the Kollmorgen Drive Package. Will fit Most Other Machines with a Simple
Change of the servo Motor.

NOTE:  New Table Replacement Cost Is Over $17,000.

CATALOGUE SPECIFICATIONS:

Working Surface Diameter...................................... 12"
Table Diameter................................................ 12"
Maximum Recommended Weight Cap (Horizontal)................... 800 LBS
Maximum Recommended Weight Cap (Vertical ).................... 300 LBS
Distance Base to Center of Table (Vertical Mount)............. 8-1/2"
Distance Base to Top of Table (Horizontal Mount).............. 6-1/8"
Hole Thru Center of Table..................................... 2"
Table Graduations............................................. 1 Degree
Table Positions............................................... 360,000
Approximate Dimensions........................................ 16"x15"
Approximate Height............................................ 6-1/8"
Approximate Weight............................................ 240 LBS

CONDITION: Appears to be in Excellent Condition !
