DAEWOO PUMA 230MSB CNC TURNING CENTER
                     with LIVE TOOLING and SUB-SPINDLE
                  Model 230MSB, S/N 23150254, New 6/2001
                               Stock# K13485



EQUIPPED WITH:

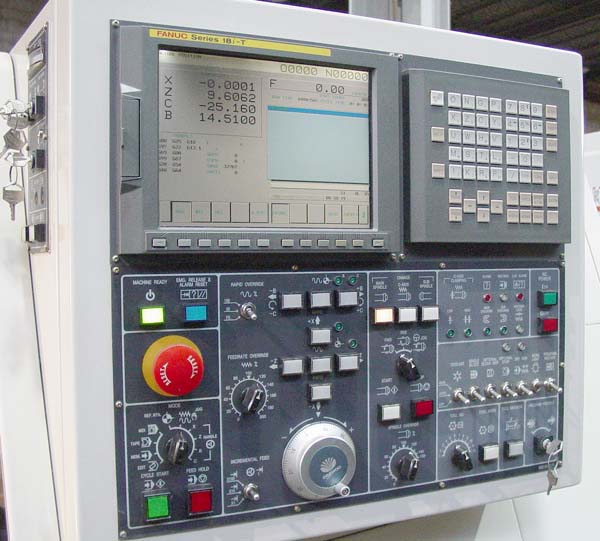

Fanuc 18i CNC Control, Multiple Part Program Storage, RS-232 Port,
Live Tooling, Full Contouring C-Axis Spindle, Sub-Spindle, ATS Low
Profile Collet Chuck with S26 Master Collet, 5" Kitagawa Chuck on
Sub-Spindle, Parts Catcher, Barfeed Interface, Sub-Spindle Part Ejector,
Rigid Tapping with Rotary Tools, Automatic Tool Setter, Chip Conveyor
and Coolant System.



*** Machine Includes a Nice Tooling Package that Includes 7 Live Tool
Holders.  Replacement cost of the Tooling is Over $ 20,000. **



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 21.65"
Max Turning Diameter.................................... 11.4"
Max Machining Length.................................... 19.37"
Standard Chuck Size..................................... 8"
Spindle Bore............................................ 2.99"
Bar Capacity............................................ 2.56"
Spindle Nose............................................ A2-6
Cross Travel (X-Axis)................................... 8.07"
Longitudinal Travel (Z-Axis)............................ 22.83"
Rapid Traverse Rate (X-Axis)............................ 945 IPM
Rapid Traverse Rate (Y-Axis)............................ 1200 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Nose............................................ A2-5
Spindle Speed Range..................................... 45-4500 RPM
Spindle Horsepower...................................... 20 HP
Sub-Spindle Speed Range................................. 60-6000 RPM
Sub-Spindle Horse Power................................. 7.5 HP
Milling Spindle Speed Range............................. 60-6000 RPM
Milling Spindle Horse Power............................. 5 HP
Approximate Machine Dimensions.......................... 170" x 74"
Approximate Machine Height.............................. 73"
Approximate Machine Weight.............................. 11,000 LBS



CONDITION: Machine Appears to be in Excellent Condition !
