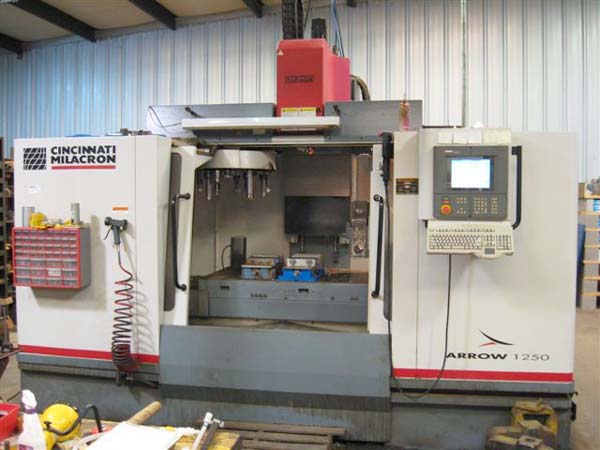

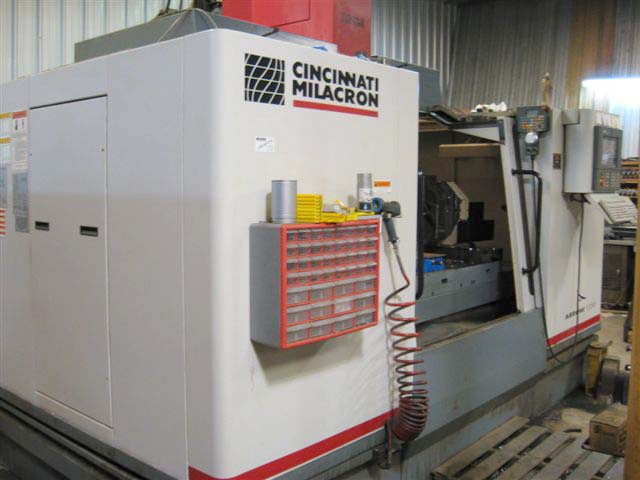

CINCINNATI ARROW 1250 CNC VERTICAL MACHINING CENTER
                                          Model Arrow 1250,  New 1998

EQUIPPED WITH:

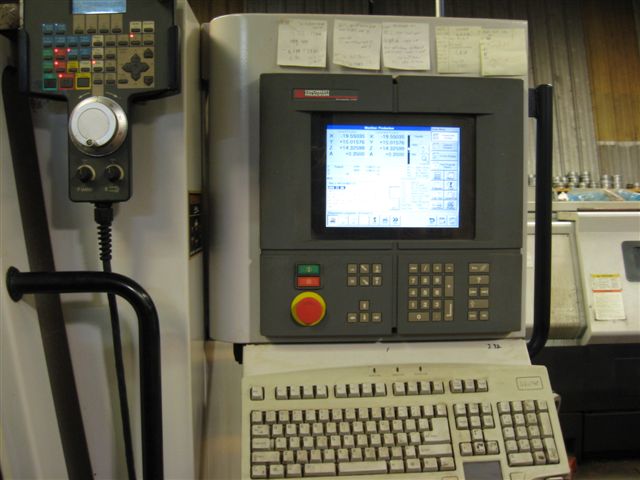

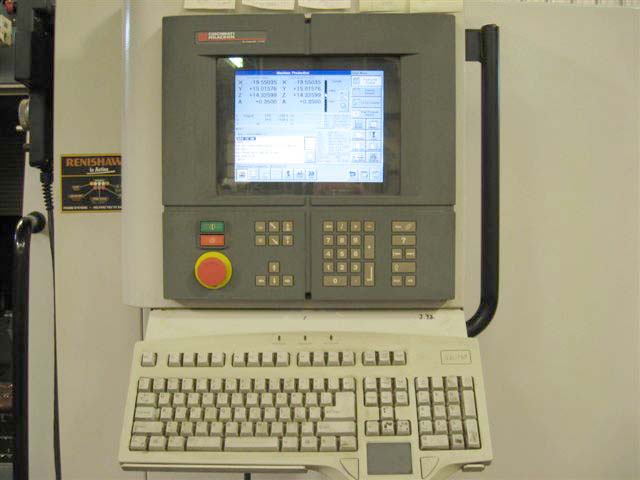

Acramatic 2100 PC Based CNC Control w/ Color CRT, Touch Screen
Programming, Multiple Part Program Storage, Migrating Tools, Fanuc Program
Translation, 3-1/2" Floppy Disk Drive, RS-232 Port,  Prewired for
Rotary Table, Tool Probe and Part Surface Probe, 21 Station Automatic Tool
Changer, Thru Spindle Coolant, High Torque Spindle Option with 5000 RPM,

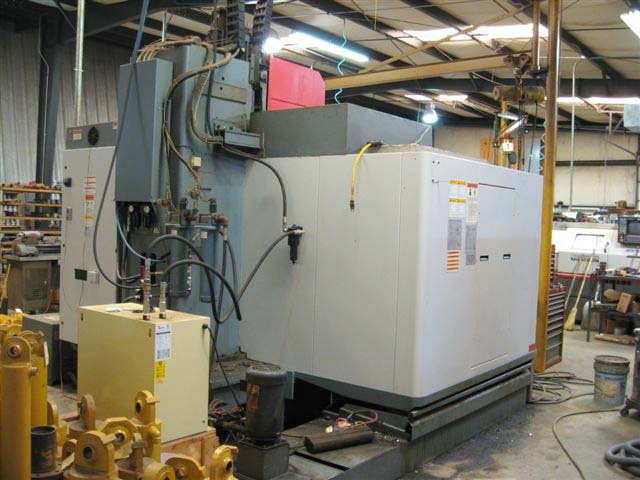

Full Coolant Enclosure, Chip and Coolant System.



CATALOGUE SPECIFICATIONS:



X Travel (Longitudinal)............................... 50"
Y Travel (Cross)......................................     30"
Z Travel (Vertical)...................................   30"

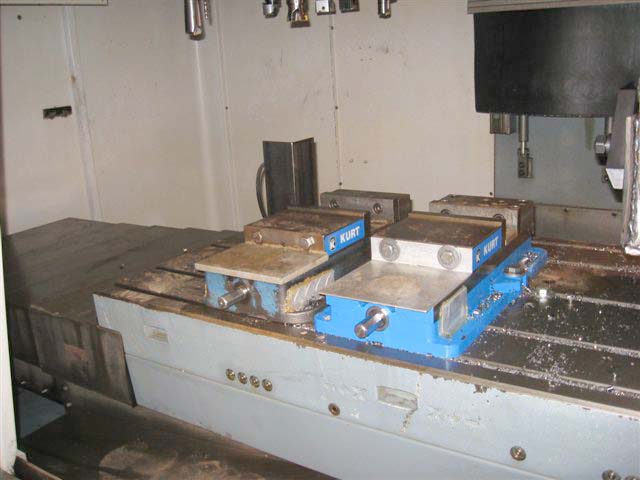

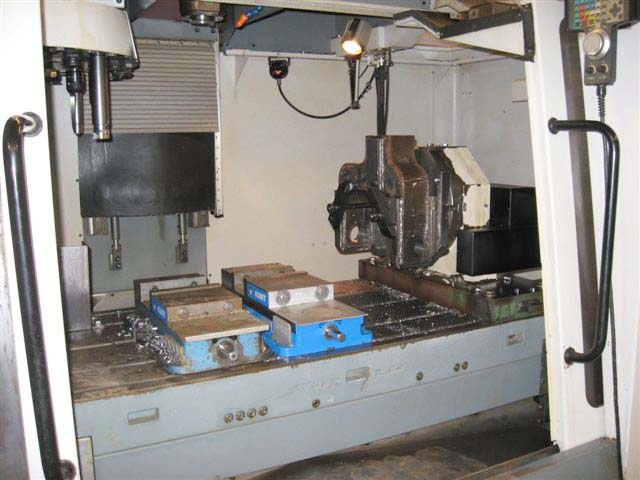

Table Working Surface................................. 60"x30"
Table Work Load Capacity.............................. 4410 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 50-5000 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 590 IPM
Feed Rate, Z.......................................... 0.1 to 590 IPM
Rapid Traverse X & Y.................................. 944 IPM
Rapid Traverse Z...................................... 945 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 145" x 112"
Approximate Height.................................... 142"
Approximate Weight.................................... 19,360 LBS



CONDITION: Machine appears to be in Excellent Condition !
