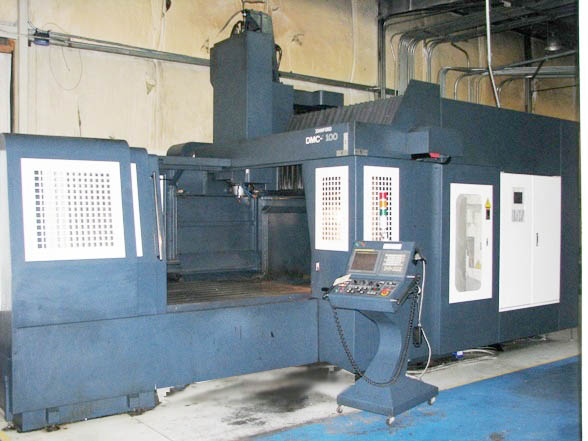

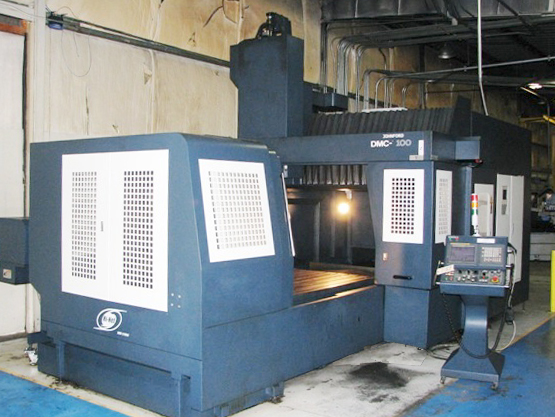

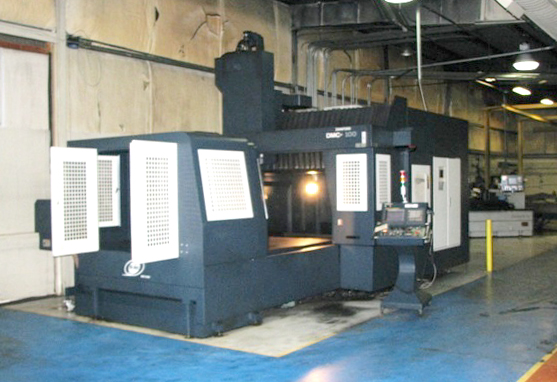

JOHNFORD DMC-2100 VERTICAL MACHINING CENTER
Model DMC 2100, New 2004
Stock # K13502
EQUIPPED WITH:

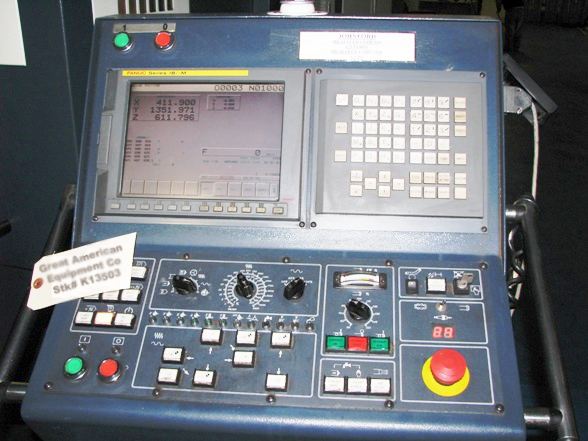

Fanuc 18iMB CNC with Fanuc High Precision Contour Cutting Option.
High Speed Look Ahead Machining, Fanuc Data Server Option, 24
Station
Automatic Tool Changer Spindle Chiller, High Pressure Coolant Thru
the
Spindle, Lift up Chip Conveyor, Chip Auger.
CATALOGUE SPECIFICATIONS:

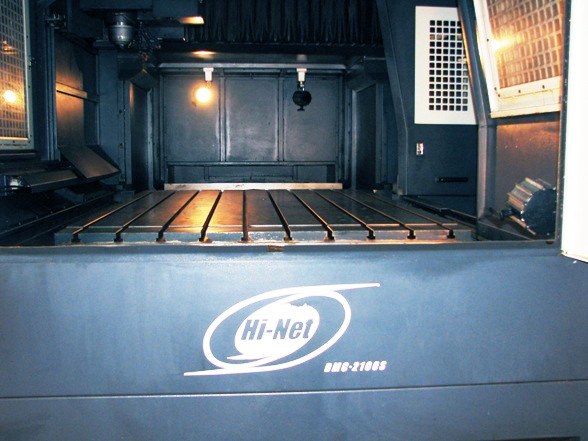

Table Size............................................ 59" x
86-1/2"
Table Load Capacity................................... 22,000 Lbs.
Longitudinal Travel (X-Axis).......................... 83"
Cross Travel (Y-Axis)................................. 70"
Vertical Travel (Z-Axis).............................. 42"
Rapid Traverse Rate (X & Y-Axes)...................... 472 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower (2-Speed Gearbox).................. 22 KW Cont.
Maximum Spindle Speed................................. 10000 RPM
Spindle Taper......................................... #40 CAT
Approximate Machine Weight............................ 33,000 LBS
CONDITION: Machine Has Only 700 Total Cutting Hours and Appears
to be
in Excellent Condition !
