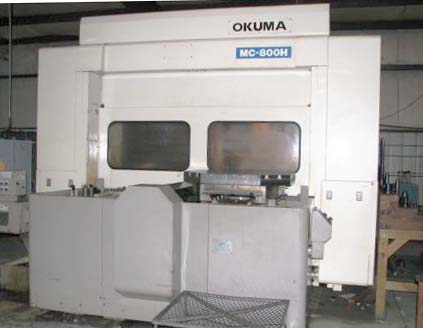

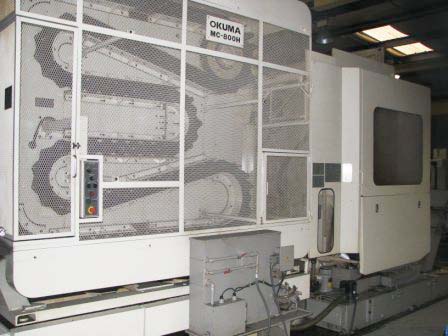

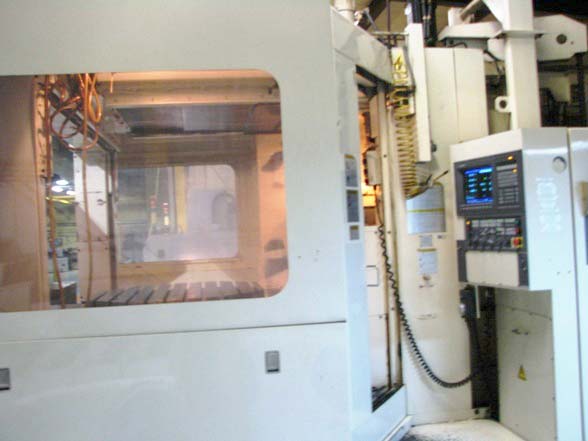

OKUMA MC-800H HORIZONTAL MACHINING CENTER
Model MC-800H, New 1999
EQUIPPED WITH:

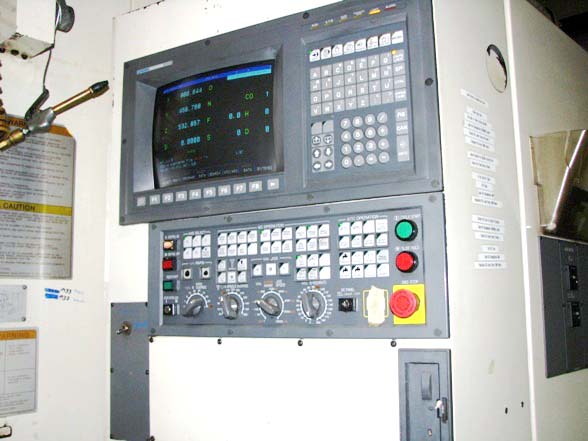

Okuma OSP 7000M CNC Control, Super Nurbs Type A Software Option,

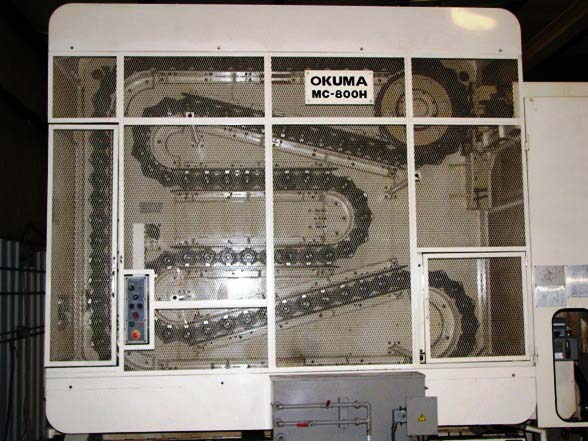

Torn Cut Function, I/O Variable, User Task II , 120 Station
Automatic Toolchanger, Thru the Spindle Coolant, (2) 31.5"

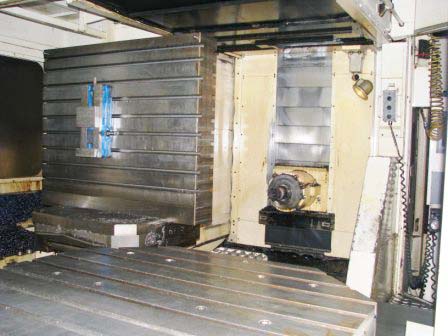

Pallets w/ 1 Degree Indexing, Lift Up Style Chip Conveyor,
CATALOGUE SPECIFICATIONS:
X Axis Travel...................................... 49.21"
Y Axis Travel...................................... 39.37"
Z Axis Travel...................................... 33.46"
B Axis Travel...................................... 360 Degrees
Spindle Center to Pallet........................... 1.97" to
41.34"
Spindle Nose to Pallet Center...................... 9.84" to
43.31"
Number of Pallets.................................. 2
Size of Pallets.................................... 31.5"x 31.5"
Load Capacity...................................... 3520 LBS
Rapid Traverse (X and Y Axes)...................... 787 IPM
Rapid Travers (Z Axis)............................. 709 IPM
Cutting Feed Rates (X,Y,Z)......................... 0.01 to 394
IPM

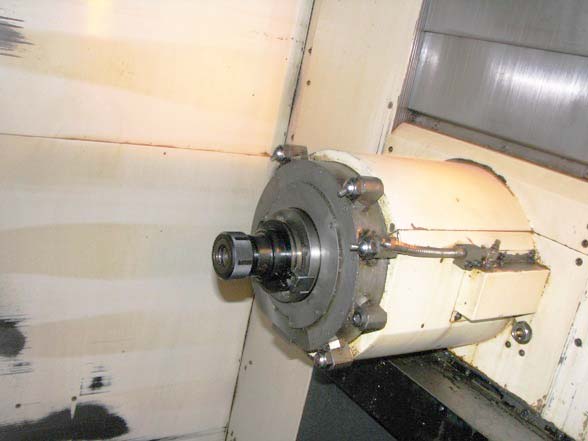

Spindle Motor...................................... 30 HP
Speed Range (Infinitely Variable).................. 10 to 4500
RPM
Spindle Taper...................................... 50
Tool Changer Capacity.............................. 120
Approximate Machine Dimensions..................... 164" x 2565"
Approximate Machine Height......................... 139"
Approximate Machine Weight......................... 50,600 Lbs.
CONDITION: Machine Has Less Than 6000 Cutting Hours on it and
Appears to be in Excellent Condition!!
