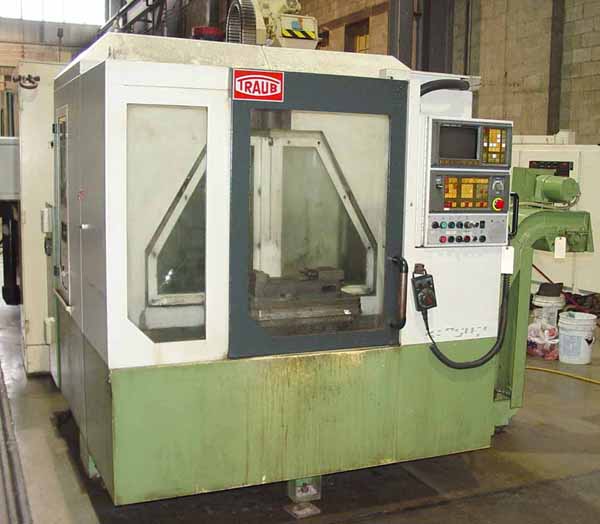

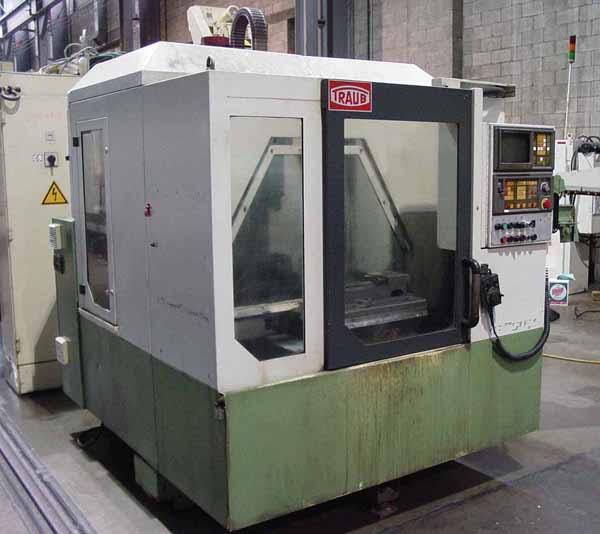

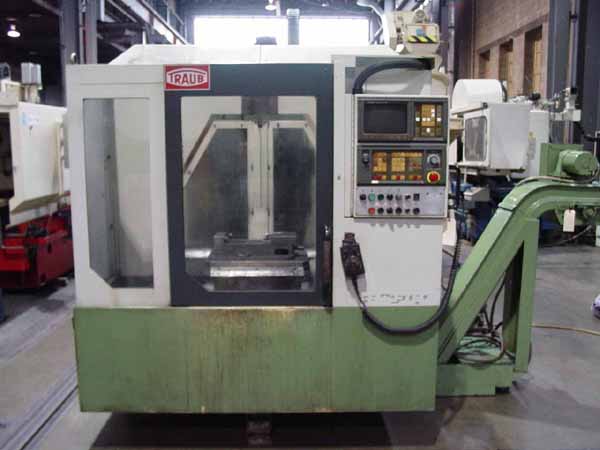

TRAUB TVC-200P 2-PALLET CNC VERTICAL MACHINING CENTER
              Model TVC-200P, S/N EG294B682, New 1994
                             Stock # K13514



EQUIPPED WITH:

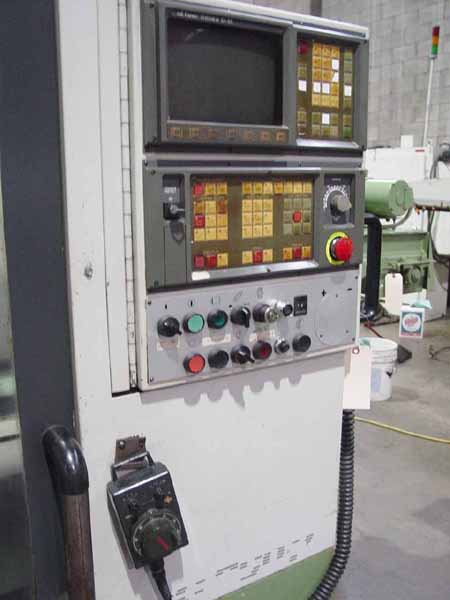

Fanuc 0M CNC Control, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, High Speed Rotary Style Pallet System, 16 Station
Automatic Tool Changer, Heavy Duty Traveling Column Design, Axis

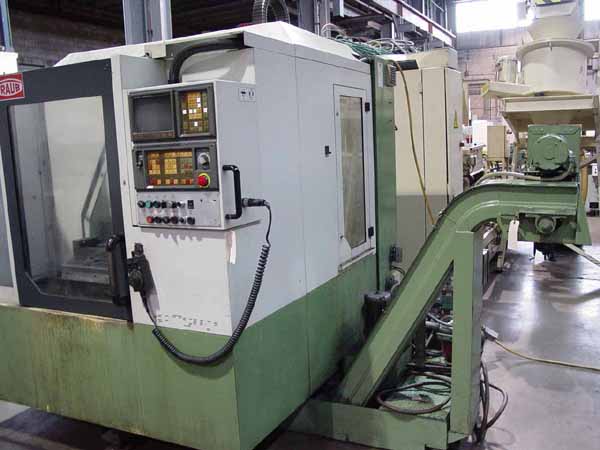

Error Compensation, Full Enclosure, Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:

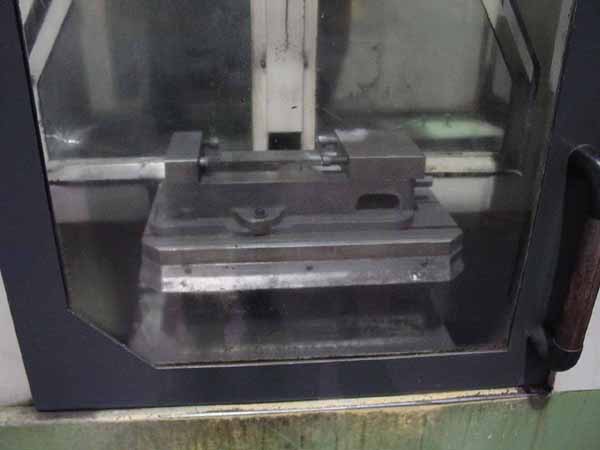

Pallet Size........................................... 23.6" x 11.8"
Table Load Capacity................................... 600 LBS
Longitudinal Travel (X-Axis).......................... 15.74"
Cross Travel (Y-Axis)................................. 11.8"
Vertical Travel (Z-Axis).............................. 15.74"
Spindle Nose to Table................................. 2.3" - 18.4"
Rapid Traverse Rate (X,Y & Z-Axes).................... 1181 IPM
Tool Storage Capacity................................. 16
Spindle Horsepower.................................... 13 HP
Spindle Speeds Range.................................. 20 - 8,000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 230/460/3/60
Approximate Machine Dimensions........................ 92" x 126"
Approximate Machine Height............................ 103"
Approximate Machine Weight............................ 6,000 LBS



CONDITION: Appears to be in Very Good Condition !
