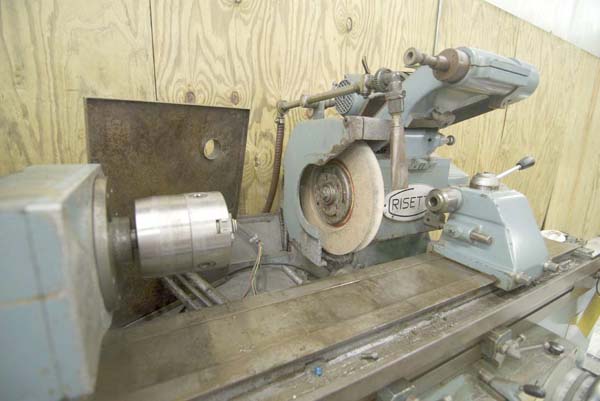

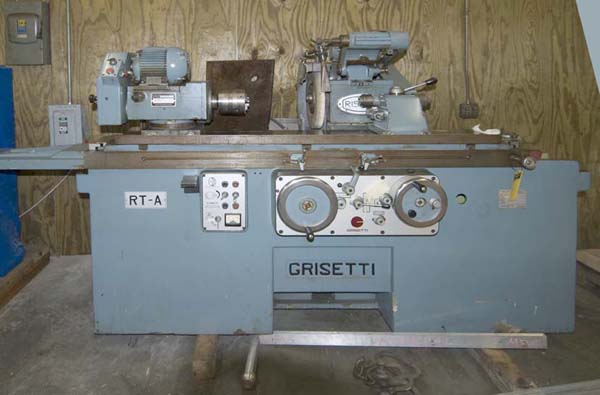

10" X 40" GRISETTI UNIVERSAL CYLINDRICAL GRINDER
                    Model RT-A1000, New 1990, Stock# K13517



EQUIPPED WITH:



Universal Swiveling Workhead and Wheelhead, Swing Down Internal Grinding
Spindle, Live/Dead Workhead, Table Swivel with Indicator, Wheel
Guard, Coolant Tank and Pump.



CATALOGUE SPECIFICATIONS:



Swing Over Table, Maximum ............................ 11.02"
Max Grinding Diameter with New Wheel.................. 10.02"
Distance Between Centers ............................. 40"
Grinding Wheel, Standard Dia. ........................ 14"
Grinding Wheel, Width ................................ 2"
Grinding Wheel, Hole Dia. ............................ 8"
Workhead Spindle Speeds .............................. 24 to 240 RMP
Grinding Wheel Speed.................................. 1680 RPM
Longitudinal Table Feeds (Hydraulic) ................. 1 to 131 FPM
Table Swivel Angles:  Toward Wheelhead ............... 9  Degrees
                      Away from Wheelhead ............ 3  Degrees
Headstock Swivel ..................................... +/- 90 Degrees
Wheelhead Swivel ..................................... +/- 30 Degrees
Wheelhead Motor ...................................... 5 HP
Workhead Motor ....................................... 1.5 HP
Electrical System .................................... 440/3/60
Floor Space .......................................... 95"x162"x57"H
Approx Weight ........................................ 8,700 LBS



CONDITION:  Appears to be in Excellent Condition !
