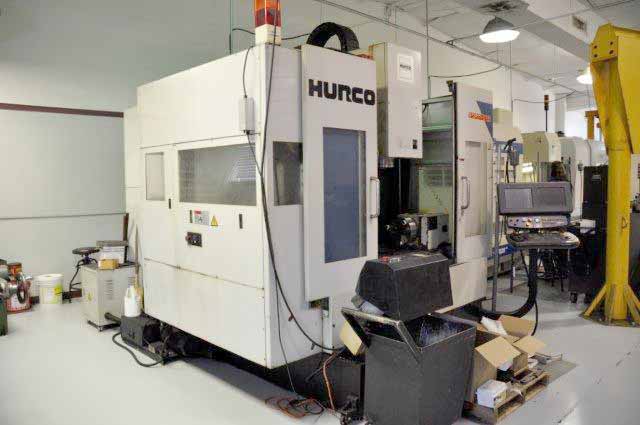

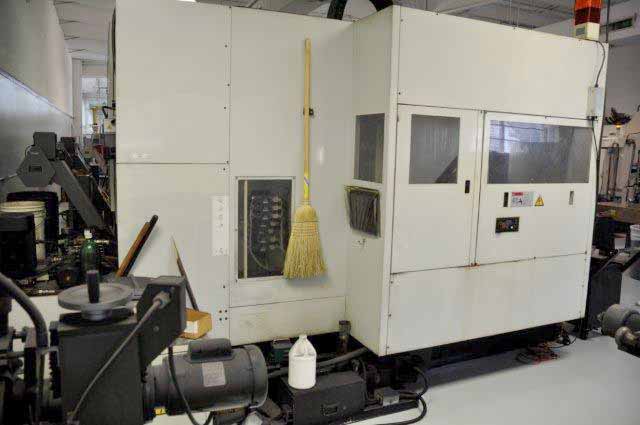

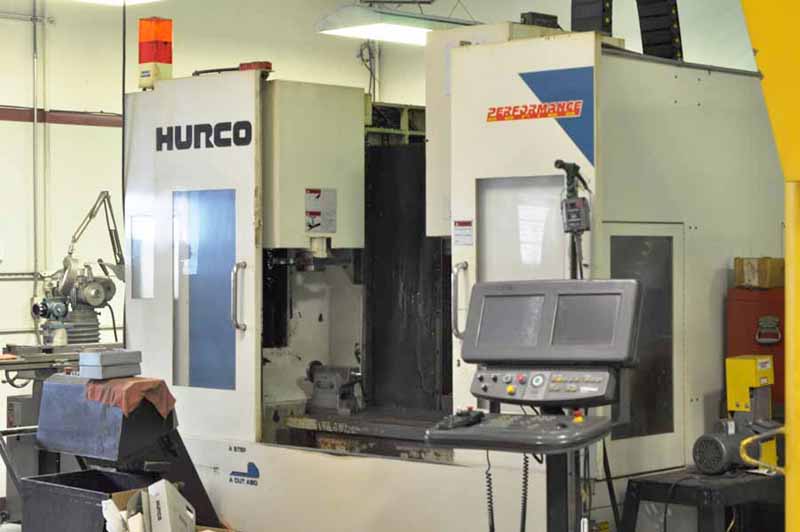

HURCO VTC40 CNC VERTICAL MACHINING CENTER
                 Model VTC40, New 2001, S/N VTC19100112
                                Stock# K13521



EQUIPPED WITH:

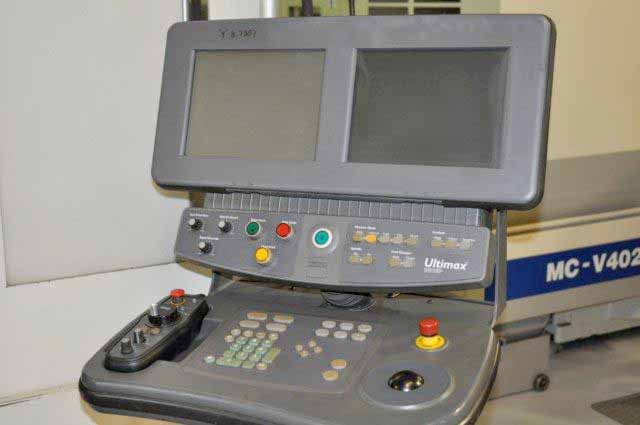

Ultimax 4 CNC Control, Dual Screen  CRT's, Kitagawa Full Contouring 4th
Axis Rotary Table with Tailstock and 10" 3-Jaw Chuck, RS-232, Multiple
Part Program Storage, 40 Station Automatic Tool Changer, Heavy Duty 30

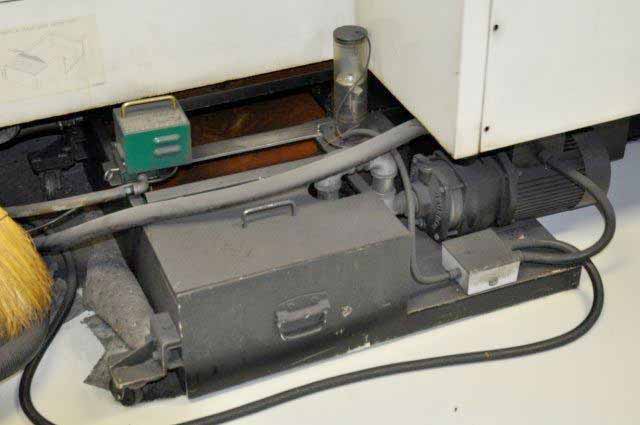

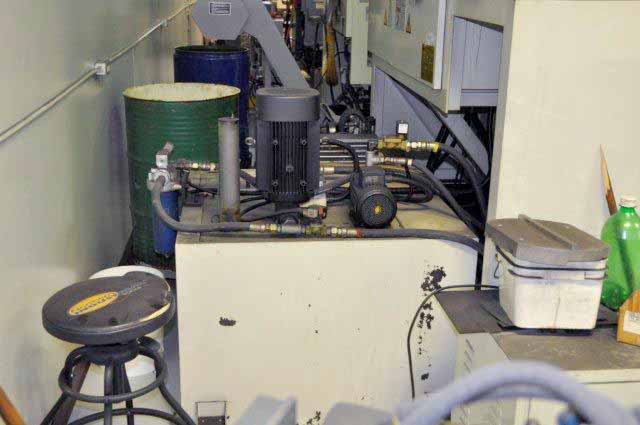

HP Spindle, Work Light, Dual Chip Augers, Chip Conveyor Thru Spindle
Coolant System.



CATALOGUE SPECIFICATIONS:



Table Working Surface............................. 25.6" x 55"
Table Load Capacity............................... 3,300 LBS
Longitudinal Travel (X-Axis)...................... 40"
Cross Travel (Y-Axis)............................. 24"
Vertical Travel (Z-Axis).......................... 22"
Maximum Clearance Table Top to Spindle Nose....... 30"
Feed Rates, All Axes.............................. 0.1 to 1180 IPM
Rapid Traverse Rate, All Axes..................... 1181 IPM
Tool Storage Capacity............................. 40
Spindle Horsepower................................ 30 HP
Spindle Speeds Range.............................. 10-10000 RPM
Spindle Taper..................................... No. 40 CAT (V-Flange)
Electrics......................................... 240/460/3/60
Approximate Machine Dimensions.................... 155" x 172"
Approximate Machine Height........................ 121"
Approximate Machine Weight........................ 25,300 LBS



CONDITION: From a Small Precision Instrument Shop.  Appears
           to be in Excellent Condition !
