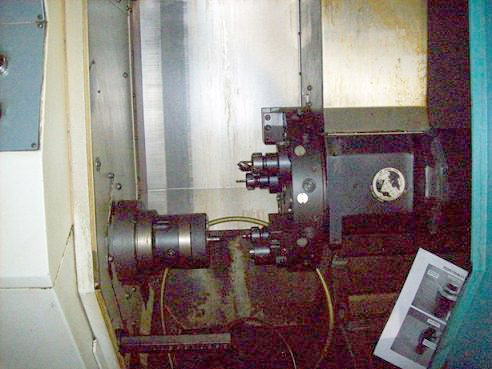

CLAUSING COLCHESTER STORM 80 CNC TURNING CENTER
                          Model Storm 80, New 1997
                                Stock# K13529


EQUIPPED WITH:
Fanuc 21T CNC Control, Multiple Part Program Storage, RS-232 Port,
6" 3-Jaw Chuck, 12 Position Tool Turret, All Fanuc Drives and Motors,
Chip Pan and Coolant System, Tooling Package.


CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 16.54"
Max Turning Diameter.................................... 6.69"
Standard Chuck Size..................................... 6"
Cross Travel (X-Axis)................................... 6.5"
Longitudinal Travel (Z-Axis)............................ 13.78"
Feed Range (Infinitely Variable)........................ .1-394 IPM
Rapid Traverse Rate (X-Axis)............................ 591 IPM
Rapid Traverse Rate (Y-Axis)............................ 591 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Bar Capacity............................................ 1.65"
Spindle Nose............................................ A2-5
Spindle Speed Range (1 RPM Increments).................. 45-4000 RPM
Spindle Horsepower...................................... 15 HP
Approximate Machine Dimensions.......................... 117" x 74"
Approximate Machine Height.............................. 73"
Approximate Machine Weight.............................. 5,560 LBS



CONDITION: Two machines available. Both were purchased for a special job
in 1997 and used until 2001 until that job ended. The machine have been
used very little since that. Both Machines Appears to be in Very Good
Condition !
