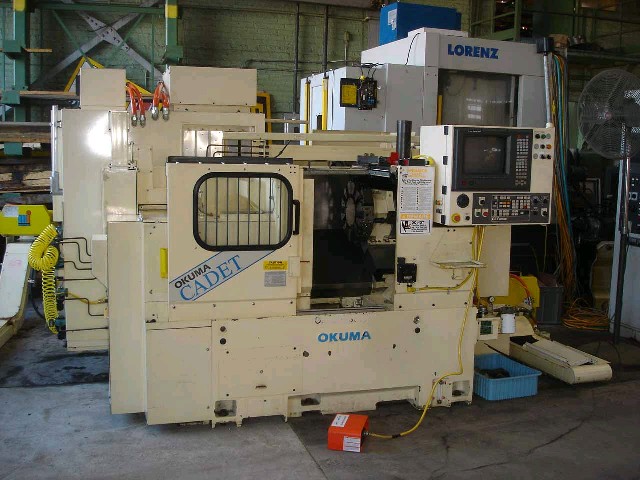

Okuma Cadet LNC-8 2-Axis CNC
Turning Machine
Model LNC-8, New: 1995, Stk# K13530
EQUIPPED WITH:
GE Fanuc 18TA CNC Control
With 80m Memory. 14" Color CRT. Graphics. Custom Macro B. Tool Life
Management. Background Edit. Manual Pulse Generator. Swing Down Touch

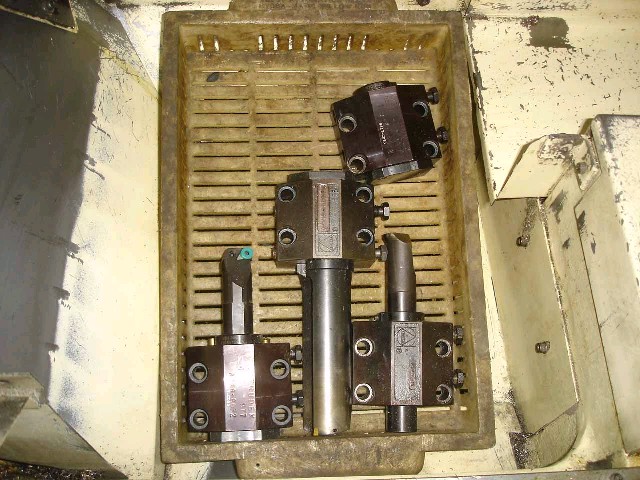

Setter. Automatic Door Lock 10" 3-Jaw Hydraulic Chuck And Cylinder. (4) ID
Tool Holders. Foot Pedal. Transformer. Chip Conveyor.
SPECIFICATIONS:
Maximum swing over
saddle
15.75"
Maximum Turning
Diameter
9.84"
Maximum Turning
Length
19.68"
Z-Axis Travel,
Longitudinal
20.47"
X-Axis
Travel
6.89"
Spindle Nose
Type
A2-6
Spindle
Diameter
3.94"
Spindle
Bore
2"
Spindle Speeds (Infinitely
Variable) 75-4200
RPM
Feed
Rates
.0001-39.37 IPR
Rapid Feed
Rate
590.55 IPM
Turret
Positions
12
Approximate
Weight
9,670 lbs
Condition: From the
Tool Room of a Large Automotive Shop. Not a production machine. Appears to
be in Excellent Condition !
