HURCO  TM-8 CNC Turning Center with Bar-Feeder

     Model TM-8, New 2007



EQUIPPED WITH:

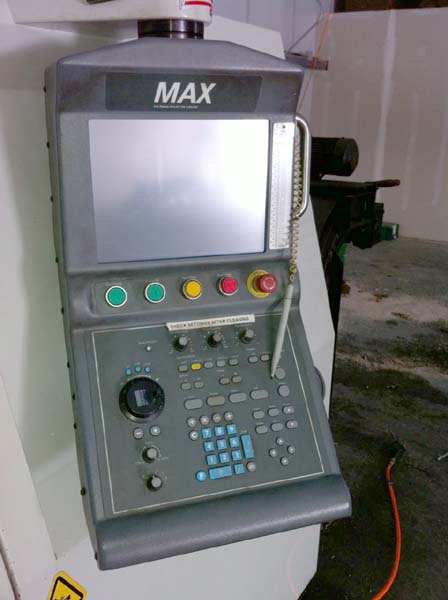

Hurco Max Control with WinMax Lathe Programming Package, Rigid Tap,

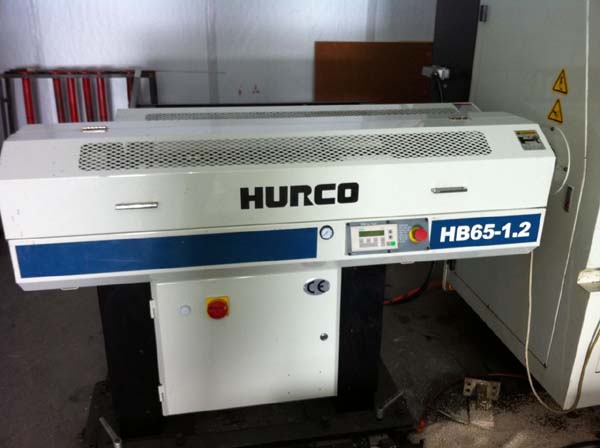

8" 3-Jaw Power Chuck,  Collet Chuck,  Hurco HB65-1.2 Magazine Style Bar-Feeder,

Large Assortment of Spindle Liners, Collet Pads and Collets.



CATALOG SPECIFICATIONS:

Swing Over Bed.............................. 21.6"
Swing Over Cross Slide................ 12.6"
Maximum Turning Diameter............ 12"
Maximum Turning Length................  18.8"

X-axis Travel...................  8"
Z-axis Travel...................  20"
Distance Between Centers...................  23"
Spindle Nose...........................   A2-6
Spindle Speed...........................  4,800 RPM
A.C. Spindle Motor (Continuous)....  15.0 hp
Spindle Chuck.................    8" Diameter 3-Jaw, Hydraulic
Spindle Bore Diameter...............   2.44"
Maximum Bar Capacity.....................  2.04"
X-axis Rapid Feed Rate...............  750 ipm
Z-axis Rapid Feed Rate..............   945 ipm

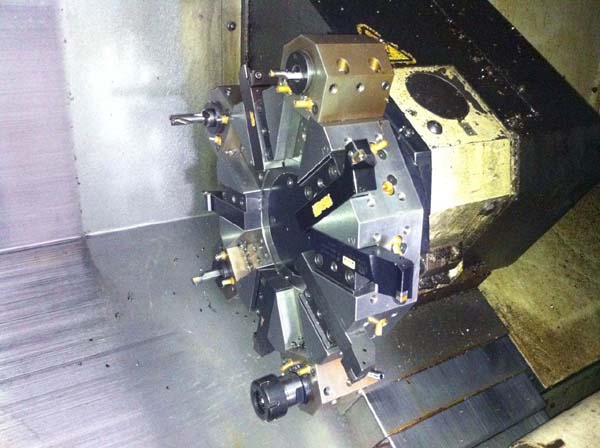

Number of Turret Stations................ 10
Machine Weight            8,160 lbs
Machine Shipping Dimensions   116" x 91" x 80"


Condition: Appears to be in Excellent Condition
