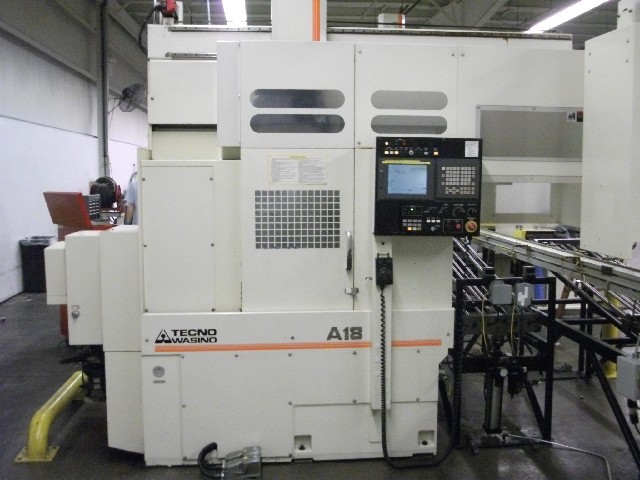

Wasino A-18 CNC Turning Center with Live Tooling
Model A-18, New 2000, Stk# K13533
EQUIPPED WITH:

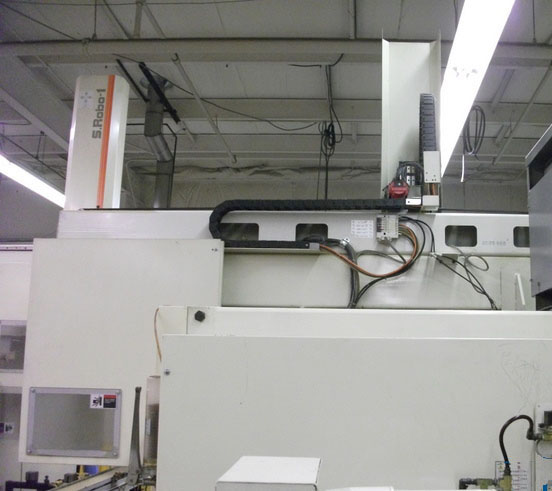

Fanuc 18iT CNC Control, Over Head Robot Gantry Loader Model (SR-1)
Full C-axis (.001 Degree), 18 Tool Stations , Turbo Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Turning Diameter...........5"
Max Turning Length............... 5"
Spindle Bore............... (85mm) 3.34"
Main Spindle Drive...........15Hp
X-axis Travel...................6.1"
Y-axis Travel....................5.9"
Z-axis Travel...................10.4"
Spindle speed...............3000 Rpm
Turret Stations....................18 Stations
Max. Radial Tools................18
Max. speed on Radial tools......10,000 Rpm
Max. speed on Axial tools..........5000 Rpm
Machine Weight........................8100 Lbs
Spindle Nose........................A2-8 ASA
Turning Spindle Motor, Duty Rated.........15 HP
C-Axis Minimum Programmable Increment.......001 Degrees
C-Axis Rapid Traverse..............22.2 RPM
Milling Spindle Motor, Duty Rated.............. 7.5 HP
Material Handling Robot Auto Gantry Loader...........SR-1
Work Size................... (5" x 5" )
Spindle Center Height................1100mm (43 inches)
Machine Height...........................1875mm (74 inches)
Machine Net Weight...................4000 kg (8100 lbs)
CONDITION: Machine Appears to be in Excellent Condition !
