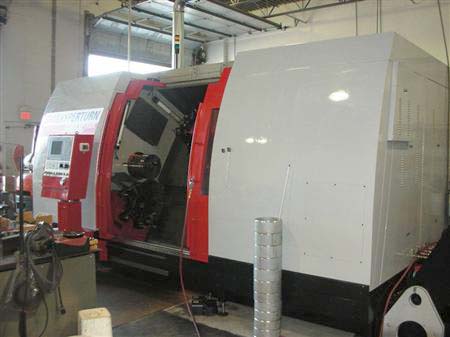

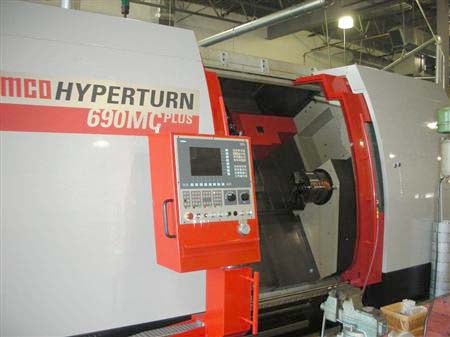

EMCO  HYPERTURN 690MC Plus MULTI CNC TURNING CENTER
               With Twin Spindles, Twin Turrets and Live Tooling
                         New 2004, Stock# K13539




EQUIPPED WITH:

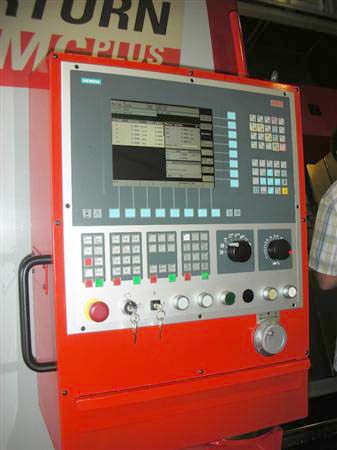

Siemens 840 CNC Control, RS-232 Port, (2) 12" SMW 3-Jaw Power Chucks,
(2) 12 Position Turrets, Both Turrets Equipped with Live Tooling, All
24 Tool Positions Could Hold Live Tools, Full Contouring C-Axis,

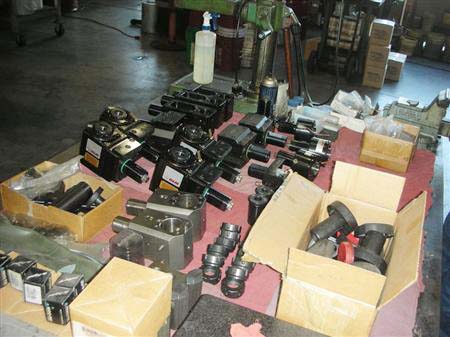

Thru Tool Coolant, Coolant System, Chip Conveyor, Large Tooling Package.




CATALOGUE SPECIFICATIONS:



Max Swing Over Bed ..................................... 27.6"
Max Turning Diameter.................................... 20.5"
Max Distances Between Spindles.......................... 42"
Spindle Bore............................................ 4.2"
Chuck Size.............................................. 12"
X-Axis Cross Travel .................................... 19.3"
Z-Axis Longitudinal Travel ............................. 41.54 "
I-Axis Turret Travel ................................... 7.9"
Rapid Traverse Rates.................................... 1181 IPM
Lower Turret Tool Positions............................. 12
Upper Turret Tool Positions............................. 12
Spindle Nose ........................................... A2-8
Spindle Speed Range..................................... 35-3000 RPM
Spindle Drive Motor..................................... 72 HP
Approximate Machine Dimensions.......................... 194" x 103"
Approximate Machine Height.............................. 103"
Approximate Machine Weight.............................. 34,500 LBS



CONDITION: Machine Appears to be in Like New Condition !
