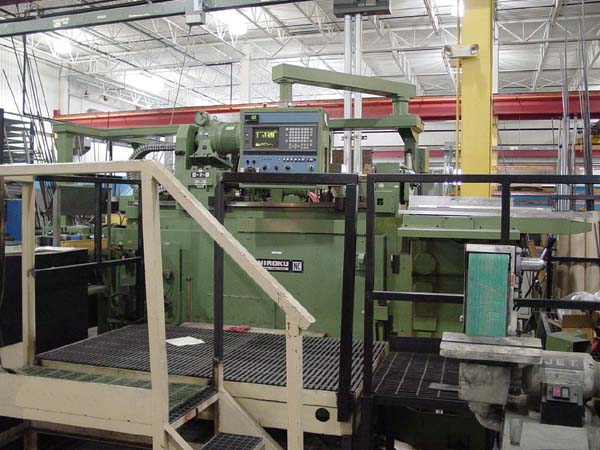

1" x 40" MIROKU CNC PRECISION HORIZONTAL DEEP HOLE DRILL
               Model MB6-1000-/NC, New 1993, Stock# K13544



EQUIPPED WITH:

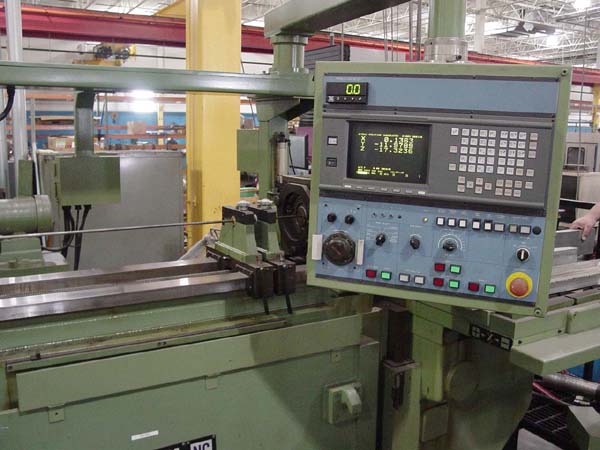

Fanuc 16 CNC Control, 3-Axis Fanuc Motors with Pendent Control for
Axis Feed and Positioning, Spindle RPM and Load Meter, (2) Whip Guides,
600 Gallon High Pressure Coolant System with Filtration, Chip Conveyor.



CATALOGUE SPECIFICATIONS:



Working Surface of Table.......................... 40" x 60"
Table Load Capacity............................... 4,400 lbs
Drilling Capacity (Solid Mild Steel).............. 1" Maximum
Drilling Capacity................................. .19" Minimum

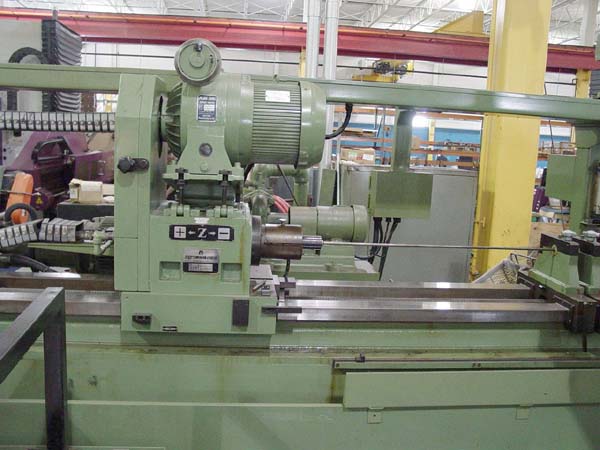

Drill Head Stroke (Z-Axis)........................ 40" Maximum
Vertical Table Travel (Y-Axis).................... 18.89"
Horizontal Table Travel (X-Axis).................. 30.70"
Infinitely Variable Feed.......................... .0 - 19 IPM
Rapids............................................ 200 IPM
Spindle Speeds Variable........................... 800-7200 RPM
Electrics......................................... 460/3/60
Approximate Machine Dimensions Set Up............. 170" x 96"
Approximate Machine Height........................ 86"
Approximate Machine Weight........................ 9,000 lbs



CONDITION: Appears to be in Excellent Condition !
