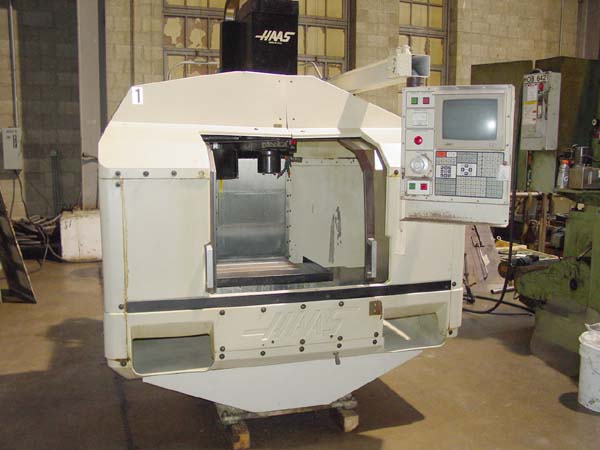

HAAS VF-1 CNC VERTICAL MACHINING CENTER
                       Model VF-1, New 1991, S/N 1241
                                  Stock # K13552



EQUIPPED WITH:

HAAS 32-Bit Fanuc Compatible CNC Control w/CRT, Metal Way
Guards, Arranged for a Full Contouring 4th Axis,  Load Meter, 16 Station

Automatic Tool Changer, Automatic Lubrication, 2-Chip Removal Outlets,

 Work Light, Flood Coolant System With Full Chip-Splash Enclosure.

CATALOGUE SPECIFICATIONS:

Table Working Surface............................. 14" x 26"
Table Load Capacity............................... 750 LBS
Longitudinal Travel (X-Axis)...................... 20"
Cross Travel (Y-Axis)............................. 16"
Vertical Travel (Z-Axis).......................... 20"
Maximum Clearance Table Top to Spindle Nose....... 24"
Feed Rates, All Axes.............................. 0 to 200 IPM
Rapid Traverse Rate, All Axes..................... 470 IPM
Tool Storage Capacity............................. 16
Spindle Horsepower................................ 7.5/5 HP
Spindle Speeds Range.............................. 0-5000 RPM
Spindle Taper..................................... No. 40 CAT
Electrics......................................... 230/460/3/60
Approximate Machine Dimensions.................... 73" x 95"
Approximate Machine Height........................ 106"
Approximate Machine Weight........................ 6,400 LBS



CONDITION:  This Machine Appears to be in Very Good Condition !
