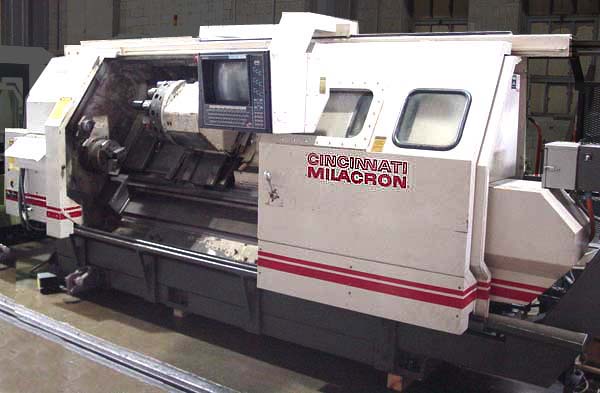

CINCINNATI MILACRON 300MT-1800 CNC TURNING CENTER with LIVE TOOLING
            Model 300T-1800, New 1994, Stock # K13555



EQUIPPED WITH:
Acramatic 850SX CNC Control with Color CRT, Multiple Part Program
Storage, Live Tooling, Enhanced Maintenance Package, Heavy
Duty A2-8 Spindle Nose with 3.15" Thru Hole, 12" 3-Jaw Hydraulic Chuck,

(2) Mounting Brackets and Plumbing for Hydraulic Turn-Through Steady Rests,

 Heavy Duty Programmable Bed Mounted Tailstock, 12 Position
ID/OD Tool Turret, Chip Conveyor, Coolant System, Tooling Package.



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 22"
Max Swing Over Carriage................................. 17"
Max Tailstock Position.................................. 77"
Max Machinable Center Distance.......................... 72"
Standard Chuck Size..................................... 12"
Cross Travel (X-Axis)................................... 12.75"
Longitudinal Travel (Z-Axis)............................ 77"
Feed Range (Infinitely Variable)........................ .1-200 IPM
Rapid Traverse Rate..................................... 600 IPM
Number of Turrets....................................... 1
O.D. Tool Positions (Maximum)........................... 8
I.D. Tool Positions (Maximum)........................... 12
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 88-3500 RPM

Spindle Horsepower...................................... 35 HP
Electrics............................................... 230/440/3/60
Approximate Machine Dimensions.......................... 232" x 85"
Approximate Machine Height.............................. 85"
Approximate Machine Weight.............................. 21,300 LBS



CONDITION: From a Large Aerospace Facility ! Ran Primarily Aluminum.
Only for 1 Shift. Machine Appears to be in Excellent Condition !
