EQUIPPED WITH:

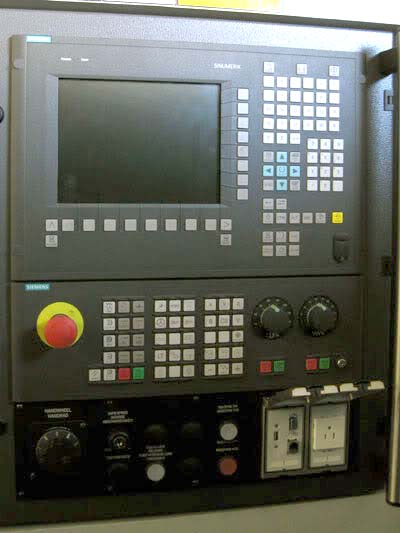

SEIMENS 840D CNC Control, 60 Station Automatic Tool Changer,

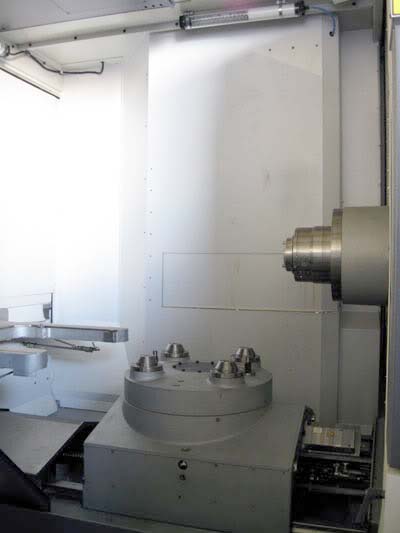

(2) 24.8" x 24.8"  Full Contouring Rotary Table (360,000 Positions),

 Heavy Duty Cat-50 Spindle,  10000 RPM Spindle, Thru-Spindle Coolant,

Full Enclosure, Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:

Pallet Size.................................................. 24.8" x 24.8"

Travel (X-Axis).................................................. 42.3""
Travel (Y-Axis)............................................. 31.5"
Travel (Z-Axis)................................................ 39.4"
Spindle Taper...................................... #50 CAT

Pallet Rotation Positions....................... 360,000
Spindle Horsepower................................. 51 HP
Spindle Speeds ....................................... 100 to 10000 RPM
Rapid Rates All Axis...................................... 1900 IPM
Electrics.......................................... 460/3/50
Approximate Machine Dimensions..................... 296" x 160"
Approximate Machine Height......................... 132"



CONDITION:  Machine was used as a Show Demo Machine at 2010 IMTS and Westec.  Still in New Condition ! !

Includes a 12 Month Factory Warranty
