CINCINNATI MILACRON "MAXIM 630" FMS MACHINING CENTER CELL
                          New 1993-1995, Stock# K13559



EACH MACHINE EQUIPPED WITH:

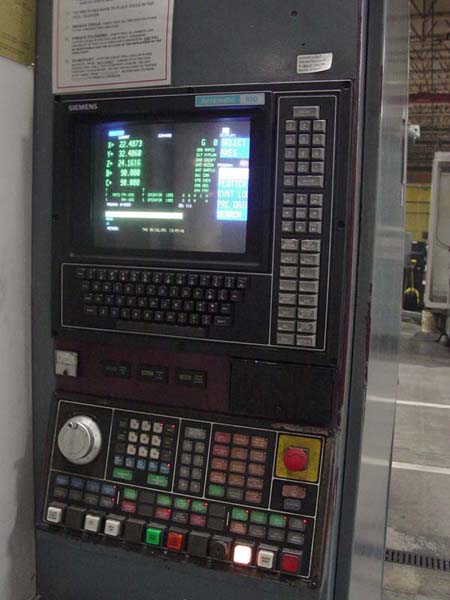

Acramatic 950 CNC Control w/Color CRT, Touch Screen Programming,
RS-232 Port, (2) 25" Square Pallets with 1 Degree Indexing Pallet
Rotation, Double Chain 90 Station Tool Changers, Tool Management

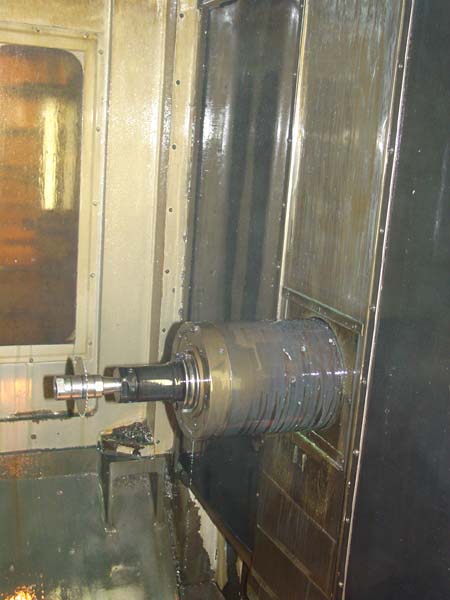

Software, Probes, Torque Controlled Machining, Chip Conveyor, Thru
Spindle Coolant, Coolant System.



CELL INCLUDES:

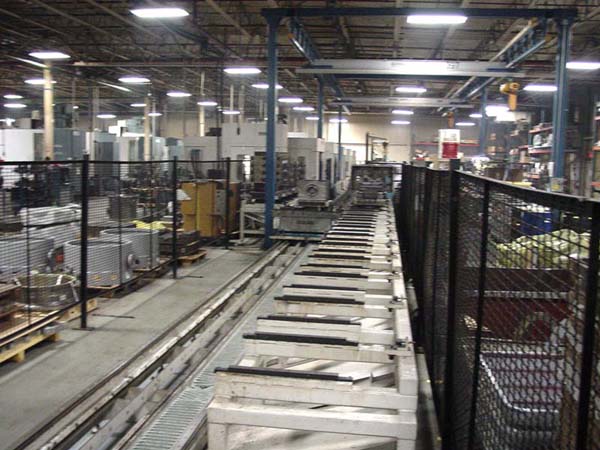

5 Machines Integrated with a Rail Guided Vehicle and 1 Stand Alone
Machine for Program Development and Testing. 48 Pallet Stands,
Cincinnati Milacron Cincom Cell Controller, 3 Load / Unload Stations.



MACHINE CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 40.4"
Vertical Travel (Y-Axis) ............................... 31.5"
Spindle Travel (Z-Axis) ................................ 31.5"
Pallet Dimensions ...................................... 24.8"x24.8"
Maximum Pallet Load .................................... 3000 LBS
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... .1-984 IPM
Rapid Traverse, All Axes ............................... 984 IPM
Spindle Horsepower...................................... 33 HP
Spindle Speed Range..................................... 10 - 7000 RPM
Spindle Taper .......................................... #50 CAT
Number of Tool Stations ................................ 90
Electrics (wired 460)................................... 460/3/60
Approximate Machine Dimensions.......................... 202" x 129"
Approximate Machine Height.............................. 114"
Approximate Machine Weight.............................. 34,750 LBS

CONDITION:  Appears to be in Excellent Condition ! Cell Controller was
Replaced in 2002 and all Machine Upgraded to Newest Software. Under
Power and Ready for Demo ! f
