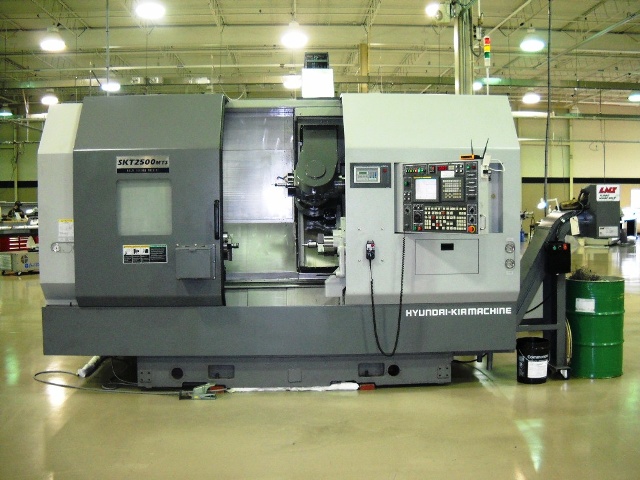

Hyundai Kia SKT2500MTS CNC TURNING CENTER
                            with LIVE TOOLING and SUB-SPINDLE
                                        New 2009, Stock# K13564

EQUIPPED WITH:
Fanuc 18iT CNC Control, Multiple Part Program Storage, Manual Guide I w/ Basic NC Programming,

RS-232 Port, Live Tooling, Full Contouring C-Axis Spindle, Sub-Spindle, 10" 3-Jaw Chuck on Main,

8" 3-Jaw Chuck on Sub-Spindle, Parts Catcher, Sub-Spindle Part Ejector,  Swivel Head with 42 Station Automatic Tool Changer,

Y-Axis, Rigid Tapping with Rotary Tools, Automatic Tool Setter, Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 30.7"
Max Turning Diameter.................................... 19.7"
Max Machining Length.................................... 39.4"
Main Spindle Chuck Size..................................... 10"

Sub-Spindle Chuck Size.......................................8"
Spindle Bore............................................ 3.39
Bar Capacity............................................ 3"
Cross Travel (X-Axis)................................... 25.6"
Longitudinal Travel (Z-Axis)............................ 45.3"

Turret Milling Axis Y-Axis.................................. 4.7"
Spindle Speed Range..................................... 20-3500 RPM
Spindle Horsepower...................................... 40 HP
Sub-Spindle Speed Range................................. 20-3500 RPM
Sub-Spindle Horse Power................................. 15 HP
Milling Spindle Speed Range............................. 60-6000 RPM
Milling Spindle Horse Power............................. 15 HP
Approximate Machine Dimensions.......................... 170" x 103"
Approximate Machine Height.............................. 93"
Approximate Machine Weight.............................. 27,000 LBS



CONDITION: Only 425 Hours. Machine Appears to be in Excellent Condition !
