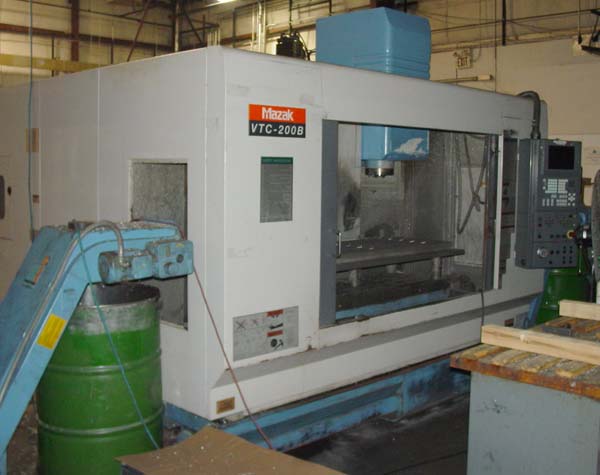

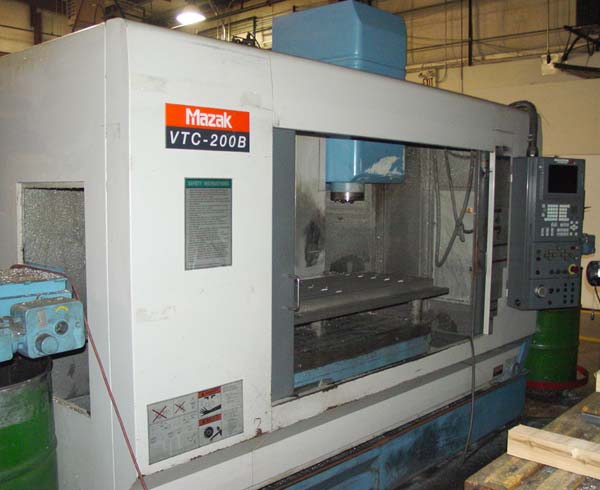

MAZAK VTC-200B CNC VERTICAL MACHINING CENTER
New 2001, Stock# K13568

EQUIPPED WITH:

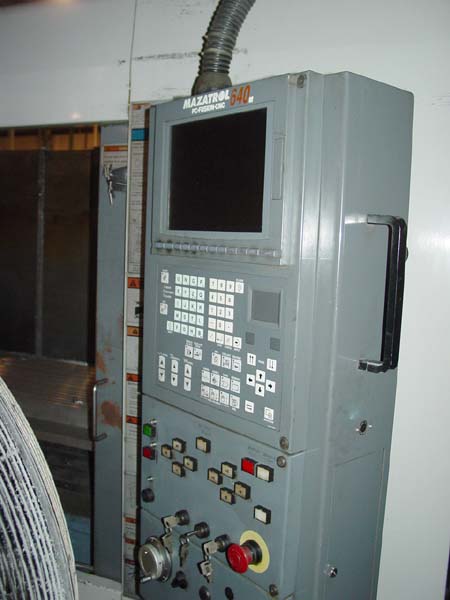

Mazatrol 640M CNC Control, Fast Menu Driven (Conversational)
Control with Self Diagnostics, Back Ground Tool Path and Part
Graphics, Interactive Graphic Programming, Coolant Thru the Spindle,
Rigid Tapping, Adaptive Feedrate Control, Tool Probe, 24 Station Tool
Changer, RS-232 Port, 10,000 RPM Spindle Chip Conveyor, Thru-Spindle
Coolant, and Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface................................. 57.4" x 20.8"
Longitudinal Travel (X-Axis).......................... 44.09"
Cross Travel (Y-Axis)................................. 20.08"
Vertical Travel (Z-Axis).............................. 20.08"
Rapid Rates, All Axes................................. 1181 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower.................................... 20 HP
Spindle Speeds Range.................................. 60-10000 RPM
Spindle Taper......................................... #40 CAT (V-Flg)
Approximate Machine Dimensions........................ 118" x 114"
Approximate Machine Height............................ 105"
Approximate Machine Weight............................ 13,420 LBS

CONDITION: Appears to be in Very Good Condition !!!
