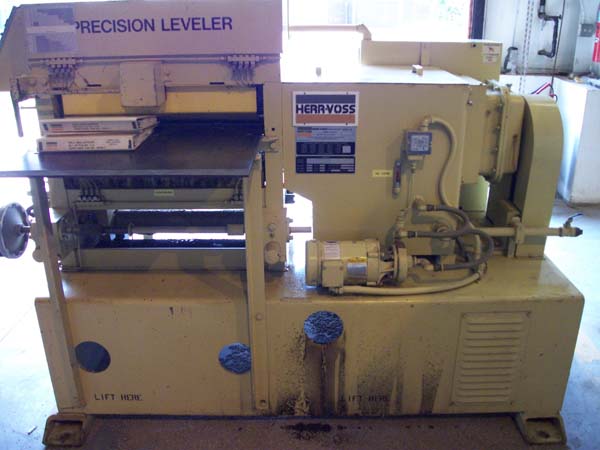

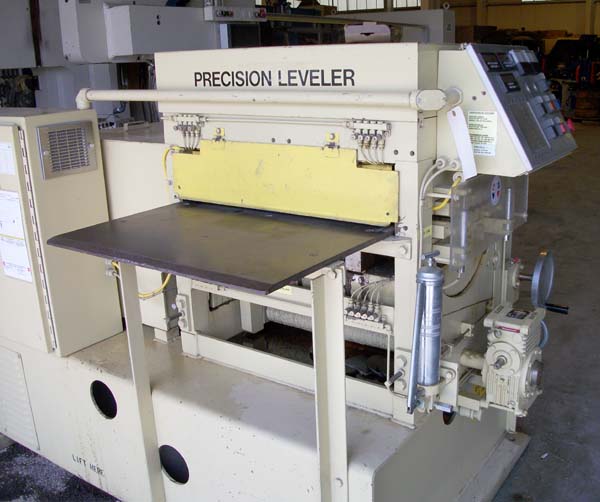

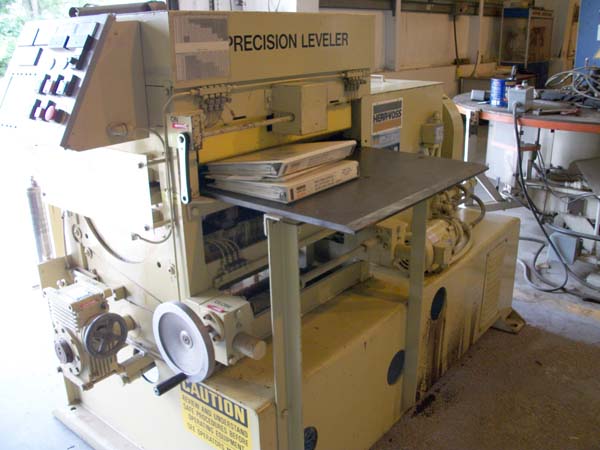

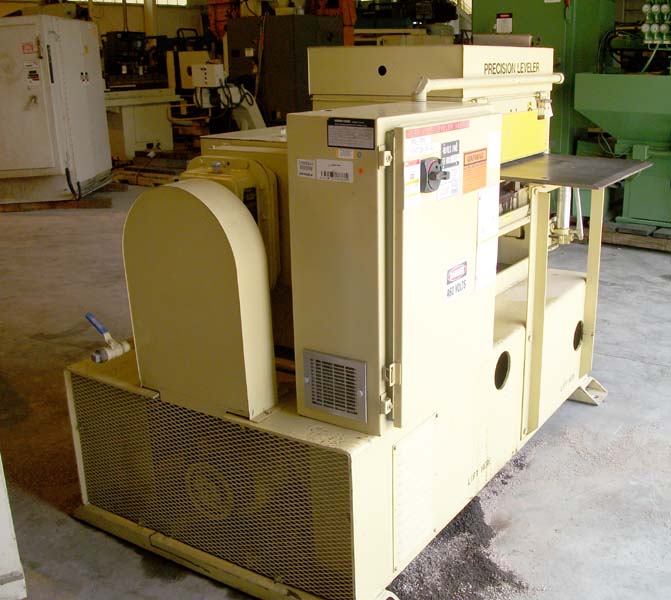

24" HERR VOSS 17-ROLL 4-HI LEVELER

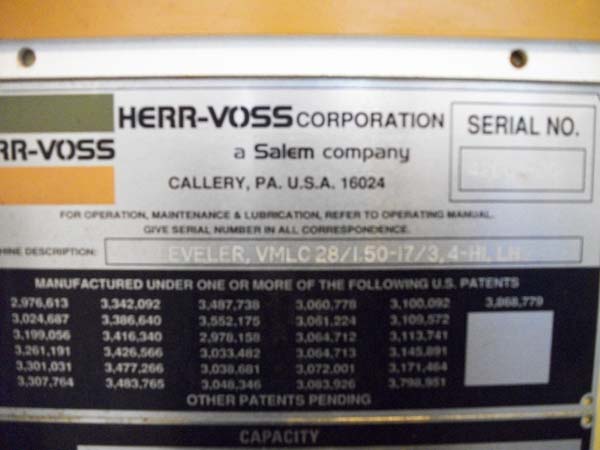

New 1994, Serial No 42002-001,
Model Mini-Leveler VMLC 28/1.50-17/3 4 HI LH

EQUIPPED WITH:

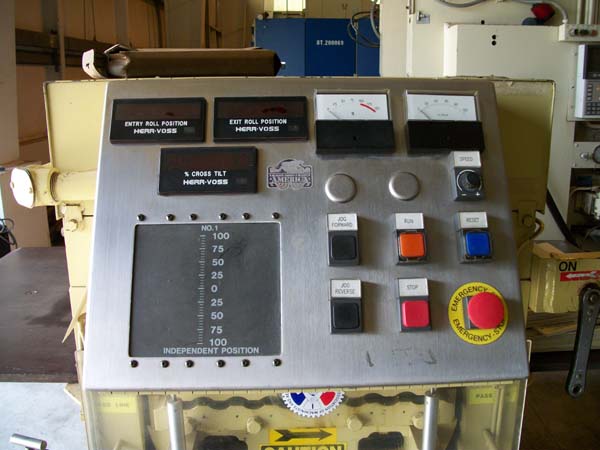

DRO for Entry, Exit & Cross Tilt Roll Position
Height Adjustment - Radial Tilt Adjustment
Cross Tilt Adjustment - Independent Back-Up Adjustment

CATALOGUE SPECIFICATIONS:
Number Of Rolls, Total................. 17-ROLL
Work Roll Diameters.................... 1.5"
Work Roll Face......................... 28"
Max. Width Strip....................... 24"
Max. Thickness Aluminum,............... 0.100"
Passline Height........................ 42"
Speed, Variable........................ to 100 FPM
Main Motor Horsepower.................. 10 HP
Lubrication Motor Horsepower........... 1 HP
Dimensions............................. 80"W x 49"D x 55"H
