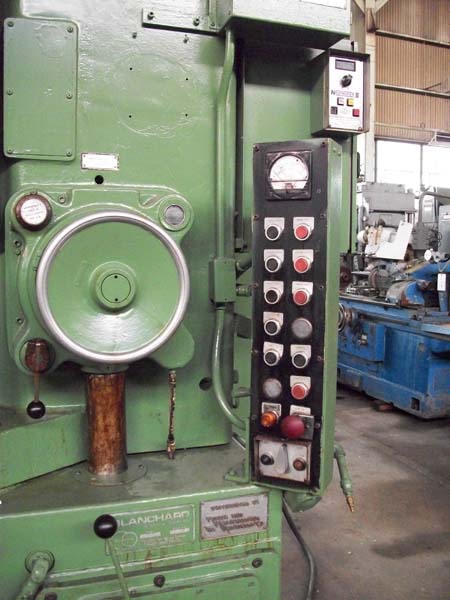

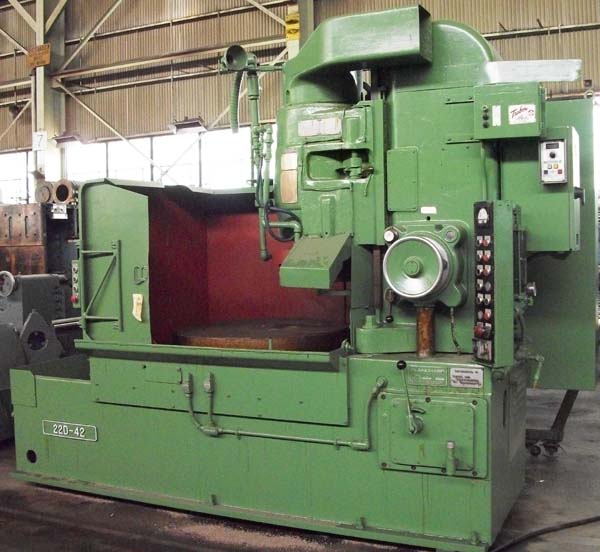

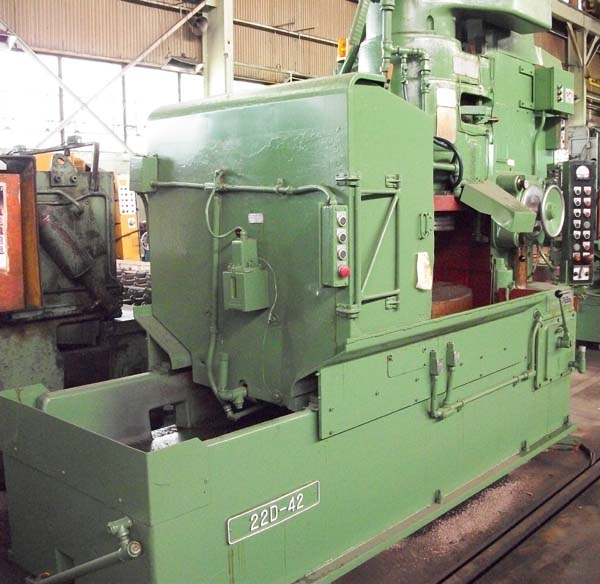

42" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New 1981, Serial No 15489, Model 22D42

EQUIPPED WITH:

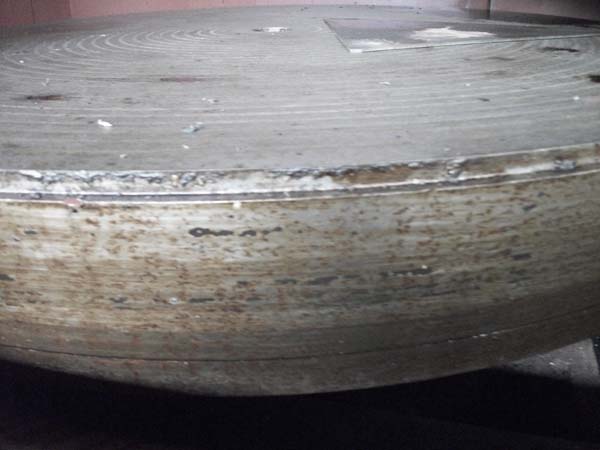

42" Diameter Magnetic Chuck w/Variable Neutrofier
50 HP Spindle Motor (Optional)
24" Vertical Range
22" Segmented Grinding Wheel
20" Cylindrical Grinding Wheel
Trabon Automatic Lubrication

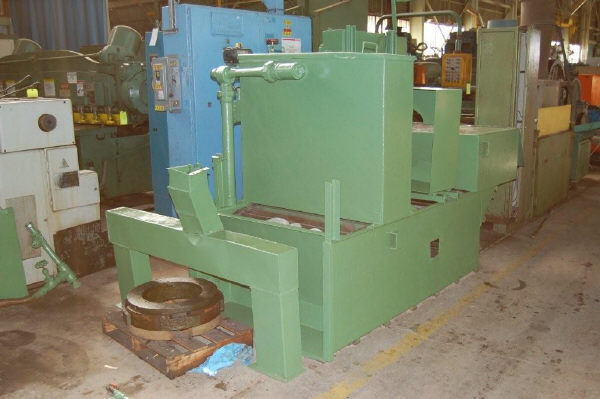

Coolant System w/Drag Out Conveyor

CATALOGUE SPECIFICATIONS:
Magnetic Chuck, Diameter............... 42"
Swing Between Coolant-Guards........... 48"
Magnetic Chuck Work Load Capacity...... 3000 LBS
Height Under Grinding Wheel, Maximum... 24"
Grinding Wheel Speed................... 720 RPM
(6) Chuck Speeds, Range................ 6 to 33 RPM
Power Down Feeds, Range................ .004 to .080 IPM
Down Feed Before Feed Trips, Max....... .298"
Spindle Motor, Horsepower.............. 50 HP
Chuck Rotation Motor................... 3 HP
Electrical System...................... 460/3/60
Overall Dimensions, L x W.............. 11'8" x 7'
Overall Height......................... 10'1"
Weight, Approximately.................. 14500 LBS
