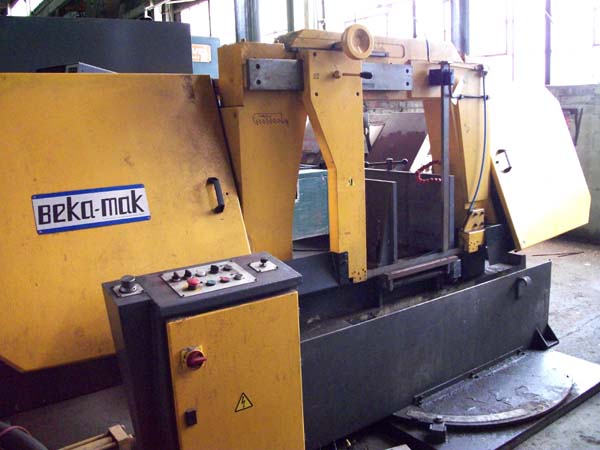

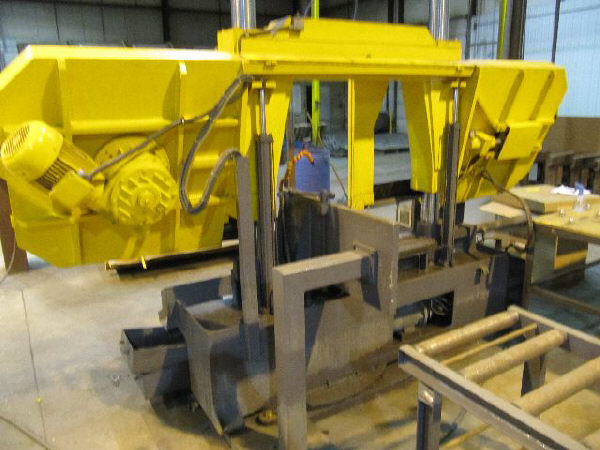

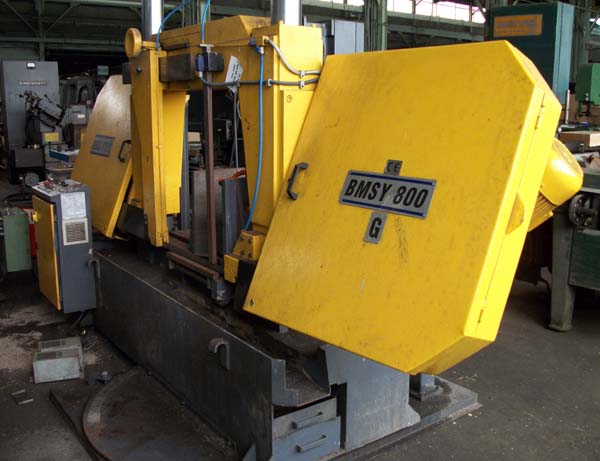

31.5" X 31.5" BEKA MAK BMSY-800G
 MITERING HORIZONTAL BAND SAW
New 2005, Serial Number 50707, Model BMSY-800G

EQUIPPED WITH:
Mitering Base - Double Column Horizontal Head
Hydraulically Raised & Controlled Lowering Head
  Automatically Raises After Cut
Hydraulic Head Raising w/Adjustable Height Stop
(2) Large Chrome Plated Guide Columns
Main Control Panel - Hydraulic Blade Tensioning
Hydraulic Vise - Coolant System

CATALOGUE SPECIFICATIONS:
Cutting Capacity @90 Degs., Round........ 31.5"
Cutting Capacity @90 Degs., Square....... 31.5"
Cutting Cap. @90 Degs., Rect............. 33.5"x 31.5"
Cutting Cap. @45 Degs., Round............ 18.9"
Cutting Cap. @45 Degs., Square........... 18.9"
Cutting Cap. @45 Degs., Rect............. 31.5" x 18.9"
Blade Size............................... 322.8"x 1.6"
Blade Thickness.......................... 0.050"
Working Height........................... 28"
Cutting Speeds, FPM...................... 65.6 to 328
Main Motor, Horsepower................... 5.44 HP
Hydraulic Motor, Horsepower.............. 1.5 HP
Coolant Motor, Horsepower................ 0.16 HP
Overall Dimensions, L x W ............... 152" x 67"
Height................................... 104"
Electrical Requirements.................. 220/440/3/60
Weight, Approximately.................... 6717 LBS
