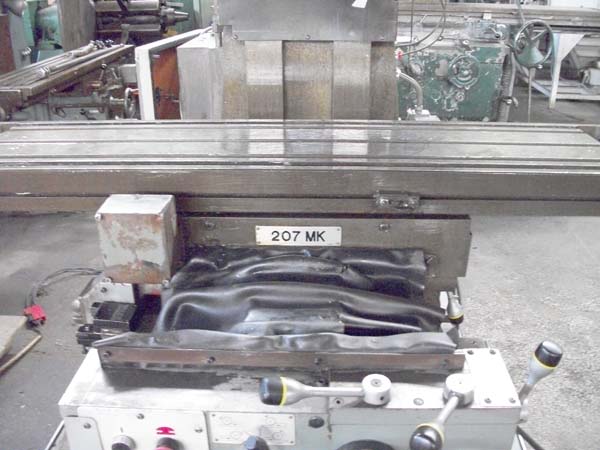

207-14 CINCINNATI-MILACRON VERTICAL MILL
New 1976, Serial No 13J23V1ADE-31, Model 207MK,

EQUIPPED WITH:

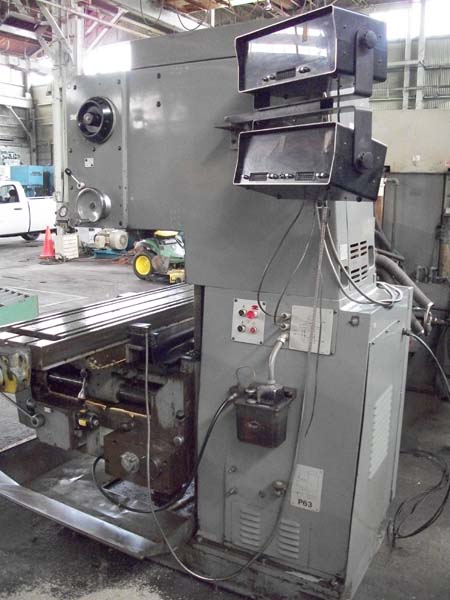

Digital Readouts

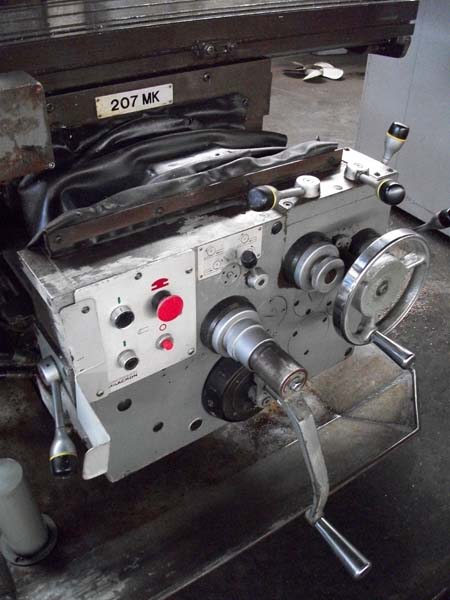

Knee Motor

CATALOGUE SPECIFICATIONS:
Table Dimensions (Overall), W x L....... 13.7" x 59.5"
Table Longitudinal Travel (X-Axis)...... 33.5"
Saddle Cross Travel (Y-Axis)............ 13.7"
Knee Vertical Travel (Z-Axis)........... 18.7"
Quill Travel............................ 3.9"
Spindle-Nose to Table, Minimum.......... 0"
Spindle-Nose to Table, Maximum.......... 21"
Spindle Taper........................... #50 NSTD
(16) Spindle Speeds, Range.............. 25 to 1500 RPM
(16) Longitudinal and Cross Feeds....... .5 to 60 IPM
(16) Vertical Feeds, Range.............. .25 to 30 IPM
Power Rapid Traverse, Long & Cross...... 150 IPM
Power Rapid Traverse, Vertical.......... 75 IPM
Spindle Motor, Horsepower............... 7.5 HP
Feed Motor, Horsepower.................. 5 HP
Floor Space Required, W x D............. 8'10" x 7'5"
Weight, Approximately................... 6550 LBS
