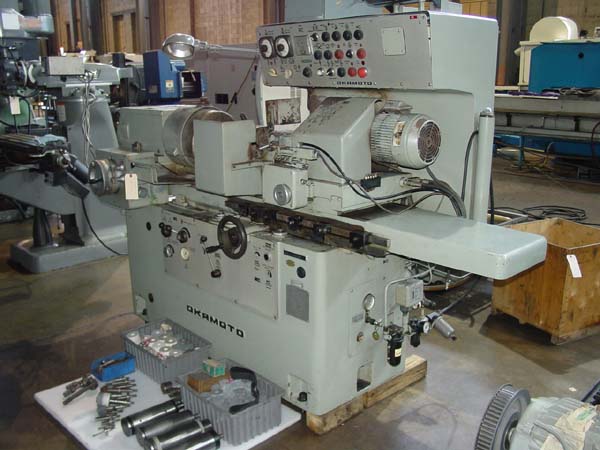

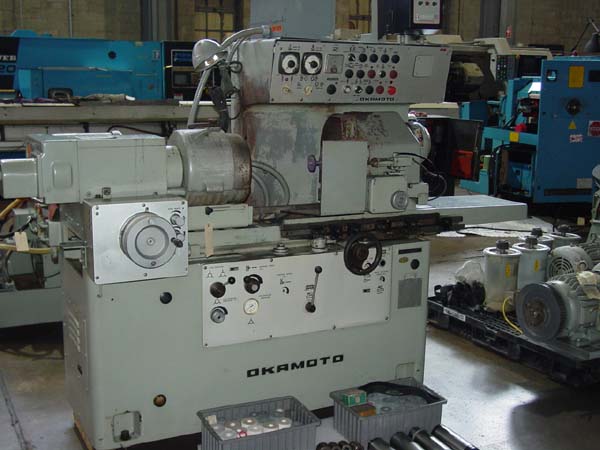

OKAMOTO UNIVERSAL INTERNAL GRINDER
                Model IGM-1E, New 1984, S/N 1403, Stock# K13589

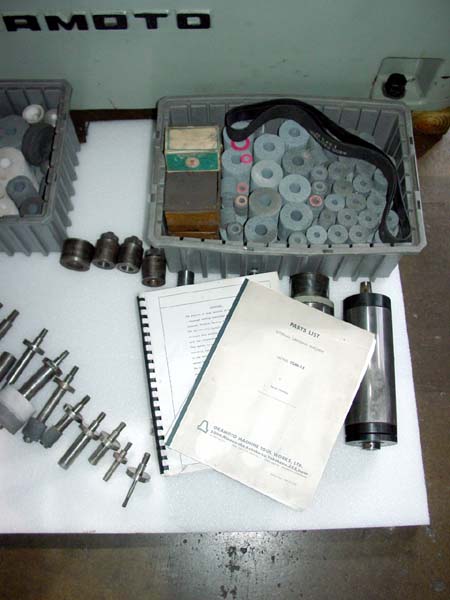

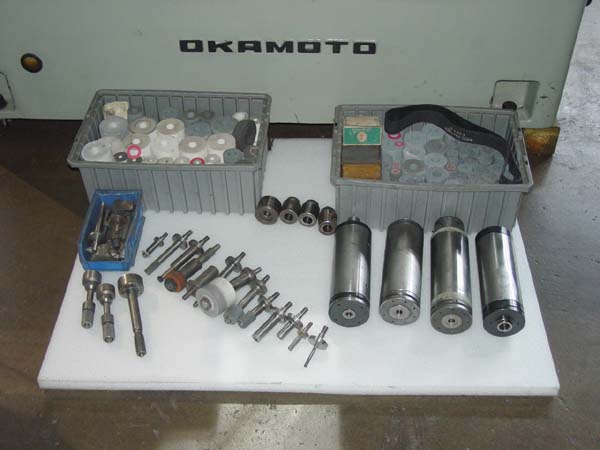

EQUIPPED WITH:

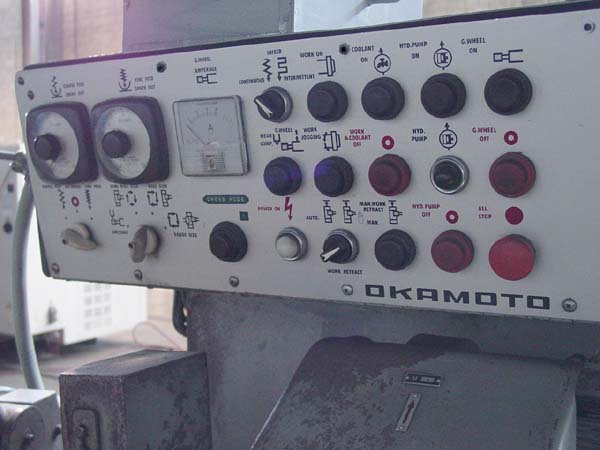

Full Automatic Grinding Cycles Including  Rapid Approach, Coarse and
Fine Feeds, Automatic Sizing and Wheel Wear Compensation, Wheel
Dresser, 15,000 RPM Grinding Spindle, 6" 3-Jaw Chuck, Variable Speed
Workhead, Coolant Tank and Pump.



CATALOGUE SPECIFICATIONS:



Swing Over the Table................................... 17.3"
Swing Inside Coolant Splash Guard, Maximum............. 10.6"
Grinding Stroke, Maximum............................... 19.7"
Workhead Cross Travel.................................. 5.9"
Maximum Grinding Diameter.............................. 7.9"
Minimum Grinding Diameter.............................. .24"
Spindle Longitudinal Adjustment........................ 9.13"
Wheelhead Slide Cross Travel........................... 1.2"
Workhead Flange to Wheelhead Slide..................... 0" to 30"
Table Longitudinal Feeds, Variable..................... 0.5 to 30 FPM
Angular Adjustment of Workhead......................... 30 Degrees
Workhead Speeds, Variable.............................. 60 to 800 RPM
Wheelhead Motor, Horsepower............................ 3 HP
Workhead Motor, Horsepower............................. 1 HP
Hydraulic Motor, Horsepower............................ 1 HP
Electrics.............................................. 220/440/3/60
Approximate Machine Dimensions......................... 59"x96"
Approximate Machine Height............................. 75"
Approximate Machine Weight............................. 5000 LBS



CONDITION: Appears to be in Excellent Condition !
