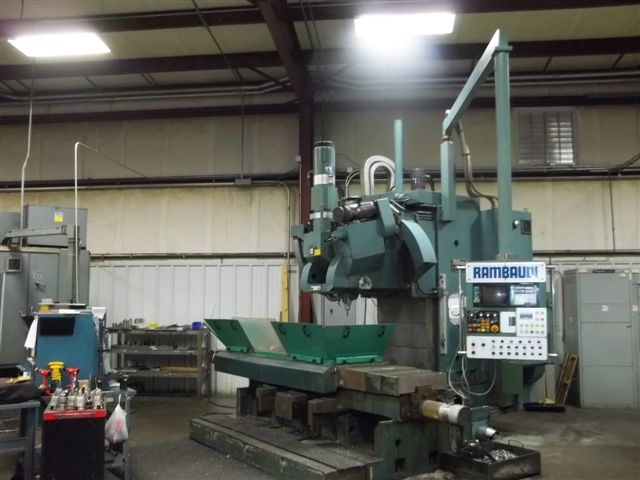

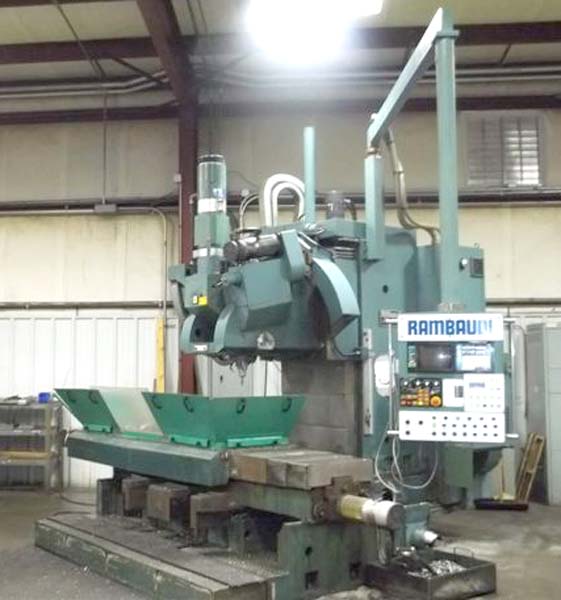

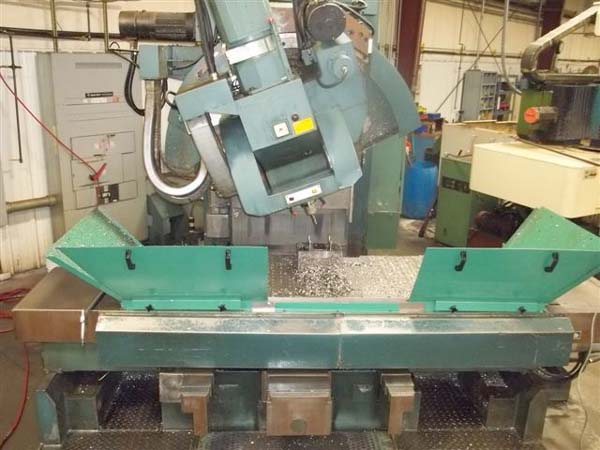

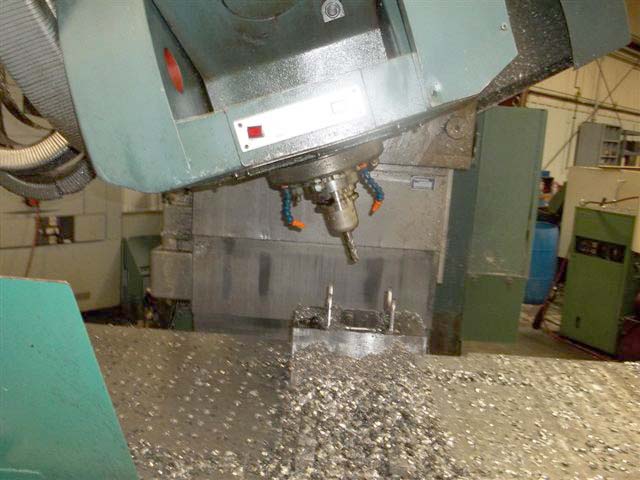

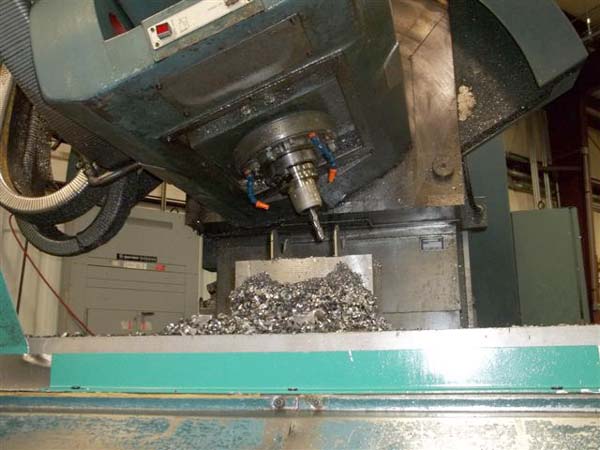

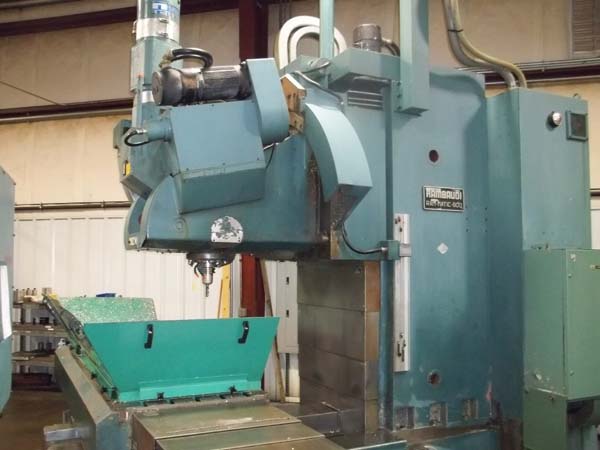

RAMBAUDI RAMMATIC-800 5 AXIS CNC VERTICAL PROFILING/CONTOURING
MACHINING CENTER
Model 800, New 1985, Stock # K13591
EQUIPPED WITH:

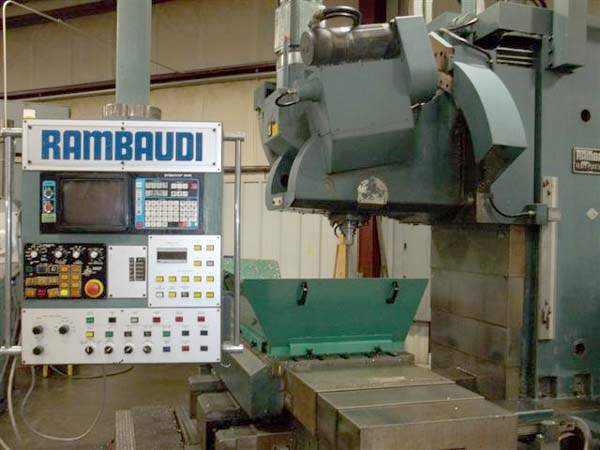

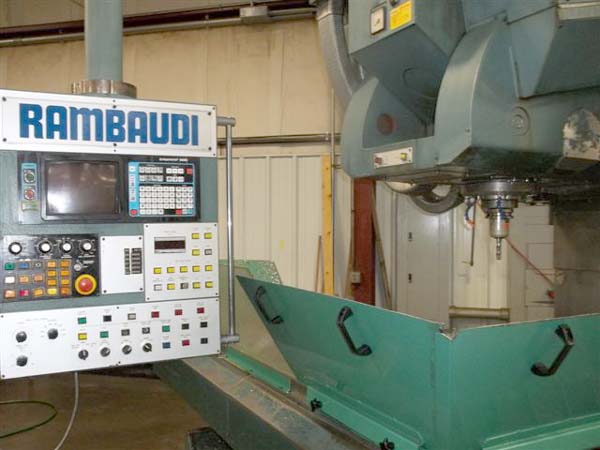

YASNAC MX1 CNC Full 5 Axis Simultaneous Contouring Control w/CRT,
RS232, Spindle Load Meter, Axis Error Compensation (X, Y, Z, A, B),
Cutter Diameter Compensation, Combination Flood/Mist Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface, W x L............................ 105" x 32"
Table Load Capacity..................................... 7000 LBS
X Axis Table Longitudinal Travel........................ 78.4"
Y Axis Saddle Cross Travel.............................. 32.1"
Z Axis Spindle Carrier Vertical Travel.................. 32.1"
A Axis Cross Plane Spindle Carrier (+ 28 Degrees/ - 30 Degrees)........ 58
Degrees
B Axis Longitudinal Plane Spindle Carrier (+or- 30
Deg).......................... 60 Degrees
Range, Spindle Nose to Table Top (Min to Max)........... 5" to 29"
Spindle Speeds, Infinite Range.......................... 20 to 4400 RPM
X, Y, & Z Axis Feeds, Range............................. 0 to 150 IPM
A & B Axis Feedrates, Range, Degrees Per Minute......... 0 to 240 DPM
Spindle Motor, Continous Rating......................... 22 HP
Spindle Taper........................................... CAT #50
Electric (Currently Wired 460).......................... 460/3/60
Weight, Approximately................................... 44,000 LBS
NOTE: Appears to be in Excellent Condition. Under Power Running !!
