EQUIPPED WITH:

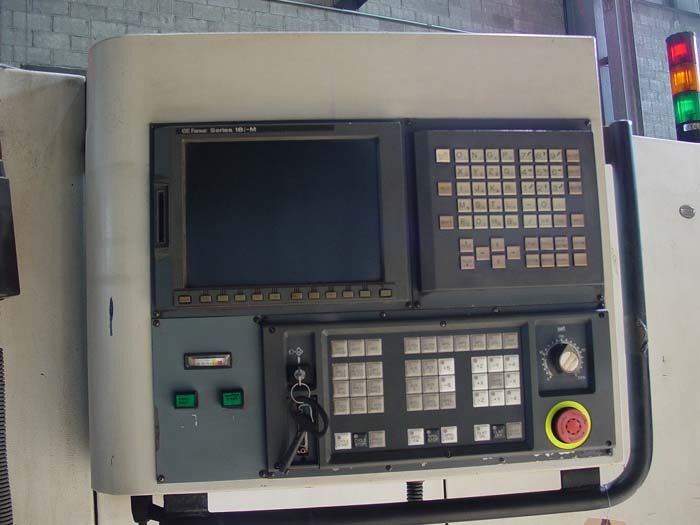

Fanuc 18iM CNC Control, All Fanuc Drives and Motors, Multiple Part
Program Storage, RS-232 Port, 30 Station Automatic Tool Changer, CAT 50
Spindle, Arranged for Probe, Thru the Spindle Coolant, Dual Drag Out Chip
Conveyor.



CATALOGUE SPECIFICATIONS:

Table Working Surface................................. 90" x 30"
Table Load Capacity................................... 6615 LBS
Longitudinal Travel (X-Axis).......................... 80"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 30"
Rapid Traverse Rate (X & Y-Axis)...................... 945 IPM
Rapid Traverse Rate (Z-Axis).......................... 590 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 25 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 212"x138"
Approximate Machine Height............................ 142"
Approximate Machine Weight............................ 31,000 LBS



CONDITION: Machine appears to be in Excellent Condition !
