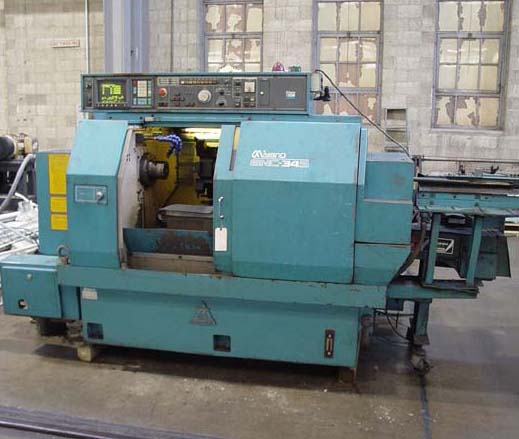

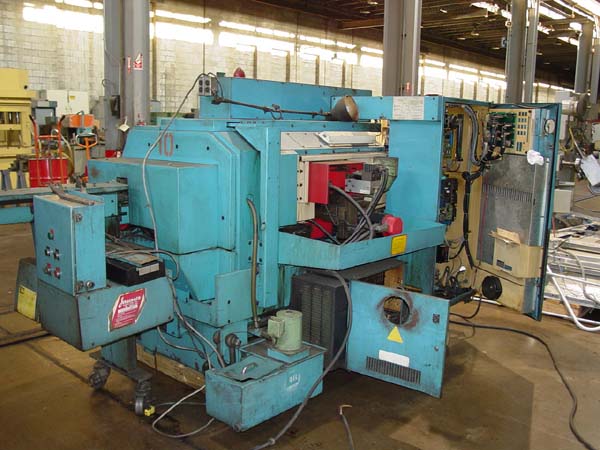

MIYANO BNC-34S CNC TURNING CENTER
                          Model BNC-34S, New 1991
                               Stock# K13595


EQUIPPED WITH:
Fanuc OT CNC Control with CRT, RS232 Port for DNC System, Spindle Load

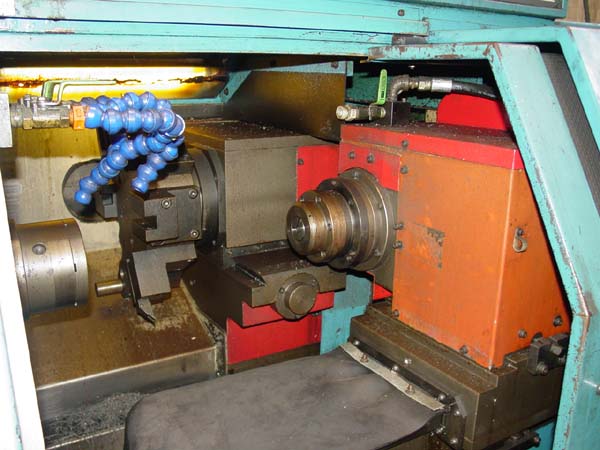

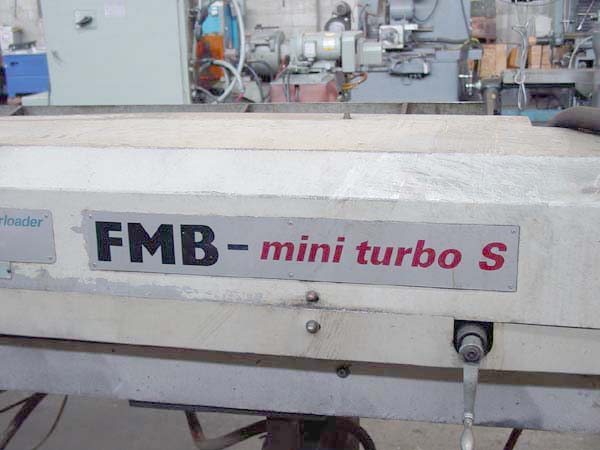

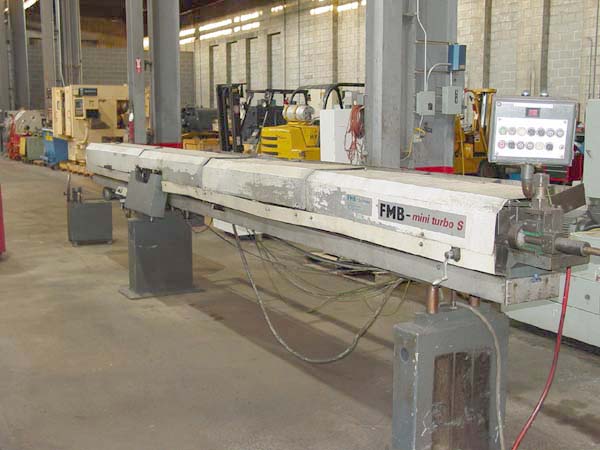

Meter, 6 Station Turret, Sub-Spindle, FMB Turbo S Magazine Type
Bar Feeder, Heavy Duty Slant Bed Construction, Chip Conveyor, Coolant
System, Tooling Package.



CATALOGUE SPECIFICATIONS:

Max Bar Capacity.......................................... 1-1/4"
Max Swing over the Cross Slide............................ 10.62"
Max Length Spindle Nose to Spindle Nose........... 20"
Max Turning Diameter...................................... 4-3/4"
Cross Travel (X-Axis)..................................... 3-7/8"
Longitudinal Travel (Z-Axis).............................. 11-3/8"
Number of Turrets......................................... 1
Turret Positions.......................................... 6
Spindle Speed Range....................................... 170-5000 RPM
Sub-Spindle Speed Range................................... 170-5000 RPM
Spindle Drive Motor....................................... 10 HP
Approximate Machine Dimension(w/o Barfeeder).............. 59" x 100"
Approximate Machine Height................................ 67"
Approximate Machine Weight................................ 6,200 LBS



CONDITION:  Machine Appears to be in Excellent Condition !
