CINCINNATI FALCON 400 CNC TURNING CENTER
           Model 400-1500, New 1996, Stock # K13598



EQUIPPED WITH:

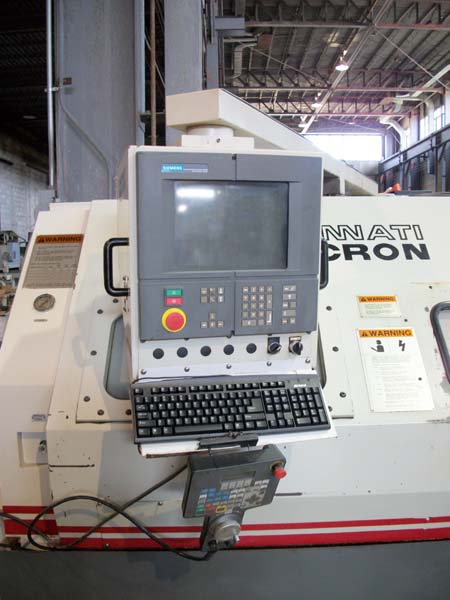

Acramatic 2100 PC-Based CNC Control with Color CRT, Milacron/Gibbs
Shop Floor Programming, 3.5" Floppy Disk Drive, Full Keyboard,
Heavy Duty Bed Mounted Tailstock, 5" Spindle Bore, 8 Position
Bi-Directional ID/OD Tool Turret, Turn-Thru Hydraulic Steady Rest, Thru-The-Tool Coolant, Coolant
System, and Chip Conveyor.

This machine would normally have a 15" Chuck but it was used with a face driver and has no chuck.



CATALOGUE SPECIFICATIONS:



Swing over Slant Bed .................................. 25.59"
Swing over Carriage ................................... 19.2"
Max Tailstock Position................................. 56"
Max Machinable Center Distance......................... 54"
Cross Travel (X Axis).................................. 10.6"
Longitudinal Travel (Z Axis)........................... 59.1"
Feed Range (Infinitely Variable)....................... .1 to 200 IPM
Rapid Traverse Rate ................................... 600 IPM
Number of Turrets...................................... 1
Number of Tool Positions............................... 8
Spindle Bore........................................... 5.00"
Bar Capacity........................................... 4.5"
Spindle Nose........................................... A2-11
Spindle Speed Range.................................... 23-2250 RPM
Spindle Drive Motor ................................... 30 HP
Electrics ............................................. 460/3/60 AC
Overall Machine Size .................................. 190"x83"x79"H
Approximate Weight..................................... 18,000 LBS



CONDITION: Appears to in Very Good Condition.
