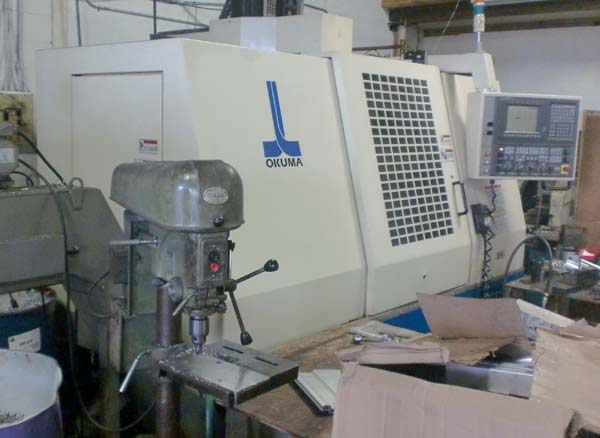

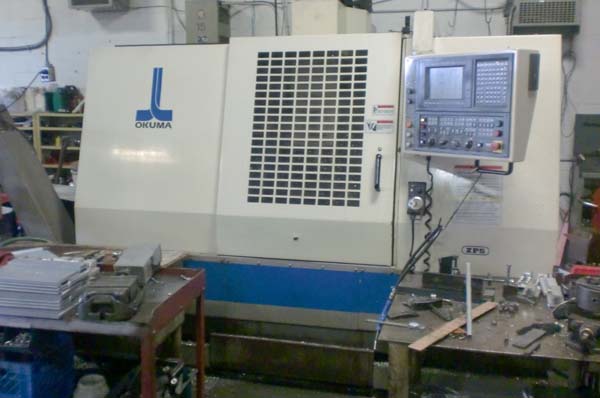

Okuma Cadet-Mate CNC Vertical Machining Center
Model Cadet Mate VMC4020, New 1999
Equipped with:
OSP 700M CNC Control
Coolant Tank and Pump
Rigid Tap

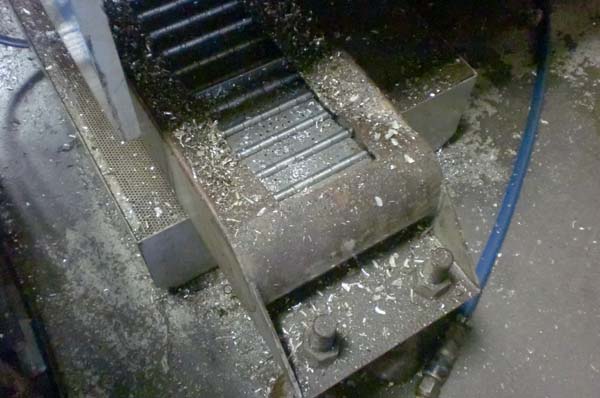

Chip Conveyor
All Available Manuals
Specifications:
Table size................................ 47" x 20"
Max weight of workpiece....... 1500
X-axis......................................... 40"
Y-axis........................................... 20"
Z-axis............................................ 20"
Rapid traverse............................ 787 IPM
Cutting feed rate.......................... 314 IPM
Number of tools....................... 20
RPM max................................. 8,000
Main motor HP......................... 15
Spindle nose to table min ....7.8"
Spindle nose to table max .....27.8"
Spindle center to column ......20"
Machine dimensions.............. L 162" W 135" H 136"
Machine weight .......................9680 lbs (aprox)
