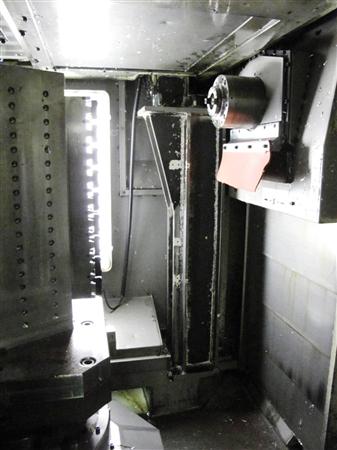

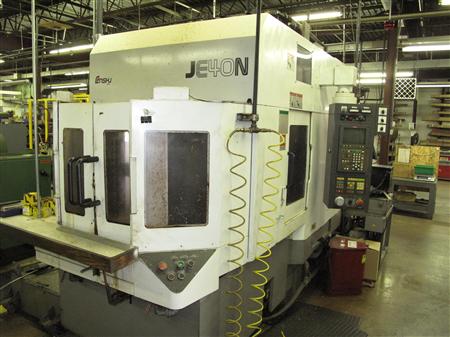

X-Axis
|
15.7"
|
|
Y-Axis
|
19.7"
|
|
Z-Axis
|
15.7"
|
|
Distance from Table Top to Spindle Nose
|
2 to 21.7” with Pallet
|
|
Distance from Table Center to Spindle
Nose
|
3.9” to 19.7”
|
|
Table Work Area Size
|
15.7” x 15.7”
|
|
Maximum Allowable Work Weight
|
880 Lbs
|
|
Shape of Table Top Surface
|
24-M16 Tap (5/8”-11 unc)
|
|
Minimum Index Angle of Table
|
1 Degree
|
|
Table Index Time
|
1.5 Sec per 90 Degrees
|
|
Spindle Speeds
|
100-10,000 RPM
|
|
Number of Spindle Speed Ranges
|
Stepless
|
|
Spindle Tape Hole
|
No 40
|
|
Spindle Bearing Inner Dia
|
2.6”
|
|
Rapid Feedrate (X, Y, Z)
|
1417 Inch/Min
|
|
Cutting Feedrate
|
0.04 to 393.7 Inch/Min
|
|
Jog Feedrate
|
0 to 157.5 Inch/Min (16 Steps)
|
|
Tool Shank Size
|
40 Taper
|
|
Magazine Tool Capacity
|
16 Tools
|
|
Maximum Tool Length
|
11.8”
|
|
Maximum Tool Weight
|
7 Kg
|
|
Automatic Tool Changer Capacity
|
30
|
|
Tool Selection Method
|
Shortcut Random
|
|
Tool Exchange Time
|
1 Sec Tool to Tool
|
|
Tool Exchange Time
|
3.4 Sec Chip to Chip
|
|
Number of Pallets
|
2
|
|
Pallet Exchange Method
|
Rotary
|
|
Pallet Exchange Time
|
6 Seconds
|
|
Spindle Motor High Speed
|
7.5/5.5 kW; Low Speed 5.5/3.7 kW
|
|
Power Supply
|
200/220 VAC; 50/60 Hz, 20 kVA
|
|
Machine Dimensions
|
99.6” x 135.8” x 105.9” H
|
|
Machine Weight
|
11,880 Lbs
|
