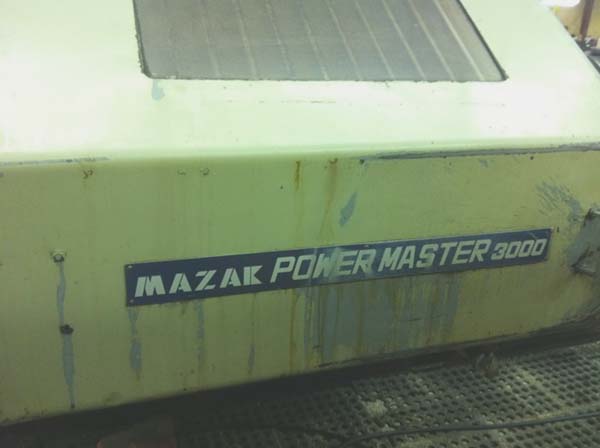

MAZAK POWERMASTER CNC TURNING CENTER
Model PowerMaster Universal 3000, New 1978, Rebuilt/Retrofit in 1998
Equipped With:
Retrofit/Rebuilt with Fanuc 21iT Control in 1998, All Axis Motors &
Spindle Drive Replaced
Both X & Z Axis Ballscrews were Reconditioned, 60 HP (DC) Spindle Motor
Rebuilt

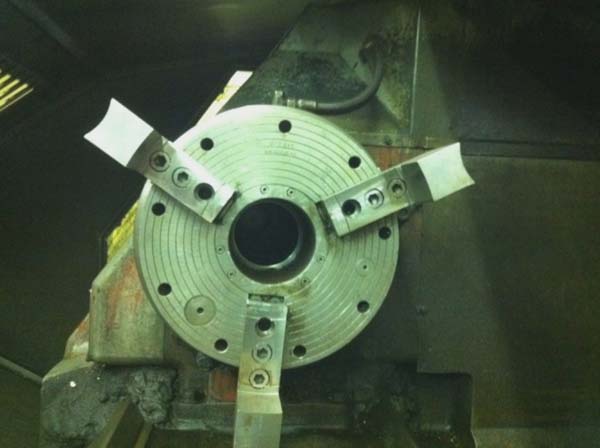

Entire Lube System Replaced, 16" SMW BB400/140 3 Jaw Air Chuck w/ 5.5"
Hole Thru Chuck
All Available Covers, RS 232 Port Interface, Hydraulic Tailstock
Catalogue Specifications:
Maximum Swing.................30"
Swing Over Cross Slide...........18"
Maximum Center Distance...............122.83"
Max Work weight-Chuck / Centers.............2200 lbs / 7700 lbs
X-Axis Travel...........................25.79"
Z-Axis Travel.................................123"
Spindle Nose/Bore/Bar Capacity...........A1-11"/4.625"/4.625"
Spindle Speed............................15 - 1200 RPM
Spindle Motor .............................30 Min. / Cont. - 60 HP / 40 HP
Turret Type (V + H) Two Turrets............8 + 4 Positions
Rapid Traverse Rates.................400 IPM
Tailstock Quill Stroke / Center...............6.25" / MT #5"
Machine Dimensions.....................230"x128"x78"
Machine Weight............................18,800 lbs.

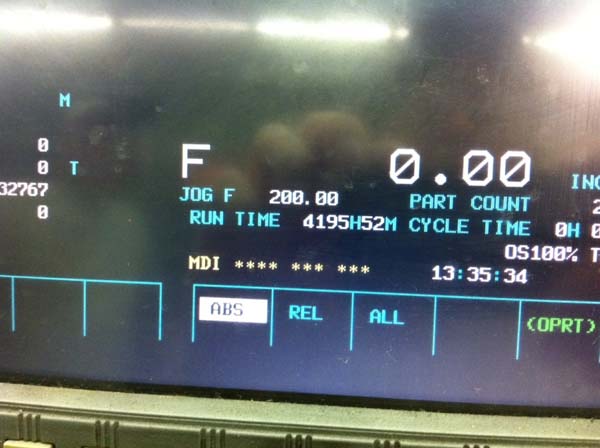

Condition: Appears to be in very good condition. ONLY 4195 Hours Since
Retrofit
