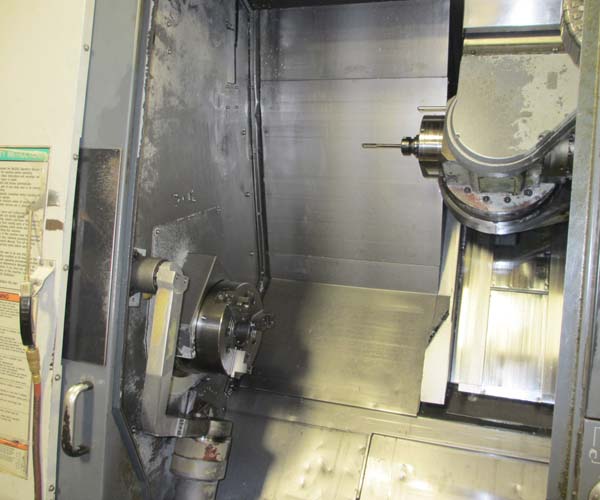

MAZAK CNC TURNING CENTER WITH LIVE TOOLING
, UNIVERSAL HEAD and Y AXIS
MODEL
INTEGREX 300Y, MFG: 2000, STK# K13623
EQUIPPED WITH
Mazatrol Fusion 640 Control, 10 Inch Chuck, EIA/ ISO
Option Package
Hydraulic Pressure Interlock, Chip Conveyor, Coolant
Thru Milling Head
Tool Eye, PCMCIA Interface, Milling Spindle
Synchronous Tapping
SPECIFICATIONS
Max.
Swing...............................................24.01 In
Swing Over
Carriage.................................15.35 In - 24.01 In
Max.
Cutting Length..................................41.2 In
X-Axis
Stroke............................................22.83 In
Y-Axis
Stroke............................................ 4.13 In
Z-Axis
Stroke............................................43.11 In
Spindle
Speed..........................................3500 RPM
B-Axis
Travel............................................225 Degrees
Spindle
Nose............................................A2-8 In
Spindle
Bore............................................3.46 In
Min.
Spindle Indexing Increment..............0.001 In
Rotary Tool
Speed Range.......................6000 RPM
Tool
Storage Capacity.............................40 Tools
Max. Tool
Diameter.................................3.54 In
With
Adjacent Pockets Empty...............4.72 In
Max Tool
Length.....................................11.81 In
Max. Tool
Weight...................................22 Lbs.
ATC Tool
Shank.....................................KM
Rapid
Traverse Rate
X-Axis...................................................1181 IPM
Y-Axis...................................................590 IPM
Z-Axis...................................................1181 IPM
C-Axis...................................................300 RPM
Main
Spindle Motor ( Cont/ 30 Min )......AC 30/ 35 HP
Rotary Tool
Motor ( 10 Min. Rating).......AC 20 HP
Machine
Height.....................................106.3 In
Floor Space
Requirements....................143.1 In x 88.6 In
Machine
Weight....................................18,942 Lbs.
