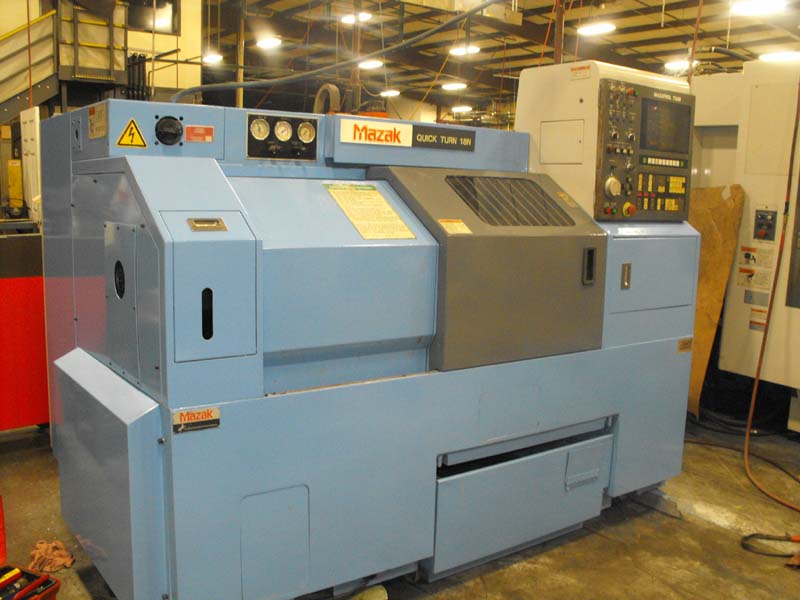

MAZAK QUICK TURN-18 CNC TURNING CENTER
                                     Model QT-18,  New 1993
                                           Stock# K13633



EQUIPPED WITH:

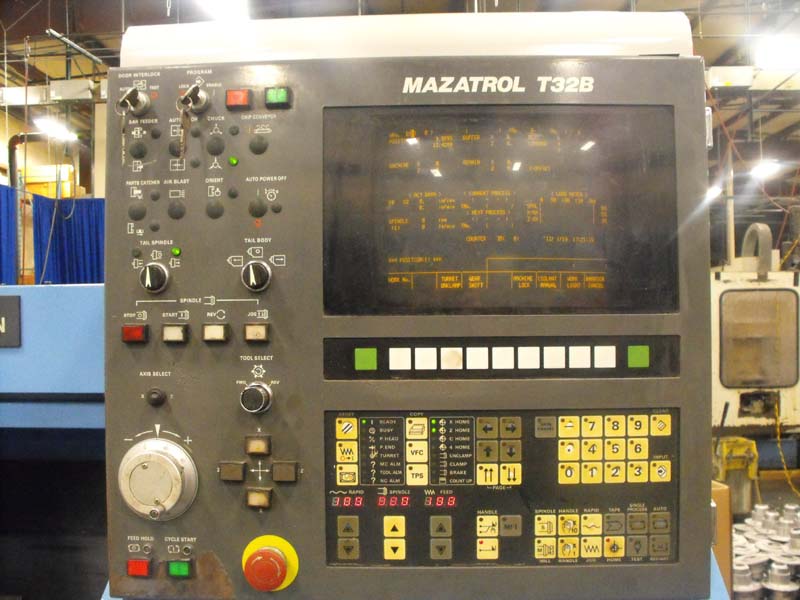

Mazak Mazatrol T-32 CNC Control, Multiple Part Program Storage, RS-232
Port, Mazatrol Conversational Programming, 10" 3-Jaw Chuck, 12 Position
Tool Turret, Tool Eye Tool Setter, Programmable Tailstock, Chip Pan and
Coolant System.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 17.32"
Max Swing Over the Cross Slide.......................... 11"
Max Tailstock Position.................................. 19.69"
Standard Chuck Size..................................... 10"
Cross Travel (X-Axis)................................... 7.09"
Longitudinal Travel (Z-Axis)............................ 20.78"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 1191 IPM
Rapid Traverse Rate (Y-Axis)............................ 1191 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 36-3600 RPM
Spindle Horsepower...................................... 22 HP
Approximate Machine Dimensions.......................... 117" x 82"
Approximate Machine Height.............................. 72"
Approximate Machine Weight.............................. 10000 LBS



CONDITION: Machine Appears to be in Very Good Condition !
