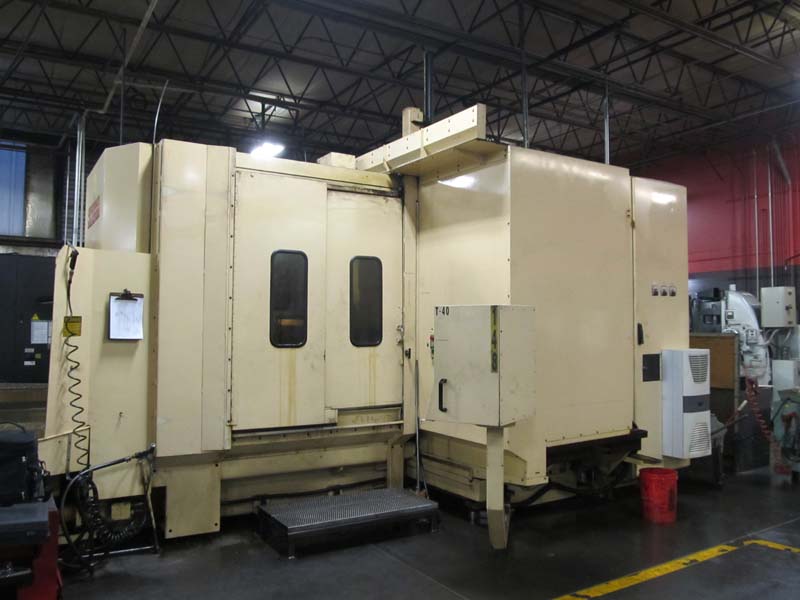

CINCINNATI T-40 CNC HORIZONTAL MACHINING CENTER
                        New 1990, Stock # K13635



EQUIPPED WITH:

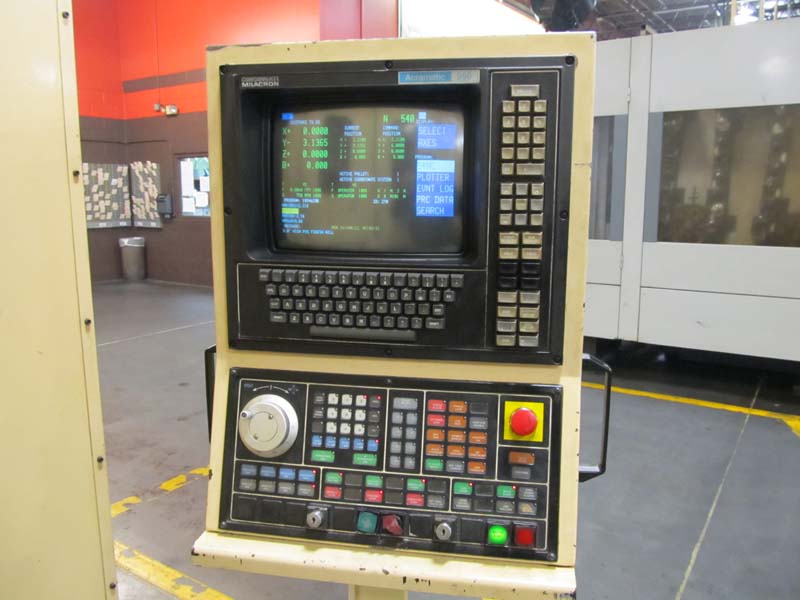

Acramatic 950 CNC Control with Color CRT, 3-1/2" Disk Drive,

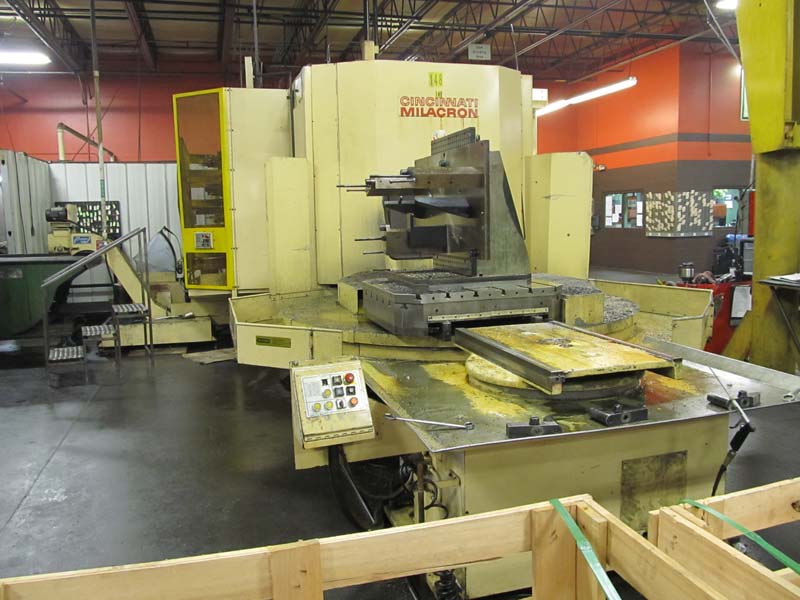

Multiple Program Storage, Automatic Pallet Changer with Load/Unload

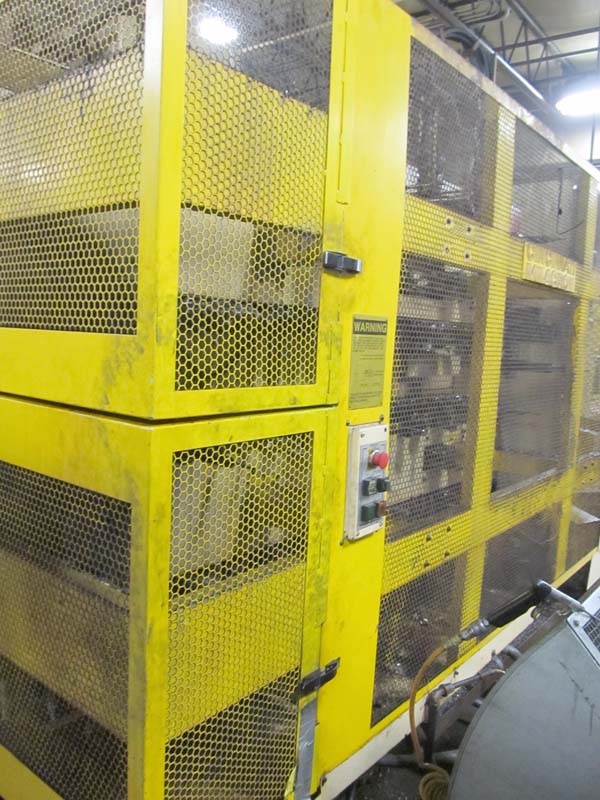

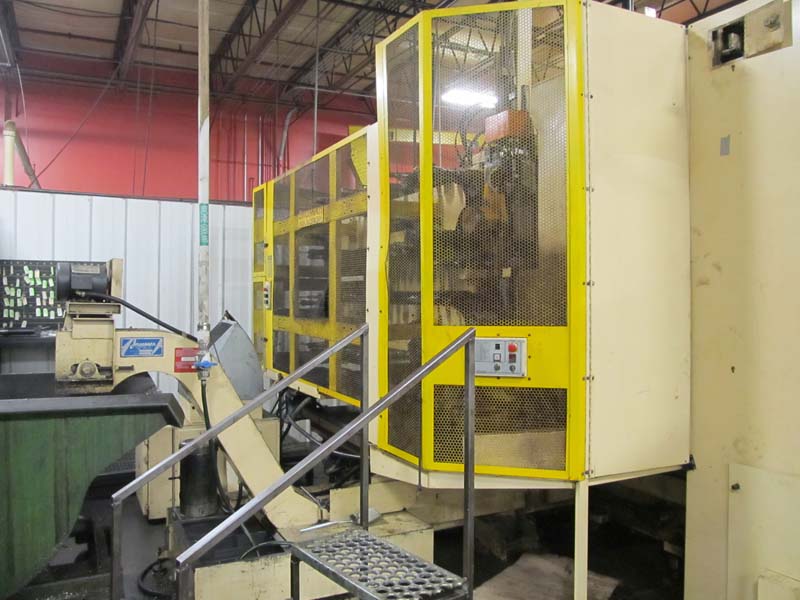

Station, Two 39.3" x 39.3" Pallets, 90 Station Automatic Tool Changer,

Chip Conveyor, Thru-the-Spindle Coolant System.



CATALOGUE SPECIFICATIONS:



Longitudinal Table Travel (X-Axis)................... 60"
Vertical Travel (Y-Axis)............................. 60"
Head Cross Travel (Z-Axis)........................... 48"
Pallet Dimensions.................................... 39.3" x 39.3"
Maximum Pallet Load.................................. 13,000 LBS
Number of Pallets.................................... 2
Feed Rate, All Axes.................................. .1-600 IPM
Rapid Traverse, All Axes............................. 600 IPM
Spindle Horsepower................................... 50 HP
Spindle Speed Range.................................. 30-6000 RPM
Spindle Taper........................................ #50 CAT
Number of Tool Positions............................. 90
Electrics ........................................... 460/3/60
Approximate Machine Dimensions....................... 297" x 315"
Approximate Machine Height........................... 158"
Approximate Machine Weight........................... 62,000 LBS



CONDITION:  Appears to be in Excellent Condition !
