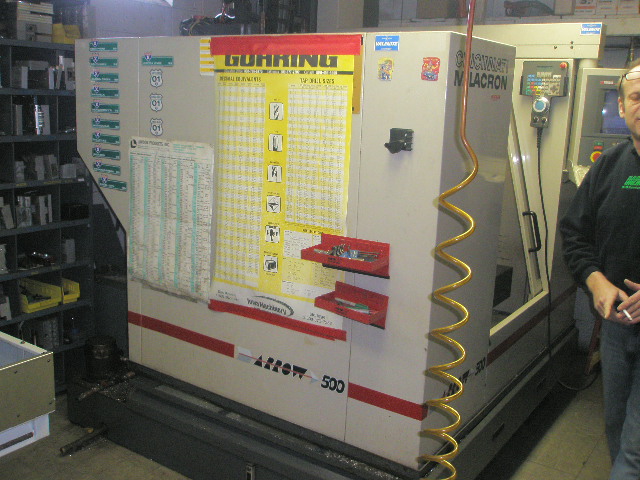

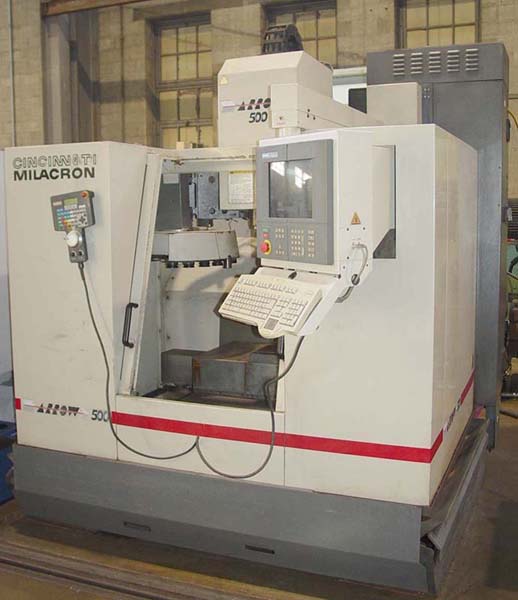

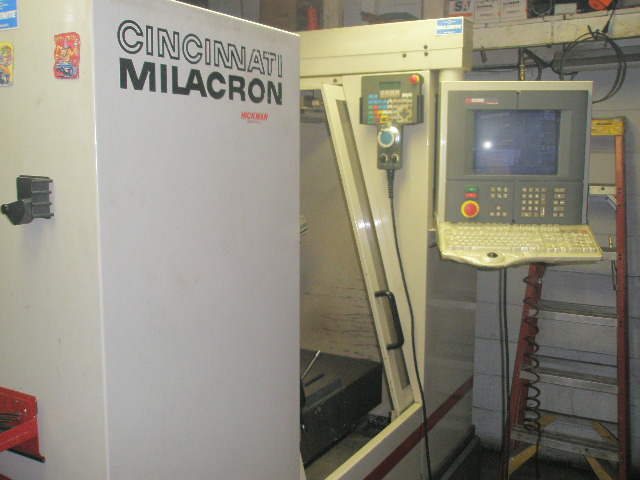

CINCINNATI ARROW-500 CNC VERTICAL MACHINING CENTER
New 1996, Stock# K13636

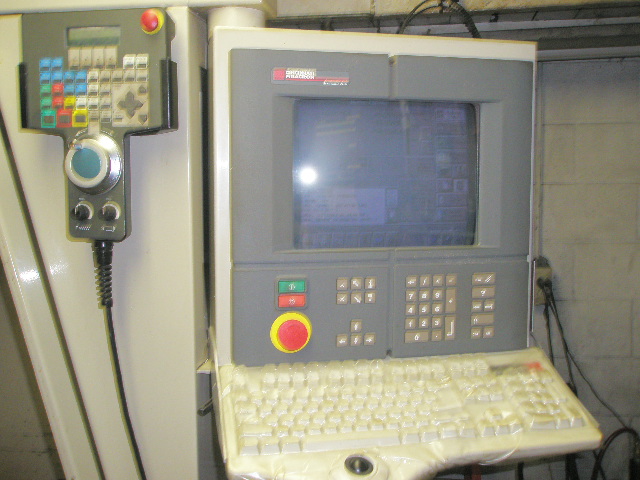

Acramatic 2100 CNC Control w/ Color CRT (P.C. Based),
Hand Held
Pendent, Rigid Tapping, 21 Station Automatic Tool Changer, Full
Coolant
Enclosure, Keyboard, Spindle Load Meter, Chip and Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel
(Longitudinal)............................... 20"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 20"
Table Working Surface................................. 27.5"x20.5"
Table Work Load Capacity.............................. 770 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Taper......................................... #40 CAT
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 393 IPM
Rapid Traverse X & Y.................................. 787 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 79" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 8,820 LBS
CONDITION: This Machine Appears to be in Very Good
Condition !
