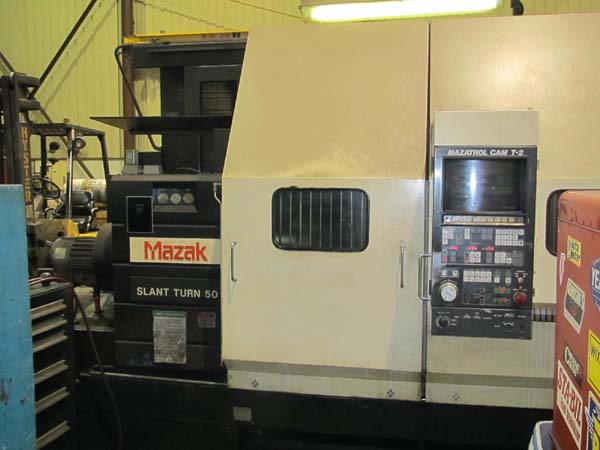

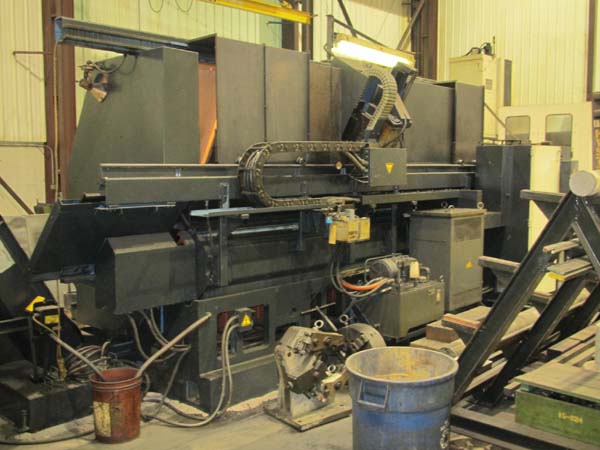

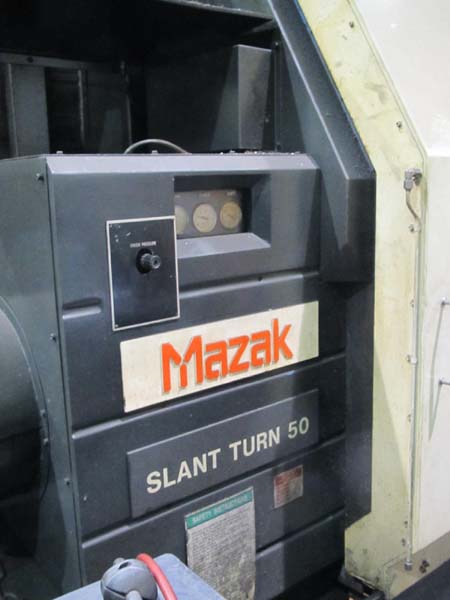

Mazak Slant Turn ST50-2000U Slant Bed CNC Lathe
Date of Mfg: 1987
Serial Number: 75855

EQUIPPED WITH:
MAZAK Maztrol T2 CNC Control, 15" 3-Jaw Hydraulic Chuck

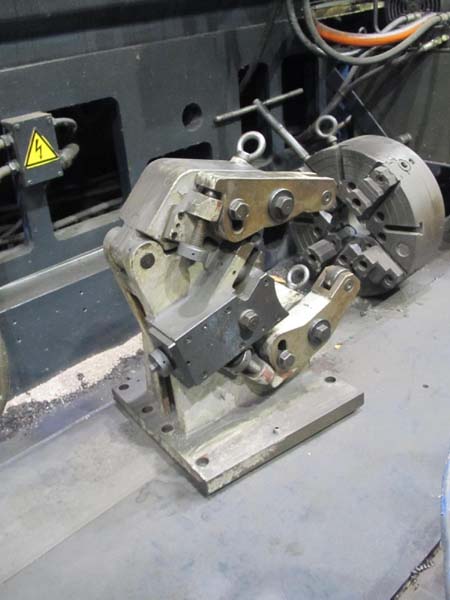

Tailstock, Steady Rest

SPECIFICATIONS:
CNC Control .......................... Mazatrol T2
Maximum Swing ........................ 31.75"
Maximum Swing Over Carriage .......... 21.5"
Maximum Machinable Length ............ 80"
Spindle Thru Hole .................... 4"
Bar Capacity ......................... 3.5"
Spindle Speed ........................ 4 - 1600 rpm
Spindle Motor ........................ 50 HP
Max. Weight of Workpiece ............. 4,400 lbs. with tailstock
                                       880 lbs. chuck only
Chuck (3 Jaw) ........................ 15"

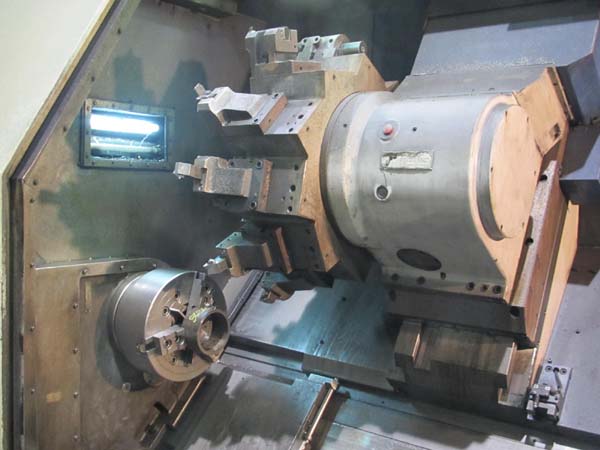

Turret ............................... 15 position
Travels:
 X Axis .............................. 26"
 Z Axis .............................. 62"
Traverse Rate:
 X Axis .............................. 475 ipm
 Z Axis .............................. 640 ipm

Machine Dimensions (approx.) 278" L x 142" W x 107" H
Machine Weight (approx.) 22,000 lbs.
