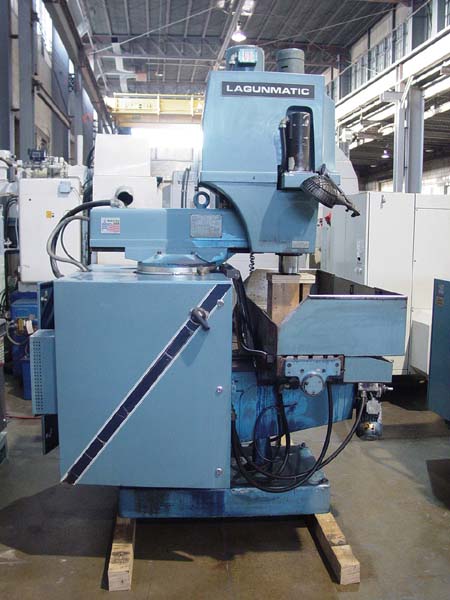

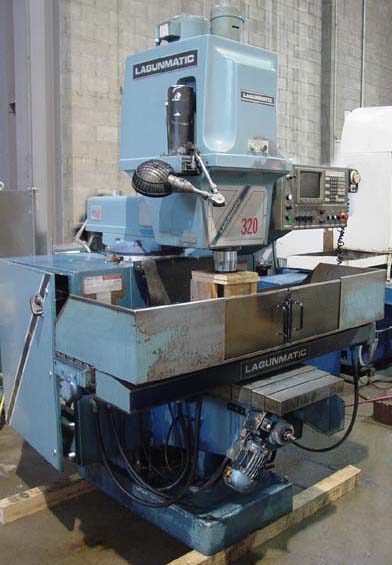

LAGUN LAGUNMATIC 320 CNC VERTICAL MILL
                       Model 320, New 1993

EQUIPPED WITH: Delta Dynapath 10 CNC Control w/ CRT, 3-Axis CNC Control,

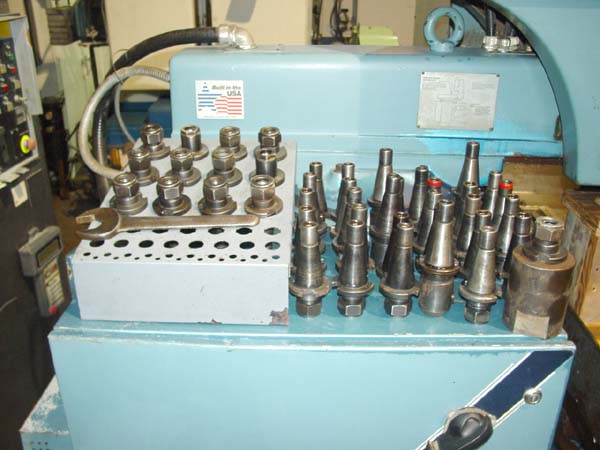

Power Drawbar, Way Covers, 40 Taper Tooling, Vise.

CATALOGUE SPECIFICATIONS:



Table Working Surface................................ 11" x 58"
Table Load Capacity.................................. 1000 LBS
Longitudinal Travel (X-Axis)......................... 32"
Cross Travel (Y-Axis)................................ 14"
Vertical Travel (Z-Axis) Spindle..................... 6.5"
Vertical Travel (Z-Axis) Knee (Manual)............... 16"
Maximum Clearance Table Top to Spindle Nose.......... 18.25"
Spindle Taper........................................ 40
Feed Rates, All Axes................................. 0.1 to 250 IPM
Rapid Traverse Rate, All Axes........................ 350 IPM
Spindle Speeds Range................................. 55-4250 RPM
Approximate Machine Dimensions....................... 105" x 81"
Approximate Machine Height........................... 96"
Approximate Machine Weight........................... 5,400 Lbs.



CONDITION:  Machine Appears to be in Excellent Condition !
