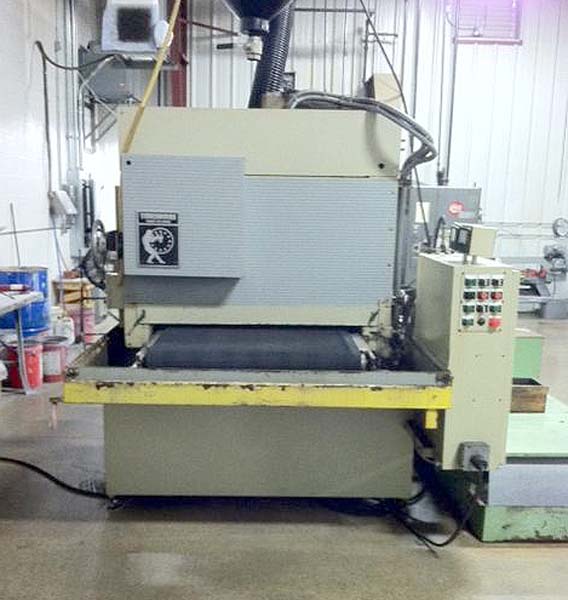

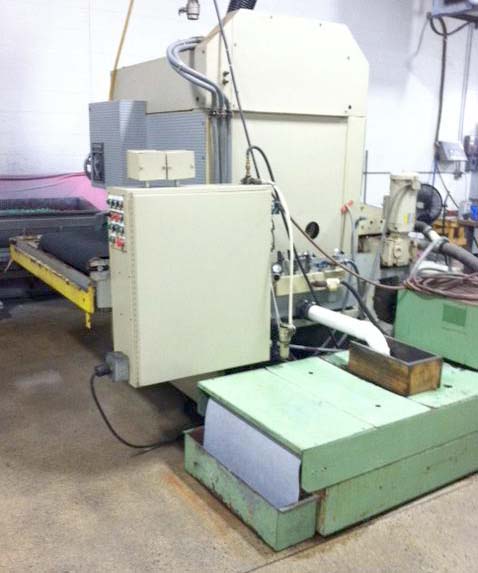

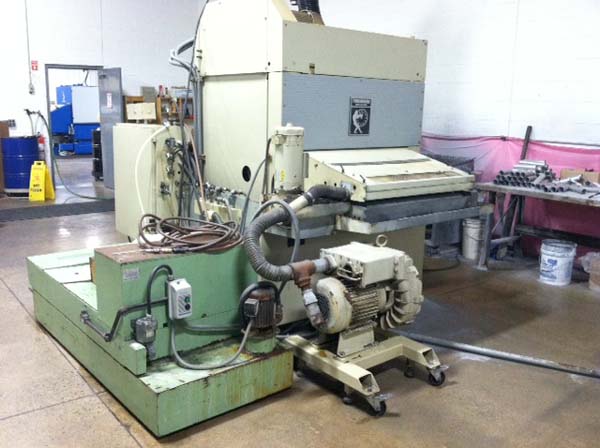

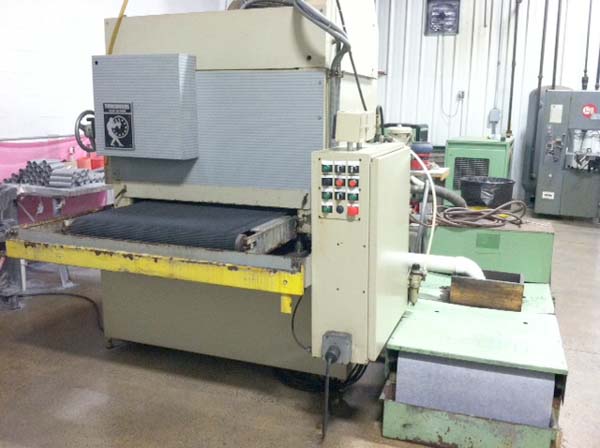

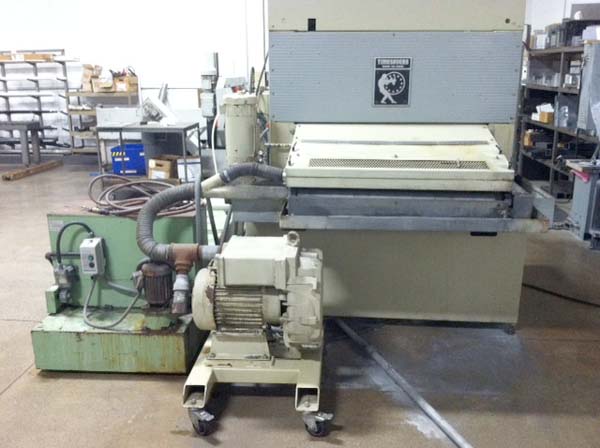

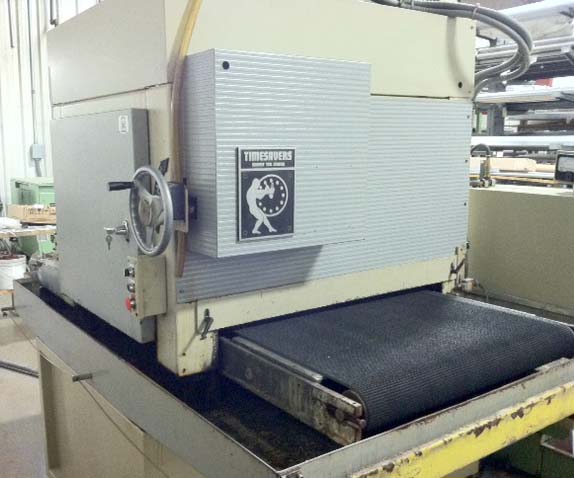

37" TIMESAVER DUAL HEAD ABRASIVE WET BELT
                   GRINDING, DEBURRING, & FINISHING MACHINE
                   Model 137-2HDCMW, New 1988, S/N 18083
                                Stock# K13642



EQUIPPED WITH:

Dual Head Design, Posi-Trak Solid State Belt Sensing Unit,
Abrasive Belt Mistract Sensors, 30 HP Abrasive Belt Head, 7.5 HP
Abrasive Brush Head, Oscillation on Abrasive Brush Head, Infinitely
Variable Conveyor Feed, Totally Enclosed Grinding/Deburring/Finishing
Head, Built-in Air Knife Part Dryer, Coolant Filter System.




CATALOGUE SPECIFICATIONS:
Maximum Part Width...................................... 36.5"
Maximum Width of Belt................................... 37"
Standard Belt Size...................................... 37" x 60"
Maximum Part Thickness.................................. 8"
Minimum Part Thickness.................................. 0"
Conveyor Feed Rate (Infinitely Variable)................ 15-45 FPM
Abrasive Belt Speed..................................... 3000 SFPM
Main Drive Motor........................................ 30 HP
Electrics............................................... 230/440/3/60
Approximate Machine Dimensions.......................... 82" x 63"
Approximate Machine Height.............................. 81"
Approximate Machine Weight.............................. 6,500 LBS



CONDITION: Appears to be in Very Good Condition !
