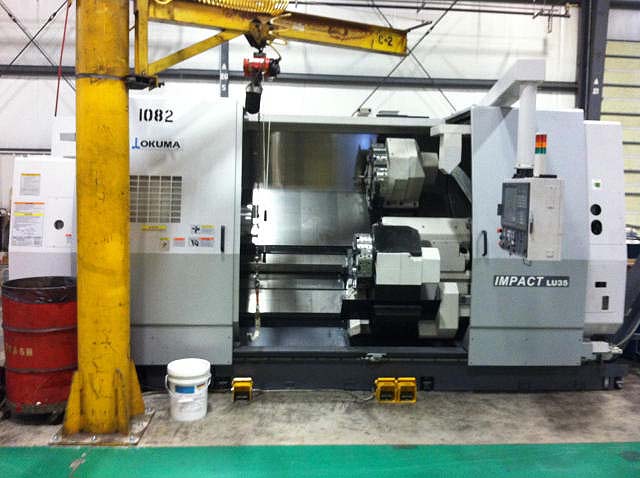

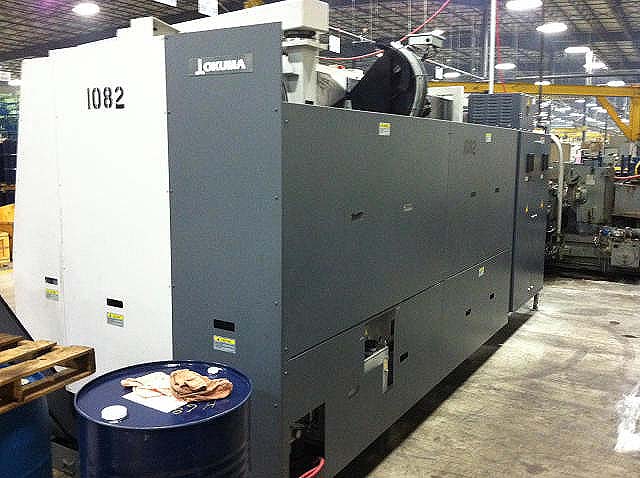

OKUMA LU35 4-Axis CNC TURNING CENTER

Mode 2SC1500, New 2010



EQUIPPED WITH:

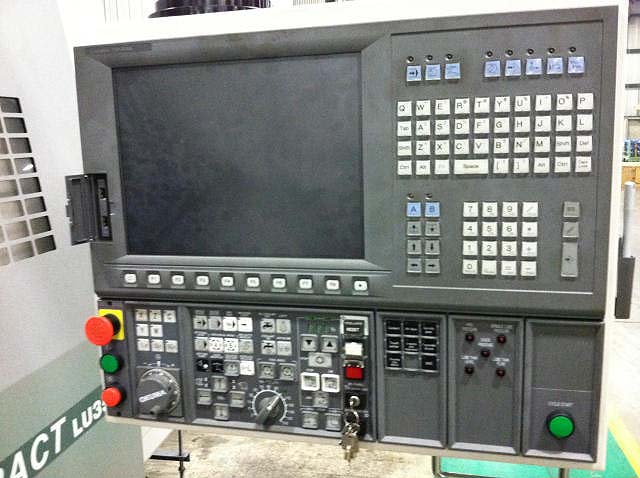

Okuma OSP P-200 CNC Control, Big Bore A2-11 Spindle with 15" Chuck Package
Auto Tow Along Tailstock, Quill Adv/Ret with Conform, Chuck Air Blow
Tailstock Air Blow, Turret Air Blow, Auto Gauging, Renishaw LP2, Touchsetter M
Transformer, Multi-Tap, 50/60 Hertz,Portable Pulse Handle with E-Stop
Ext Prog Sel C2 BCD,Auto Door Both with Dual (1500),Spindle Orientation, Electric Type

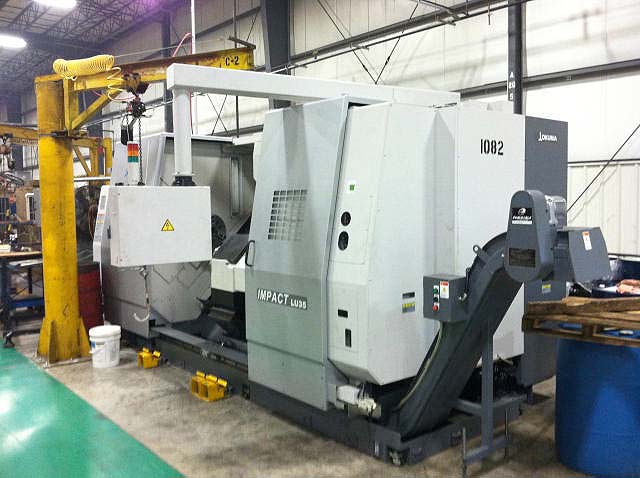

Spare M-Codes 4 Sets, MT#5 live quill hyd. Tailstock, Coolant System and Chip Conveyor.

CATALOUGE SPECIFICATIONS:

Swing Over Bed............. 29.13"
Swing Over Saddle............. 18.90"
Max Turning Dia-Upper .........21.65"
Max Turning Dia-Lower ..........14.17"
Travel XA-Upper ............14.96"
Travel XB-Lower ...............9.84"
Max ZA Travel-Upper ........61.81"
Max ZB Travel-Lower .........60.04"
Max Work Length-Upper.......... 59.05"
Spindle Motor Rating .........50/40 hp
Rapid Traverse Rate (X / Z)....... 787 IPM / 591 IPM

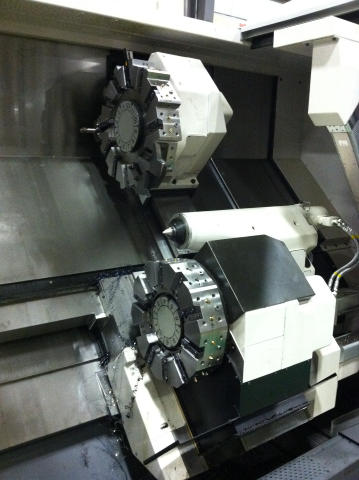

Turret:Tool - Upper / Lower.......... 12 / 10 Tools
Tailstock:Quill diameter ?........... 4.72 in
Quill ID..................................... MT No. 5
Quill stroke ................................6.69 in.
Machine Height .................. 101.97 in
Req. floor space W x D ........204" x 101"
Machine weight...................... 30,800 Lbs

CONDITION:  Excellent ! Only 109 Cutting Hours.
