MAZAK SUPER QUICK TURN 28MS CNC TURNING CENTER

With Live Tooling and Sub-Spindle

Model SQT28MS, NEW 1995, Stock# K13656



EQUIPPED WITH:

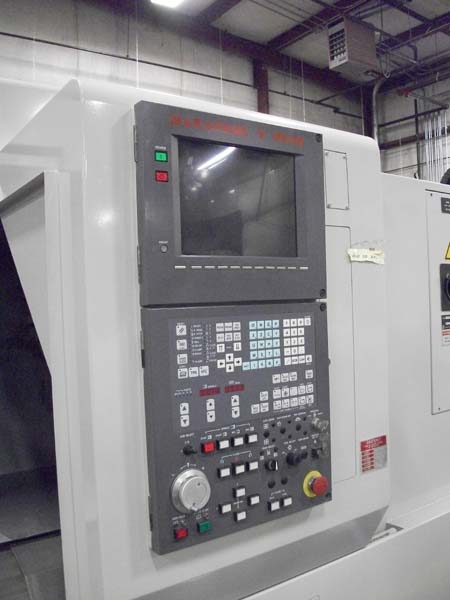

 MAZATROL T-PLUS CNC CONTROL , 12" HYDR. CHUCK ON MAIN SPINDLE,  SUB SPINDLE WITH 5 DEGREE INDEX,  8" HYDR. CHUCK ON SUB SPINDLE, C AXIS MILLING CAPACITY, CHIP CONVEYOR, COOLANT SYSTEM, TOOL SETTER



CATALOGUE SPECIFICATIONS:
Max. Swing          22.05"
Max. Machining Diameter     16.14"
Max. Machining Length        47"
Spindle Bore Diameter          3.46"
Max. Bar Work Diameter       3.03"
Spindle Speed                    35 to 3500 RPM
X Axis Stroke                  9.625"
Z Axis Stroke                 47.75"
Second Spindle Speed  180 to 3000 RPM
Second Spindle Rapid Traverse Rate    708 IPM
Turret Tool Capacity       (12 x 2) 24
Turret Index Time (1 Step / Full Step)       0.9 Sec / 2.2 Sec
Rotary Tool Speed Range            120 to 3000 RPM
Rapid Traverse Rate. X & Z Axis             708 / 945 IPM
Rapid Traverse Rate C Axis           100 RPM
Main Spindle Motor, 30 Min. Rating       29 HP A.C.
Second Spindle Motor, 10 Min.       10 HP A.C.
Rotary Tool Motor, 10 Min.              10 HP A.C.
Approx. Machine Weight               15,400 LBS
Approx. Machine Dimensions       160" (LR) x 78" (FB) x 84" (H)


CONDITION: Appears to be in Very Good Condition !
