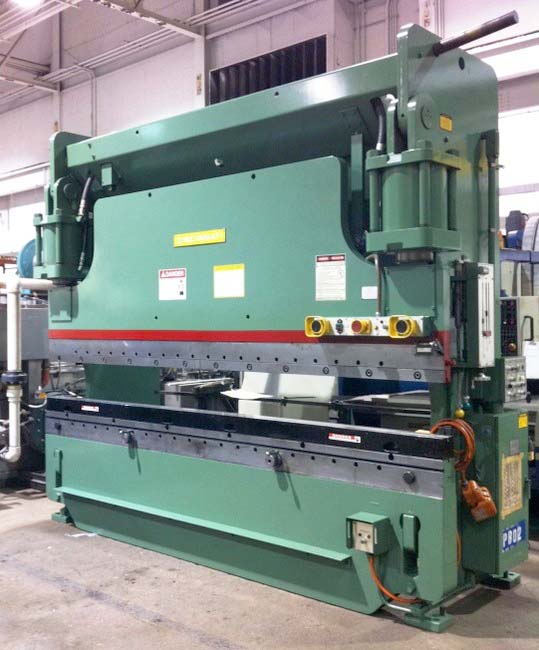

230 TON x 12' CINCINNATI 230CB10 HYDRAULIC PRESS BRAKE
|
Serial No. 47204
New - October, 1991
EQUIPPED WITH

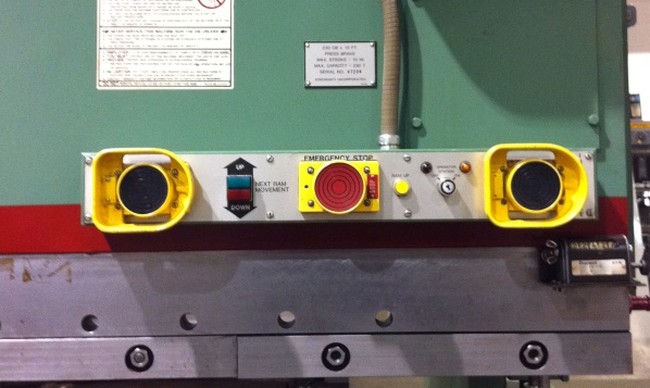

Operator Control Station With Dual Palm Buttons
Stroke Control Cam
Universal Die Holder
Foot Pedal & Control
Tonnage Control
Power Ram Adjustment
Ram Tilt Adjustable Controls
Front Operated Back Gauge
Top/Bottom Stop
Flush Mounted
SPECIFICATIONS
Overall Length of Bed & Ram 12'
Distance Between Housings 10' 6"
Open Height 17"
Max. Stroke 10"
Throat 8"
Speeds
Low 14 IPM
Medium 49 IPM
High 101 IPM
Return 95 IPM
Bed
Height 36"
Motor 30 HP
Electrics 3 Phase/60
Cycle/ 230/460V
Approximate Dimensions 162" x 54" x 133"H
Approximate Weight 28,500 Lbs
|
