MORI-SEIKI DL-150 CNC Turning Center with Twin Spindles and Twin Turrets

Stock Number K13658

Mori Seiki DL-150 Dual Spindle CNC Lathe Turning Center for sale

v Mori Seiki DL-150 Dual Spindle CNC Lathe Turning Center for sale

Mori Seiki DL-150 Dual Spindle CNC Lathe Turning Center for sale

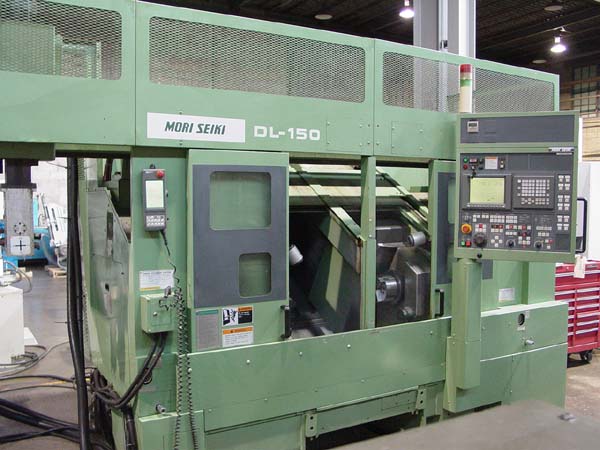

ACTUAL PHOTOS

MORI SEIKI DL-150 DUAL SPINDLE, DUAL TURRET CNC TURNING CENTER
Model DL-150, S/N 241, New 8/1997, Installed 1998
Stock# K13658

EQUIPPED WITH:
Mori MSC518 (Fanuc 16TB) CNC Control, (2) 10 HP Opposed Spindles,
(2) 12 Position Turrets, (2) Kitagawa B-206 6" 3-Jaw Power
Chucks, Mori Overhead Gantry Loader Model LG03c with MSC-801 Control,
Chip Conveyor, Coolant System.

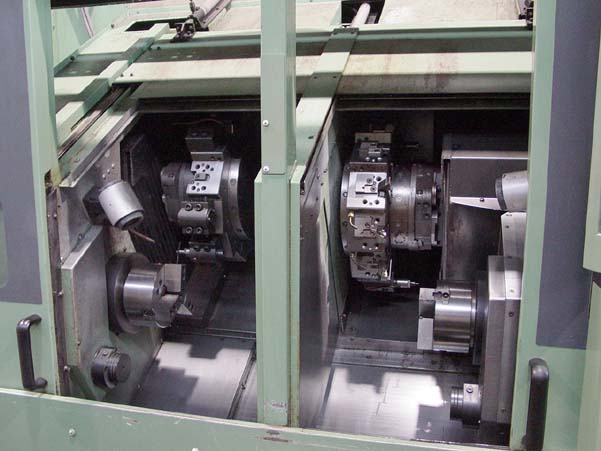

NOTE: The Mori Seiki DL Series Turning Center Features Two Inline
Opposing Spindles and Two Tool Turrets, each Addressing its Own
Spindle. This Machine is Designed for Completing First and Second
Turning Operations in One Actual Loading. A Workpiece May be Loaded to
the First Spindle, Then Turned, Then Automatically and Internally
Transferred to the Second Spindle for Second Operation Turning. Overhead
Gantry Loader can Easily be turn on and off for Hand Loading Operation.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed..................................... 11"
Maximum Turning Diameter (each Spindle)................ 7.8"
Maximum Turning Length (each Spindle).................. 7.8"
Standard Chuck Size.................................... 6"
Cross Travel Turret 1 (X1-Axis)........................ 9.3"
Longitudinal Travel Turret 1 (Z1-Axis)................. 9.8"
Cross Travel Turret 2 (X2-Axis)........................ 9.3"
Longitudinal Travel Turret 2 (Z2-Axis)................. 9.8"
Headstock 2 Travel (W1-Axis)........................... 30.9"
Rapid Traverse Rate (X1, X2 Axes)...................... 709 IPM
Rapid Traverse Rate (Z1-Axis).......................... 945 IPM
Rapid Traverse Rate (Z2-Axis).......................... 1181 IPM
Number of Turrets...................................... 2
Tool Positions......................................... 12 each turret
Bar Capacity .......................................... 1.75"
Spindle Nose........................................... A2-5
Spindle Speed Range.................................... 30-5000 RPM
Spindle Horsepower..................................... 10 HP
Approximate Machine Dimensions................ 126" x 77"
Approximate Machine Height............................. 70"
Approximate Machine Weight............................. 12,320 LBS

CONDITION: Appears to be in Excellent Condition!
