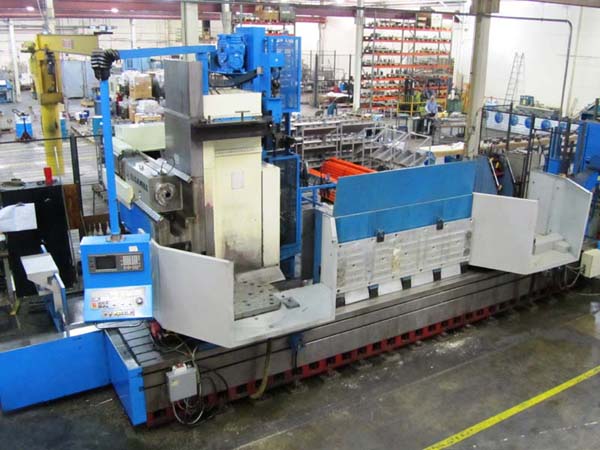

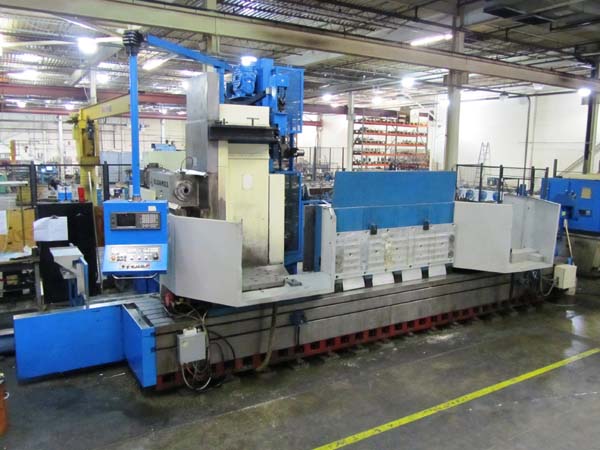

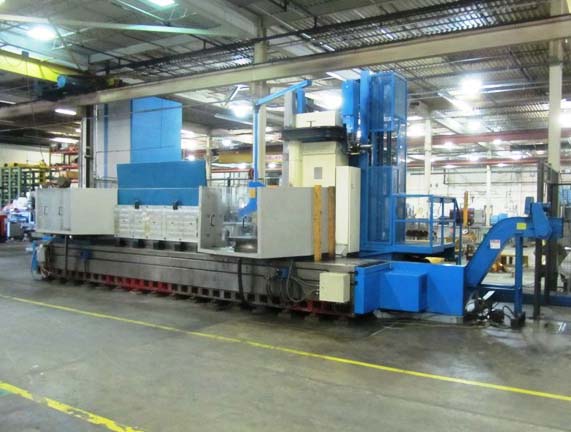

BUTLER ELGAMILL CNC HORIZONTAL MACHINING
CENTER
Model HE4000, S/N 28457, New 1996
Stock # K13660
EQUIPPED WITH:

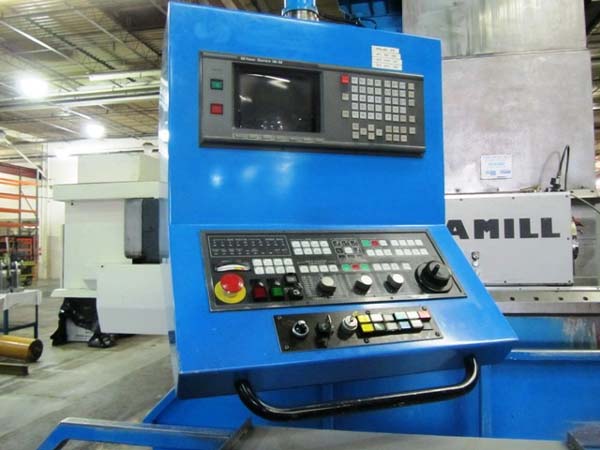

FANUC 18M CNC Control, Multiple Part Program
Storage, RS-232 Port,
Traveling Column Design allows for Virtually Unlimited Weight Load

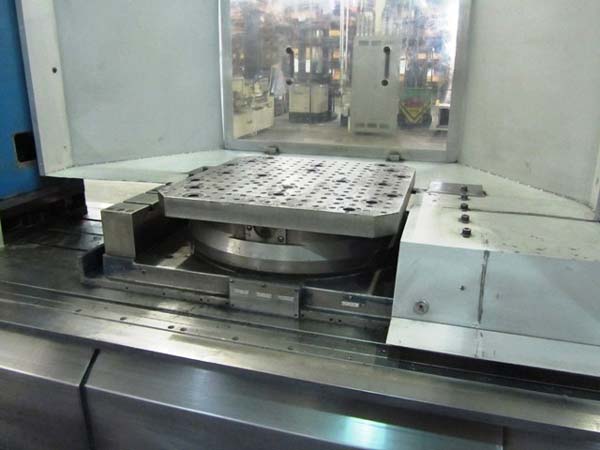

Capacity, (2) `Add-on' 30" Programmable CNC Rotary Tables with 1 Degree

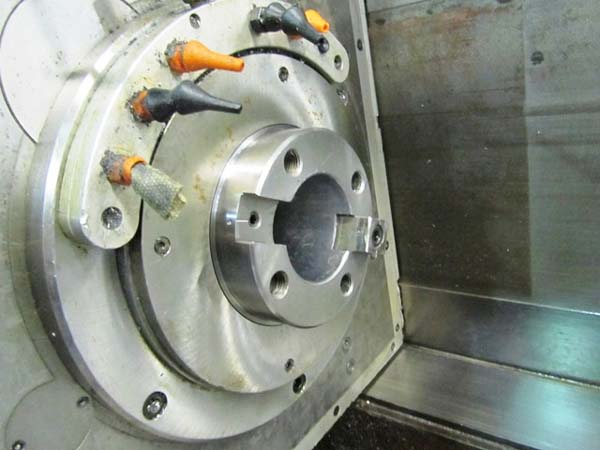

Indexing, 60 Station Automatic Tool Changer, Heavy Duty 40HP 50 Taper
Spindle, Centralized Lubrication, Chip Conveyor, Coolant System.

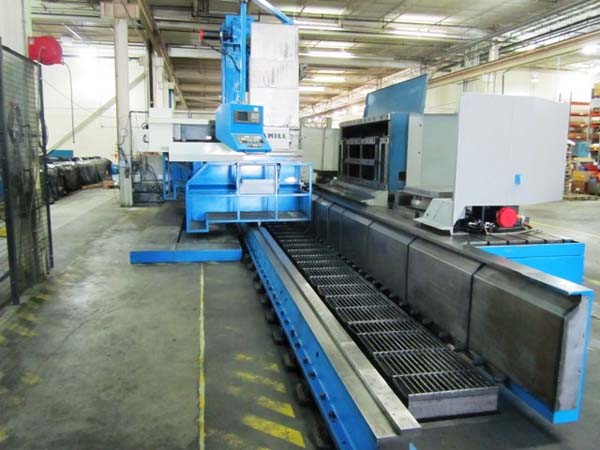

Note: This Machine has a Huge 40.56" x 315"
T-Slotted Working
Area For Claming Parts. It is also set-up with (2) Work Zones, (2)
Rotary Tables and Guarding to be used much like a 2 Pallet Machine.
CATALOGUE SPECIFICATIONS:
Table
Size.............................................. 40.56" x 315"
Longitudinal Travel (X Axis)............................ 243.7"
Vertical Travel (Y Axis)................................ 65.75"
Cross Travel (Z Axis)................................... 42.34"
Table Load Capacity..................................... 300,000 LBS
Rotary Table Size....................................... 30"
Tool Changer Capacity................................... 60
Feed Rate, All Axes..................................... .02 to 100 IPM
Rapid Traverse, All Axes................................ 500 IPM
Spindle Horsepower...................................... 40 HP
Spindle Speed, Range.................................... 10 - 4000 RPM
Spindle Taper........................................... 50
Electrics .............................................. 460/3/60
Approximate Machine Dimensions.......................... 390" x 191"
Approximate Machine Height.............................. 125"
Approximate Machine Weight.............................. 50,000 LBS
CONDITION: This Machine Appears to be in
Excellent Condition!
