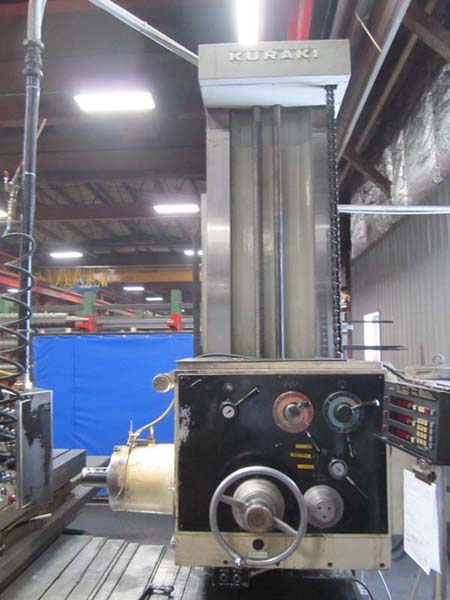

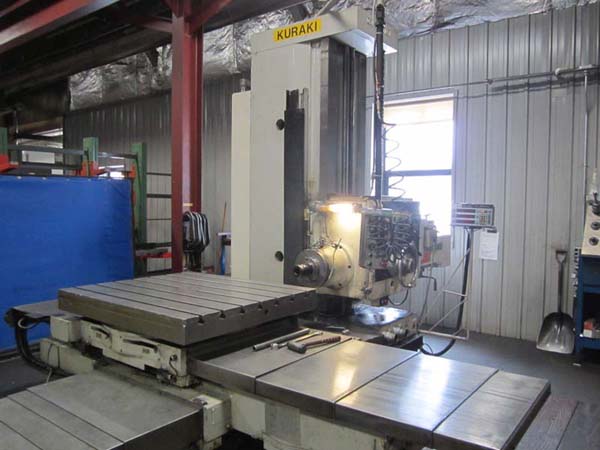

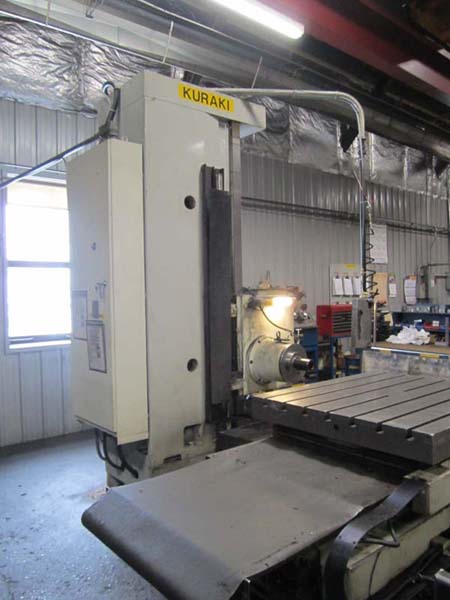

4" KURAKI TABLE TYPE HORIZONTAL BORING MILL
                Model KBT-1003W, New 1979 Stock# K13663



EQUIPPED WITH:

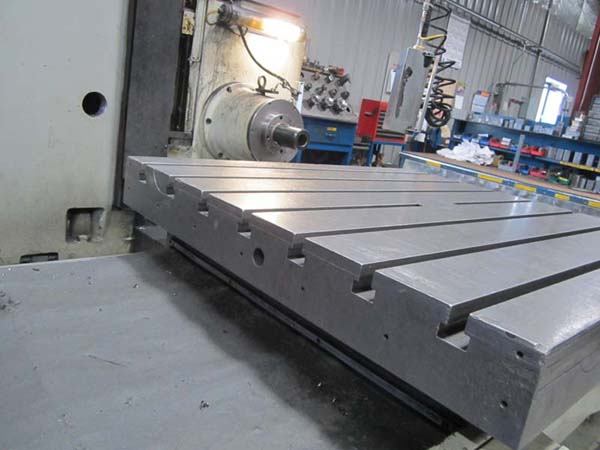

3 Axis Digital Readouts,41" x 47" Built-in Rotary Table,
Operators Pendent Control, Power Draw Bar, Power Rotating

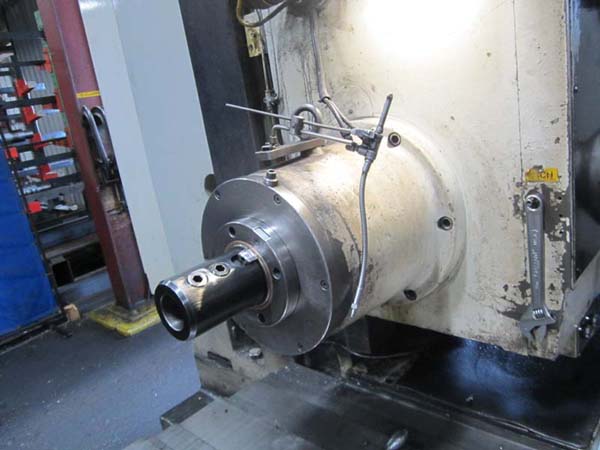

Table, Telescoping Steel Way Covers, 15 HP 50 Taper Spindle.



CATALOGUE SPECIFICATIONS:



Spindle Diameter................................... 4"
Table Size......................................... 41" x 47"
Table Load Capacity................................ 8,800 lbs
Table Cross Travel (X-Axis)........................ 59"
Vertical Travel Above Std Machine Table (Y-Axis)... 49"
Spindle (Quill) Travel(Z-Axis)..................... 27"
Saddle Longitudinal Travel (W-Axis)................ 47"
Spindle Taper...................................... #50
Spindle Horsepower................................. 15 HP
Spindle Speeds .................................... 17 to 1200 RPM
Electrics.......................................... 460/3/60
Approximate Machine Dimensions..................... 208" x 140"
Approximate Machine Height......................... 123"



CONDITION:  This Machine Appears to be in Excellent Condition!
